Siemens SINUMERIK 828D Service Manual

Service cases - hardware
4.7 Installing SINAMICS components
Hardware and Software
116 Service Manual, 03/2011, 6FC5397-5DP40-0BA0
4.7.2 Protective conductor connection and shield support
Shield support and protective conductor connection
It is always advisable to use shielded wiring for the digital inputs and outputs.
DANGER
If the shielding procedures described and the specified cable lengths are not observed, the
machine may not operate properly.
NOTICE
Only use screws with a permissible insertion length of 4-6 mm.

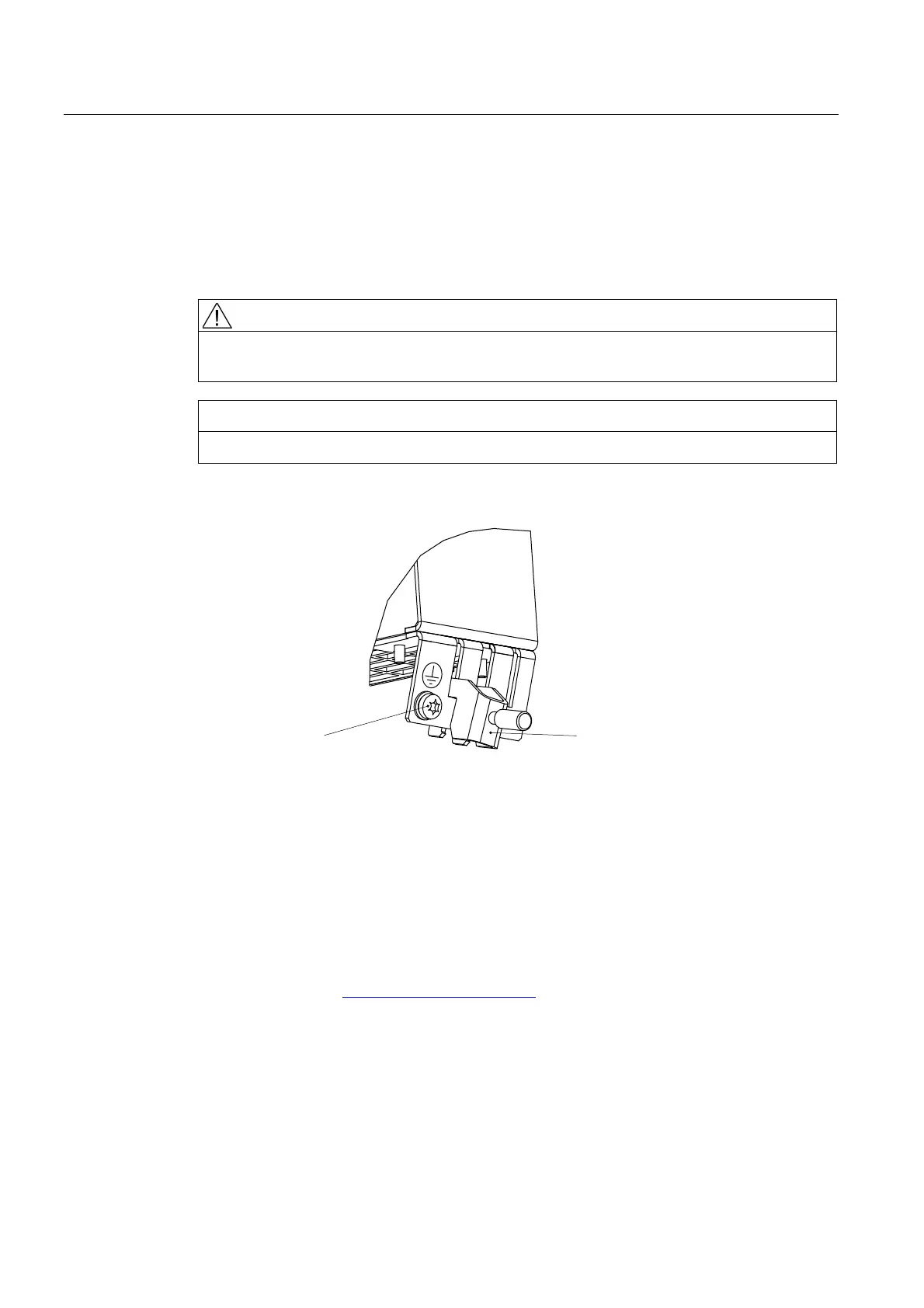

The following diagram shows typical shield-connection terminals for the shield supports:
3URWHFWLYHFRQGXFWRU
FRQQHFWLRQ
01P
6KLHOGWHUPLQDO
Connecting terminal Weidmüller
Type: KLBLUE CO 1
order number: 17533 11001
Figure 4-21 Shield support and protective conductor connection
See also
Weidmüller website (http://www.weidmueller.com)

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
