Siemens SINUMERIK 828D Service Manual

Service cases - software
3.5 Mini boot system on the CompactFlash Card
Hardware and Software
52 Service Manual, 03/2011, 6FC5397-5DP40-0BA0
3.5.2 This is how you install a software backup using the mini boot system
Overview
If a CompactFlash Card with a mini boot system is used as system CompactFlash Card, the
system software or a previously generated software backup must still be transferred.
Note
Licenses
The mini boot system does not contain a license key, a valid license key must be transferred
to the control. When replacing a system CompactFlash Card, this must be requested again
(see also: This is how you license a
CNC option (Page 55)).
All system data and user data are overwritten with the system image.
Updating the software
After you have inserted the CompactFlash Card with the mini boot system as new system
CompactFlash Card (see Replacing the system CompactFlash Card (Page 79)) proceed as
follows
:

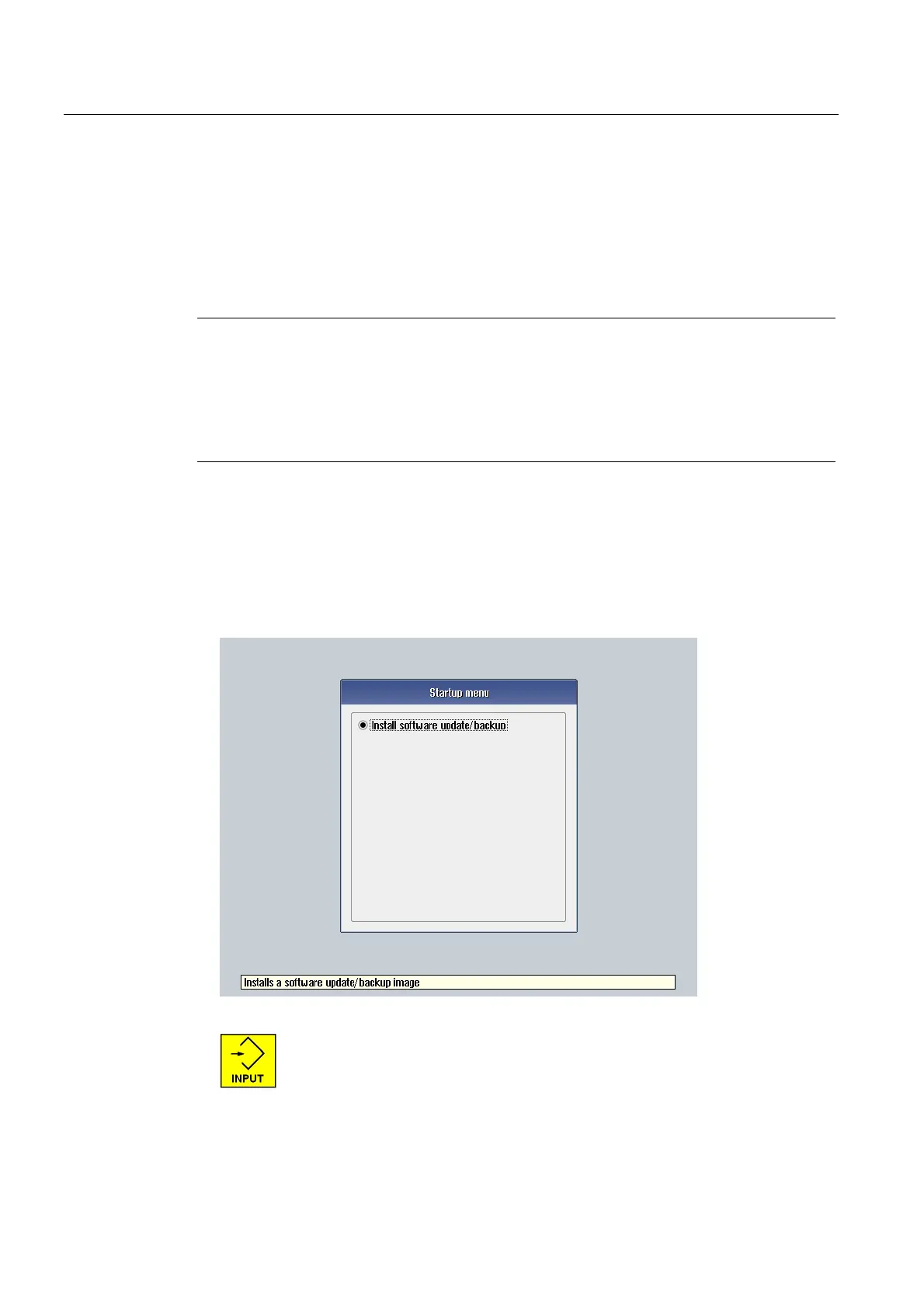

1. Switch the control on. When booting, the following display appears:
2. Press the <INPUT> key to confirm your selection.
