Service cases - software
3.5 Mini boot system on the CompactFlash Card
Hardware and Software
Service Manual, 03/2011, 6FC5397-5DP40-0BA0
51
8. Confirm the selection of the target drive with "OK". By pressing the "Write" button, the
image is transferred to the target drive.
NOTICE
While the data is being transferred, do not switch-off the PC and do not remove the
CompactFlash Card.

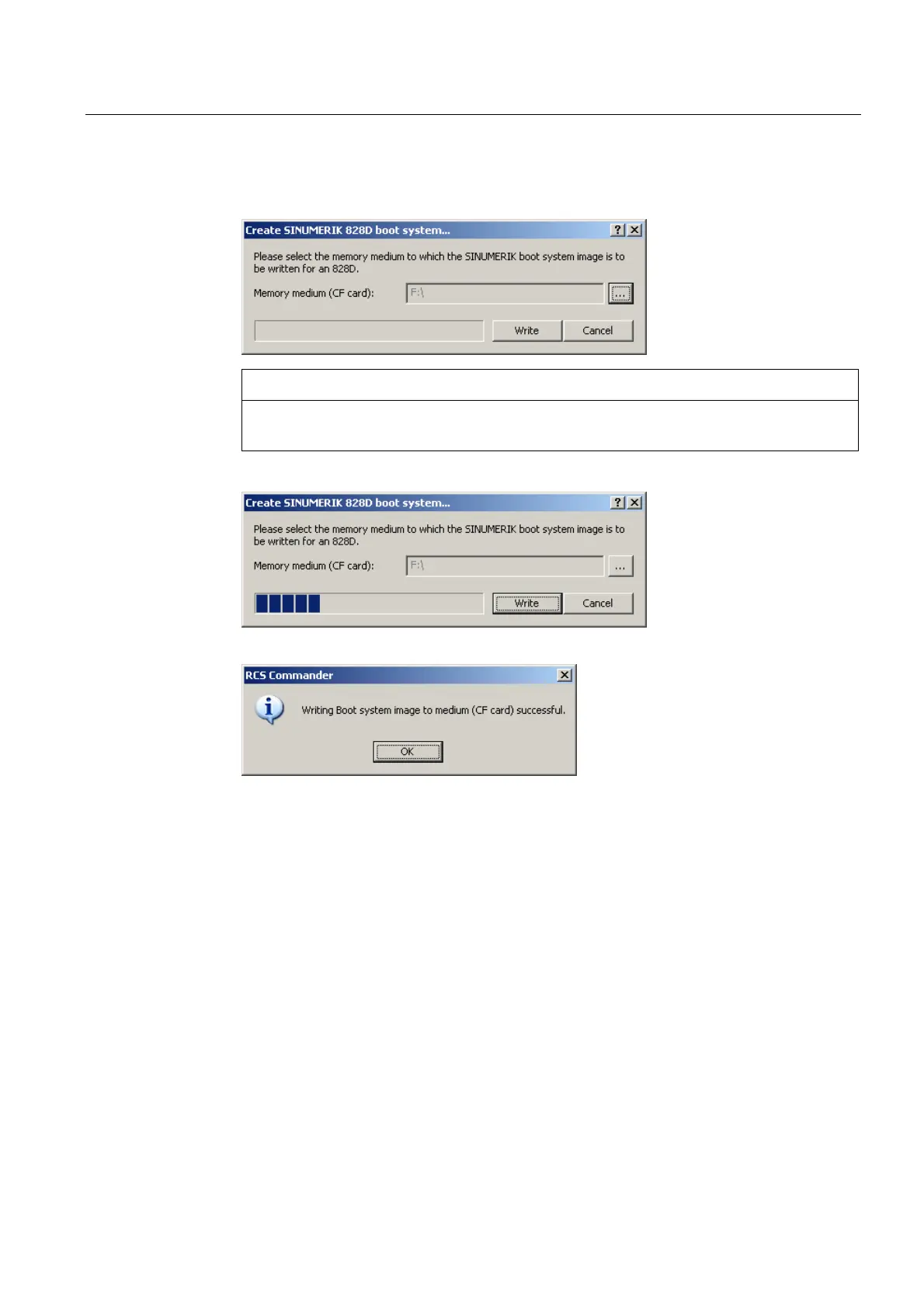

Data transfer is displayed using a progress bar:
9. The following message is output if data transfer was successfully completed:
10. In order to ensure that there are no read and write access operations to the
CompactFlash Card, when you remove the CompactFlash Card from the interchangeable
drive, select the Windows function "Safely remove hardware".
