Service cases - hardware
4.9 Motor Module Booksize Compact format
Hardware and Software
Service Manual, 03/2011, 6FC5397-5DP40-0BA0
147
4.9.3 This is how you mount a Motor Module Booksize Compact
Installing
Note the tightening torques for hexagonal combination screws or hexagon screws with
spring lock washer and flat washer.
Procedure:
1. Initially tighten the screws by hand with 0.5 Nm.
2. Tighten the screws in the specified sequence 1 to 4 with 6 Nm.
1
2
3
4
5

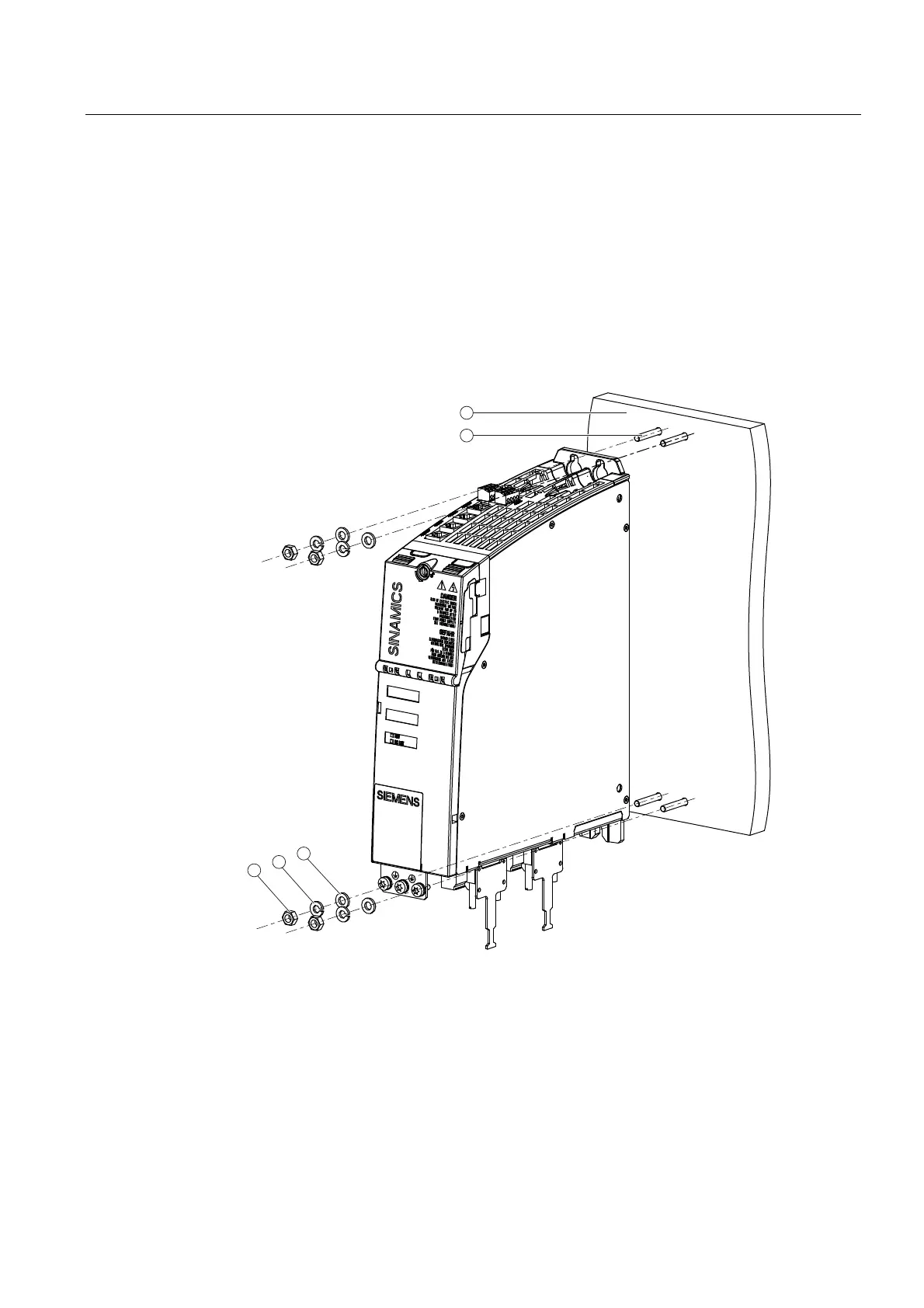

① Mounting wall
② Screw M6 x 16
③ Plain washer
④ Spring washer
⑤ Nut
Figure 4-32 Motor Module Booksize Compact
