Siemens SINUMERIK 828D Service Manual

Service cases - software
3.5 Mini boot system on the CompactFlash Card
Hardware and Software
Service Manual, 03/2011, 6FC5397-5DP40-0BA0
53

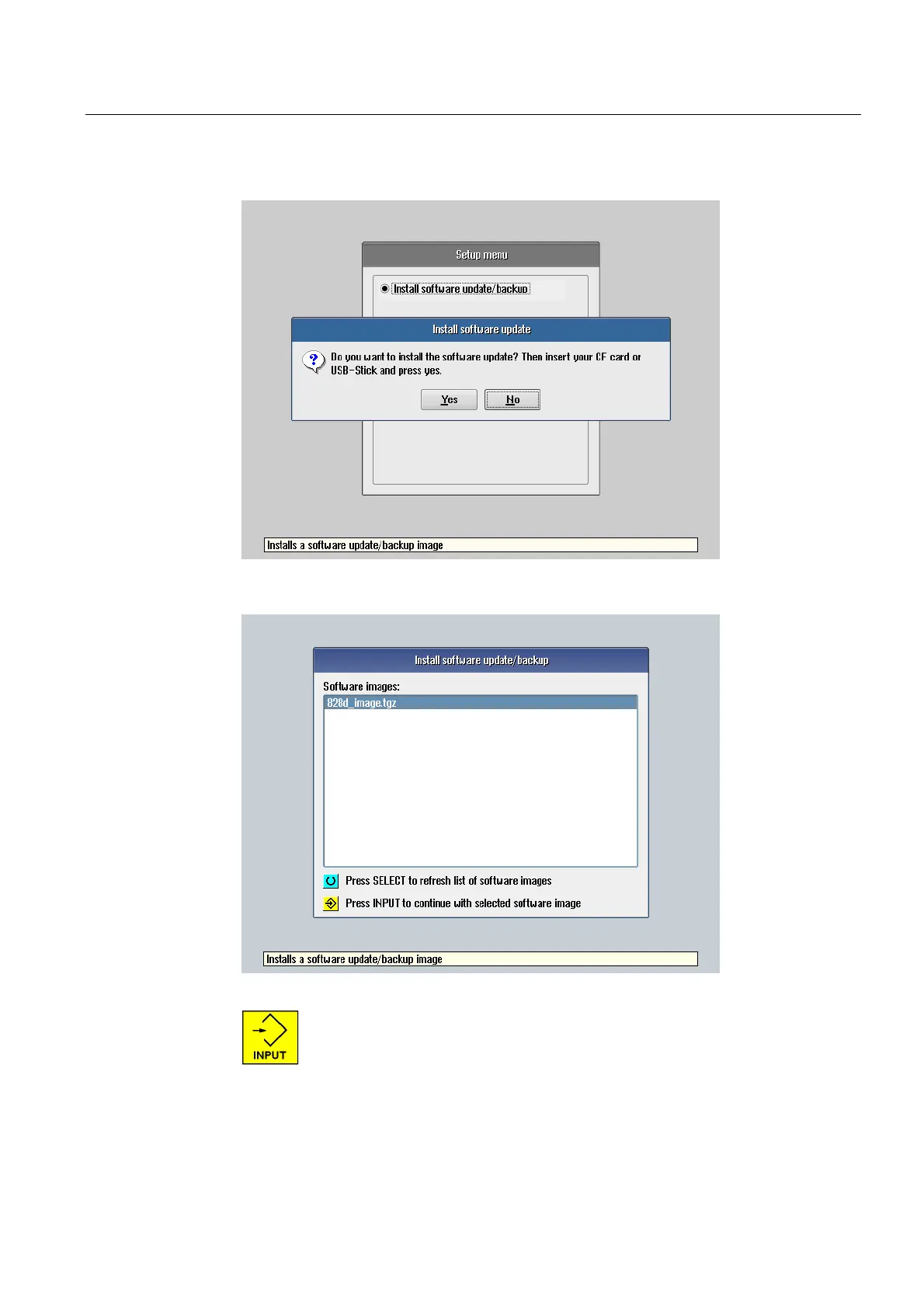

3. Confirm the question with "Yes".
4. Insert the CompactFlash Card or a USB-FlashDrive with the image into the slot on the
front panel of the control.
5. Confirm the selection with the <INPUT> key.
6. The following message briefly appears: "Starting software update"
Then the screen goes dark for several seconds.

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
