Siemens SINUMERIK 828D Service Manual

Service cases - hardware
4.8 SINAMICS S120 Combi
Hardware and Software
122 Service Manual, 03/2011, 6FC5397-5DP40-0BA0

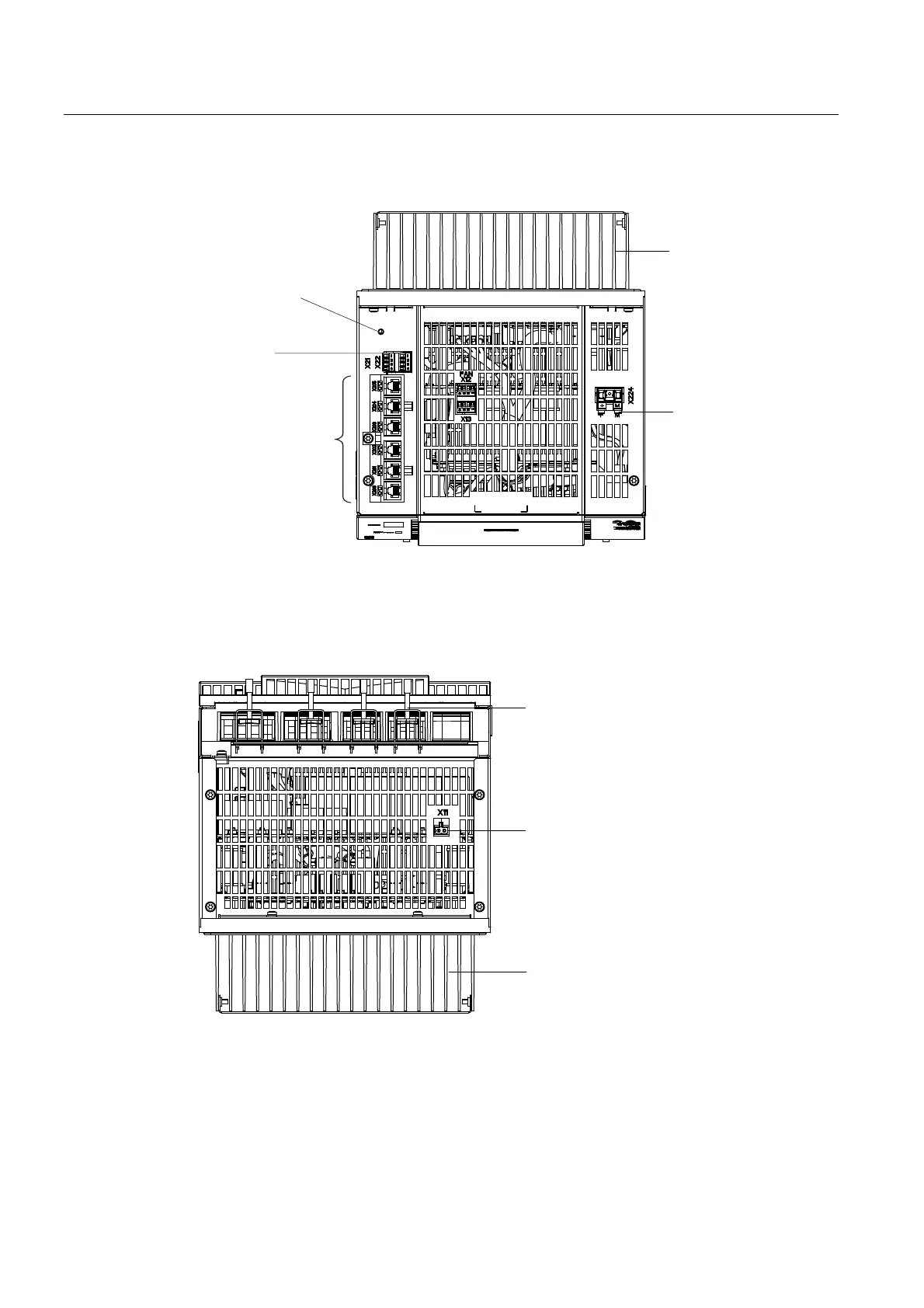

View from the top
+HDWVLQN
6KLHOGFRQQHFWLRQ
(3WHUPLQDO

(3WHUPLQDO
'5,9(&/L4ZLWK
JXLGHIUDPH
9SOXJFRQQHFWRU
;
;;
;;
1) The shield connection terminal is included in the accessories pack (Weidmüller, type KLBÜ 3-8 SC).
Figure 4-26 S120 Combi 4 axis Power Module
View from below
+HDWVLQN
;
%UDNHFRQQHFWLRQ
6KLHOGFRQQHFWLRQ
WHUPLQDOV
Figure 4-27 S120 Combi 4 axis Power Module

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
