Siemens SINUMERIK 828D

Service cases - hardware
4.8 SINAMICS S120 Combi
Hardware and Software
142 Service Manual, 03/2011, 6FC5397-5DP40-0BA0
Screws: Slotted or cross slot M4 x 10, DIN EN ISO 7046-1/2

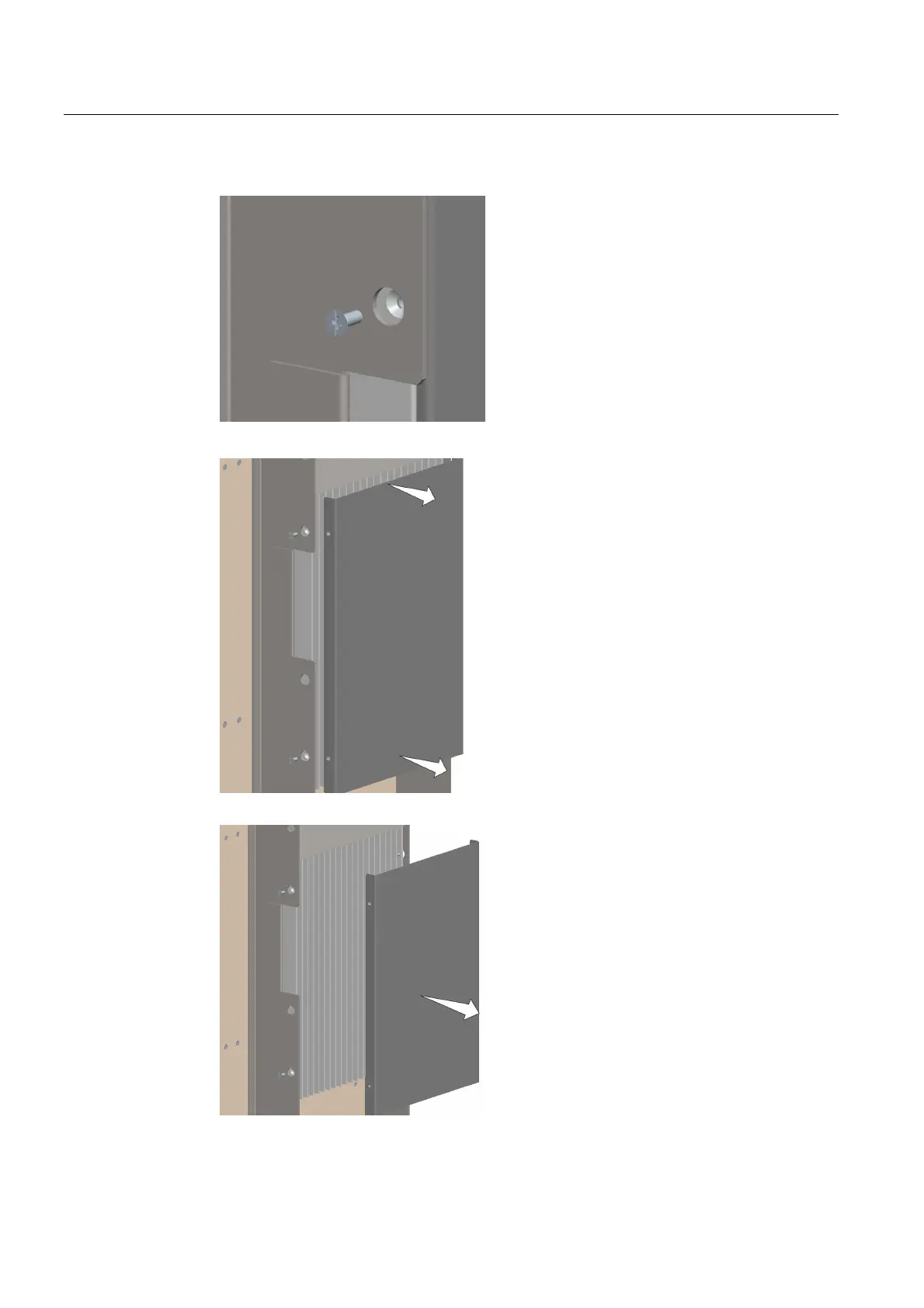

3. Remove the air baffle plate in the direction of the arrow.
The air baffle plate has been removed.
