Siemens SINUMERIK 828D Service Manual

Service cases - hardware
4.10 Single Motor Modules
Hardware and Software
154 Service Manual, 03/2011, 6FC5397-5DP40-0BA0
7. Open the protective cover of the DC link voltage of the defective module as well as the
adjacent module - if available - using a suitable tool (e.g. a screwdriver).
8. Withdraw the 24 V terminal adapter.
9. Using a multimeter (set the measuring range to 1000 V DC) at the points DCP/DCN,
check that the DC link voltage is in a no-voltage condition.
Only continue with the work when it has been absolutely ensured that no voltage is
present (a no-voltage condition has been established).

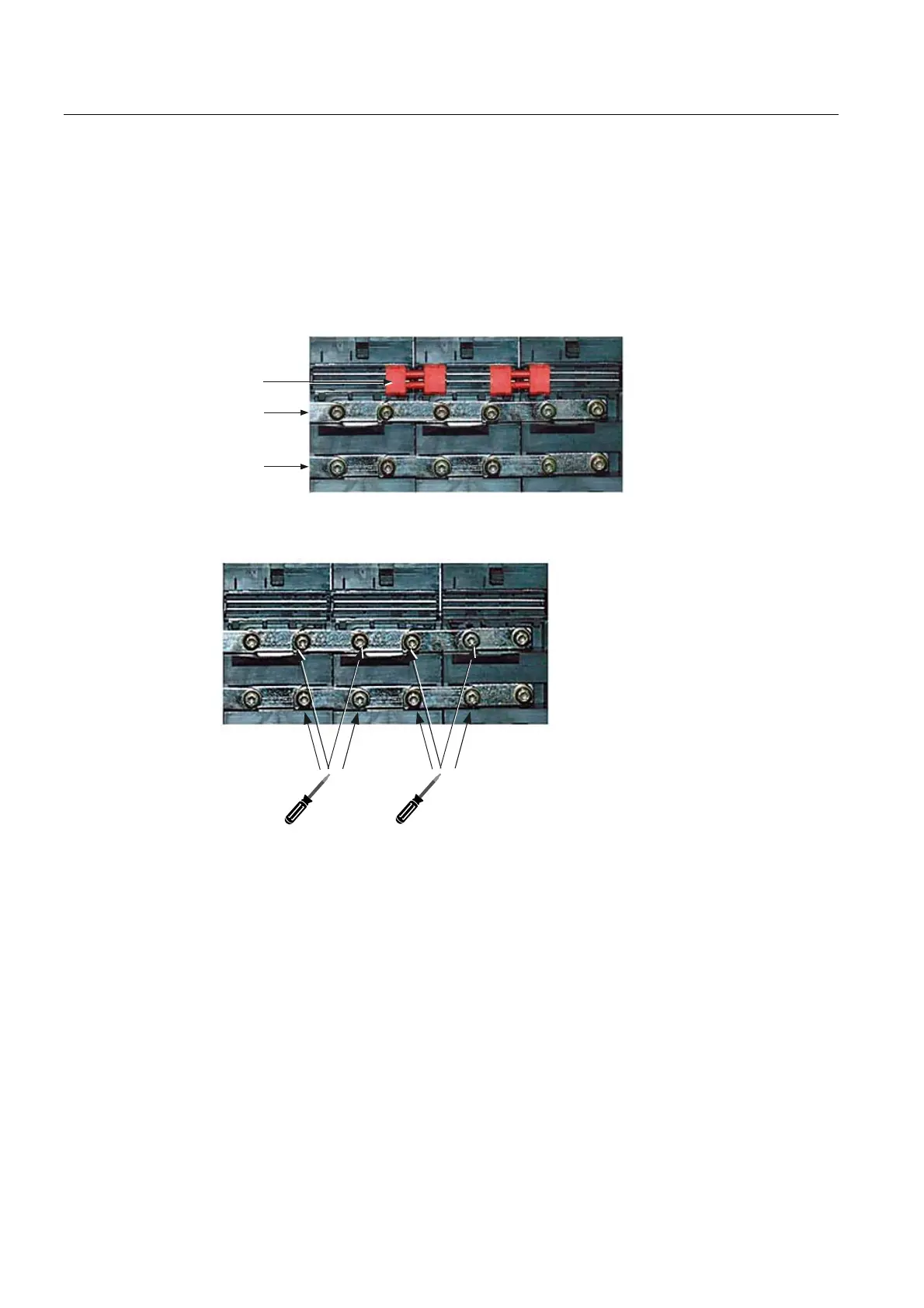

'&3
-XPSHUSOXJ
'&
10. Withdraw the red 24 V jumper plug.
11. Release the Torx screws of the DC link.
7RU[7
7RU[7

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
