Siemens SINUMERIK 828D Service Manual

Service cases - software
3.5 Mini boot system on the CompactFlash Card
Hardware and Software
Service Manual, 03/2011, 6FC5397-5DP40-0BA0
49
Precondition to write:
● RCS Commander has been installed.
● SW package: Configuration data from the Toolbox has been installed.
● CompactFlash card is a replacement card.
Installing the boot system on an empty card
Procedure:
1. Insert the CompactFlash Card into the card reader.
2. Start the RCS Commander via "Start" → "Programs" → "RCS Commander".
Note
An online connection to the control is not required to generate the boot system.

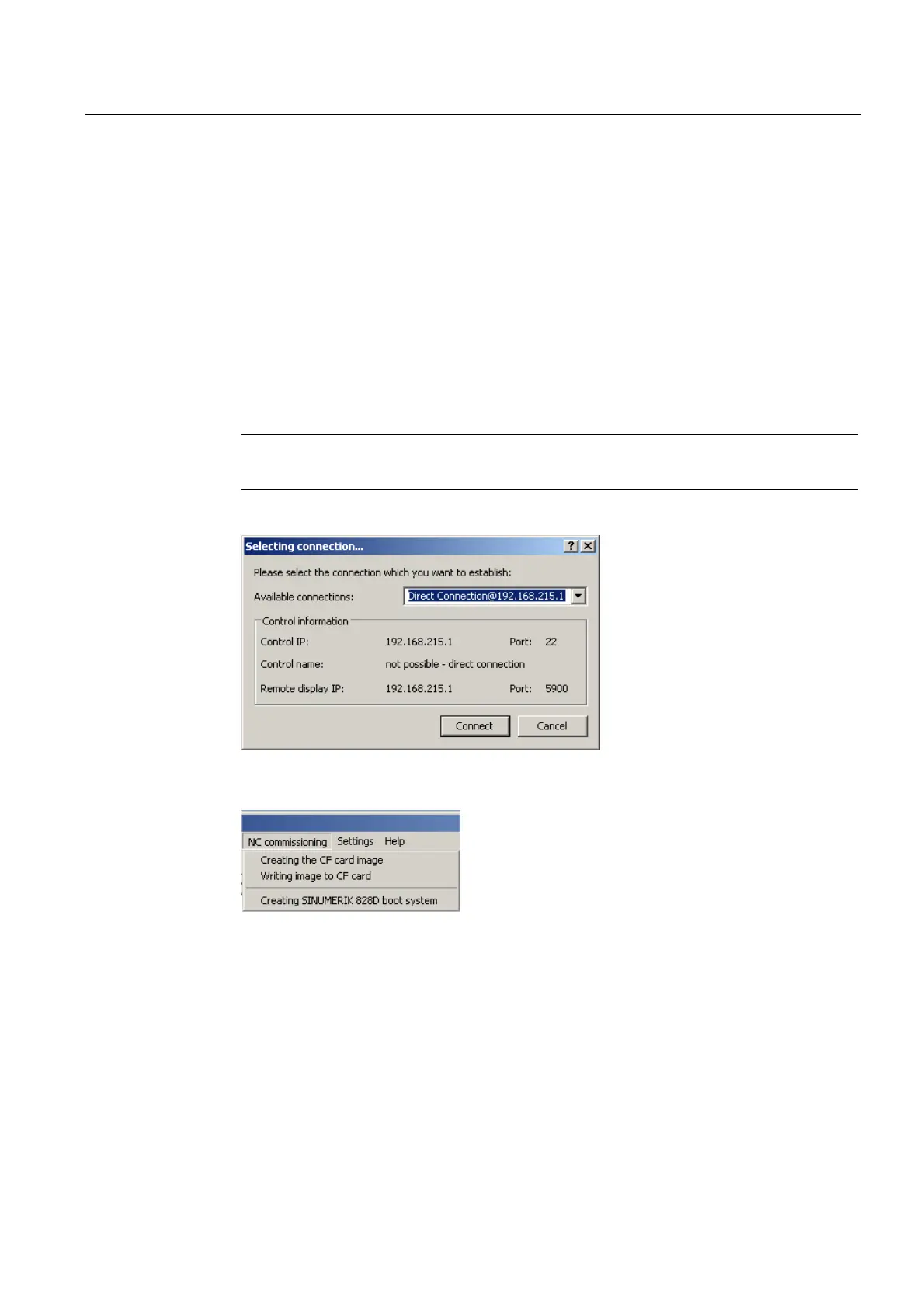

3. If you are prompted to establish the connection, press "Cancel".
4. In the "View" menu, select the menu item "Expert view".
The following, additional "NC commissioning" menu is displayed:
5. Select menu item "Generate 828D boot system".

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
