Siemens SINUMERIK 828D Service Manual

Service cases - software
3.6 Licensing
Hardware and Software
56 Service Manual, 03/2011, 6FC5397-5DP40-0BA0
Proceed as follows to access the "licenses" dialog box:
1. Select the "Start-up" operating area.
2. Press the menu forward key.
3. Press the "Licenses" softkey.
The "Licensing" window opens. Using the vertical softkeys, you can execute the following
actions:
– Display a serial number: "Overview"
– "Display all options":
– Display "Missing licenses"
– "Exp. license requirement"
– "Read in the license key"

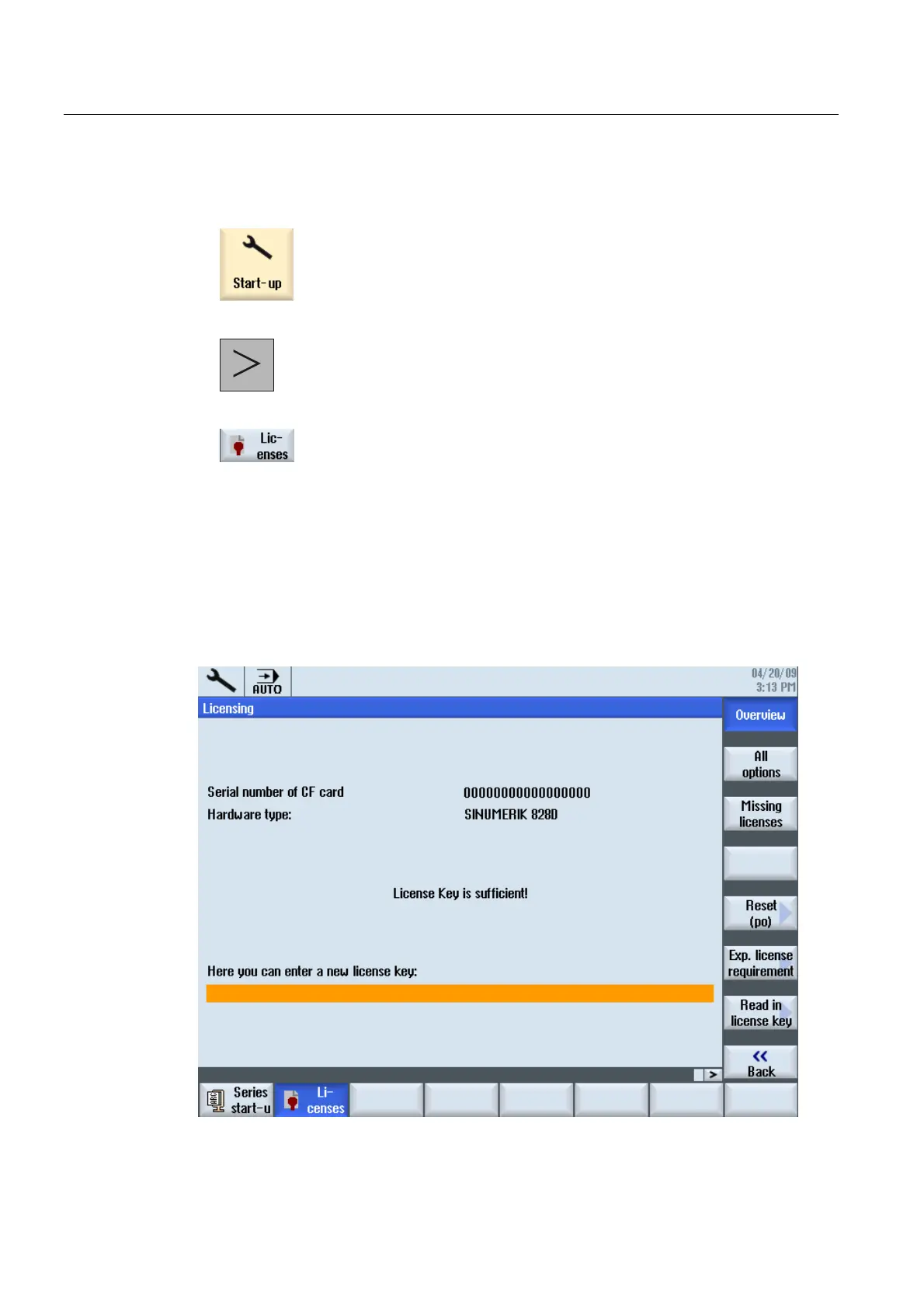

Figure 3-3 Licensing

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
