Service cases - hardware
4.2 Replacing the system CompactFlash Card
Hardware and Software
80 Service Manual, 03/2011, 6FC5397-5DP40-0BA0

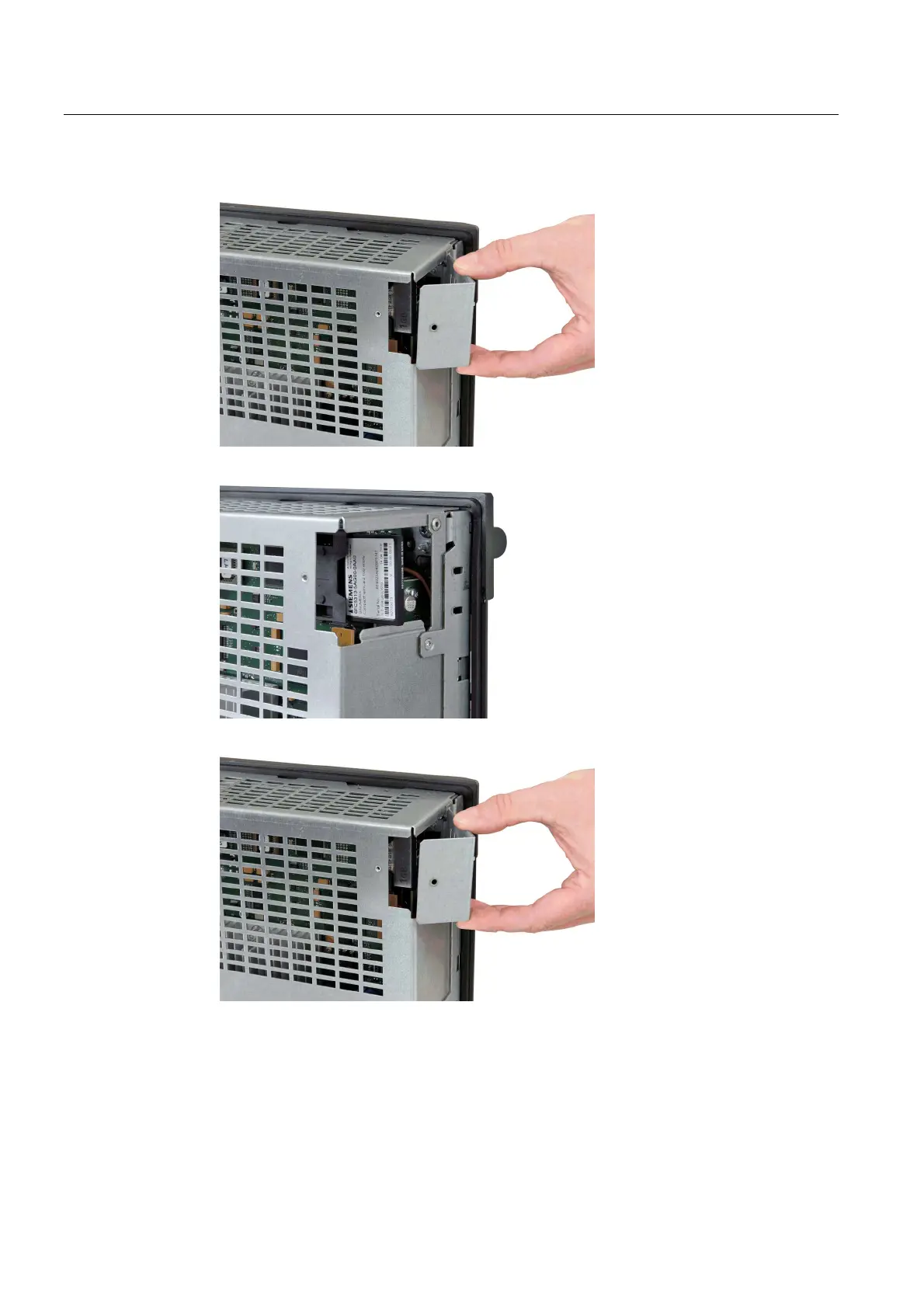

3. Move the metal cover to the side and remove it.
4. Remove the system CompactFlash Card from the side.
5. Fix the metal cover by first locating at the rear and then tilting it into the end position.
