Siemens SINUMERIK 828D Service Manual

Service cases - hardware
4.4 Machine control panels
Hardware and Software
94 Service Manual, 03/2011, 6FC5397-5DP40-0BA0
Removing
   
  




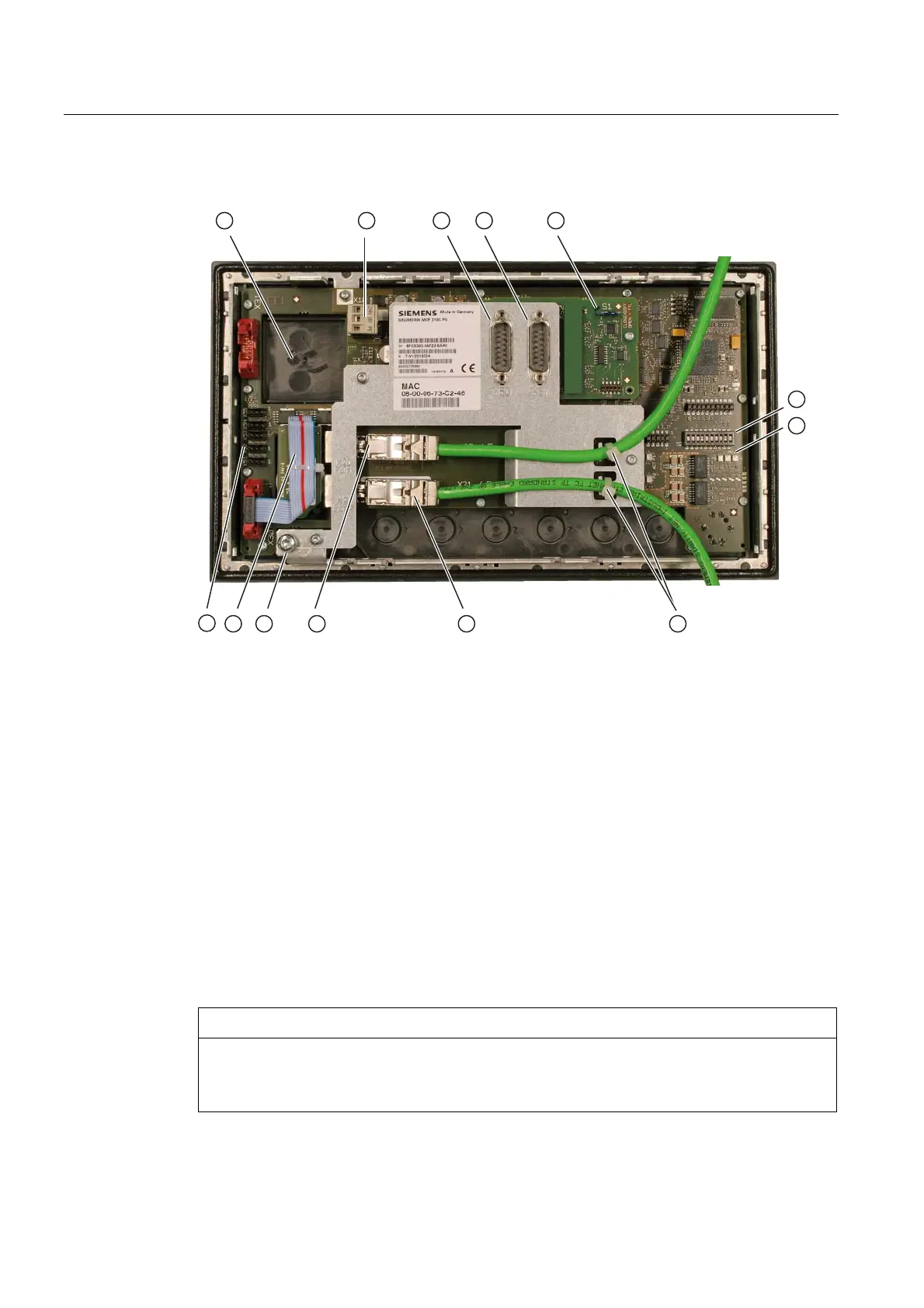

① Slot for Emergency Stop button or spindle override
② X10 Power supply interface
③ X60 Handwheel connection *)
④ X61 Handwheel connection *)
⑤ S1 Switch: for SINUMERIK 828D, no function
⑥ S2 Switch
⑦ LEDs
⑧ Ethernet cable strain relief
⑨ X21 Port 2: PLC I/O interfaces based on PROFINET
⑩ X20 Port 1: PLC I/O interfaces based on PROFINET
⑪ Equipotential bonding
⑫ Feedrate override
⑬ Customer-specific inputs and outputs
*) Handwheels are directly connected to the PPU: Do not wire X60/X61.
Figure 4-8 MCP 310C PN rear side
NOTICE
Electro-static discharge (ESD)
Before you touch the machine control panel, discharge yourself at the cabinet or at the
ground terminal.

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
