Siemens SINUMERIK 828D Service Manual

Service cases - hardware
4.4 Machine control panels
Hardware and Software
98 Service Manual, 03/2011, 6FC5397-5DP40-0BA0
Removing
    


① Ground terminal
② X30 Feedrate override
③ X31 Spindle override
④ X20 Port 1: Connection: PLC I/O interface based on PROFINET
X21 Port 2: Connection: PLC I/O interface based on PROFINET
⑤ Slot for Emergency Stop
⑥ Mounting slots for additional command devices
⑦ Customer-specific inputs and outputs
⑧ Cover plate
⑨ Ethernet cable strain relief
⑩ LEDs
⑪ S2 Switch
⑫ S1 Switch: for SINUMERIK 828D, has no function
⑬ X60 Handwheel connection *)
X61 Handwheel connection *)
⑭ X10 Power supply interface
*) Handwheels are directly connected to the PPU: Do not wire X60/X61

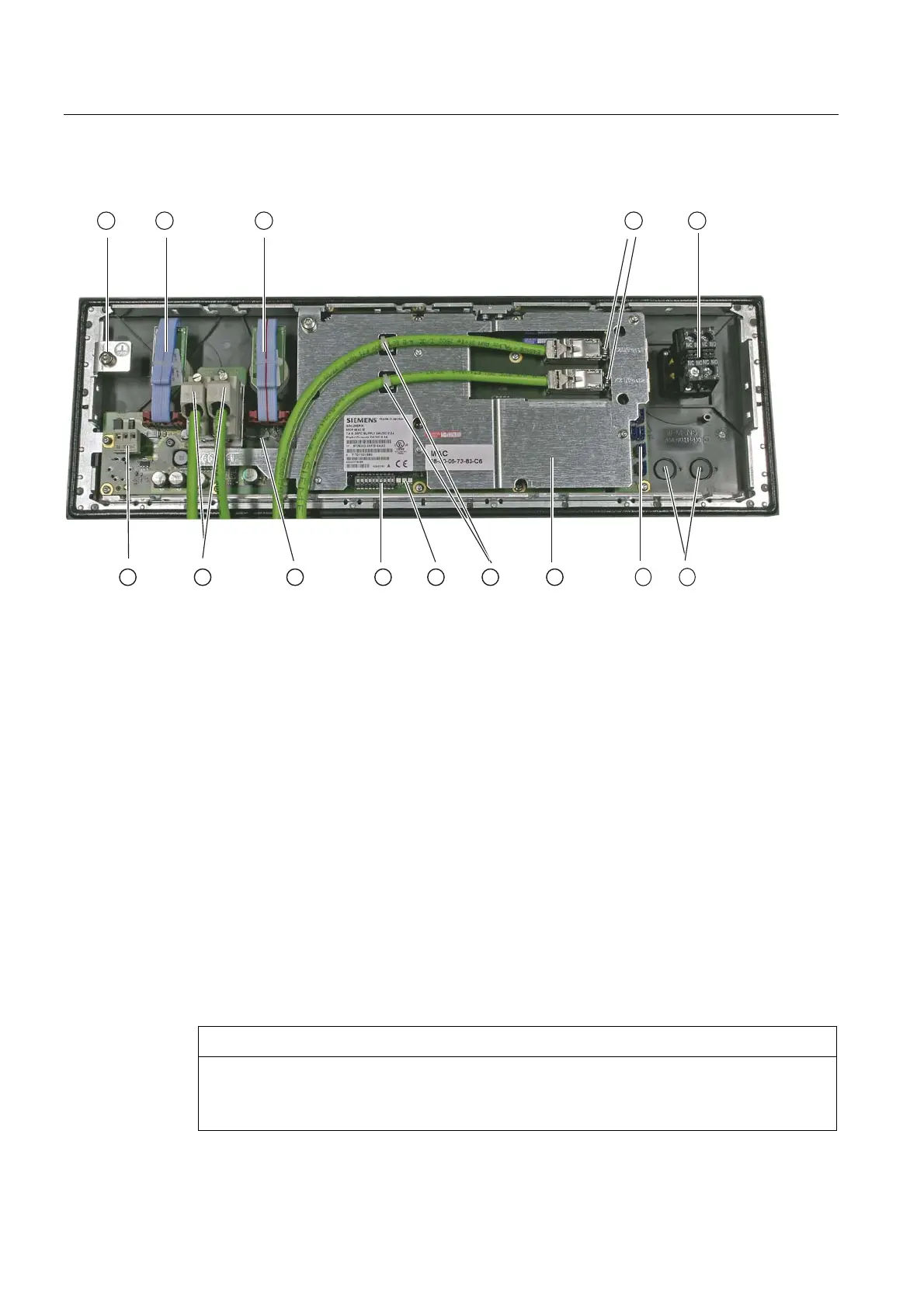

Figure 4-11 MCP 483C PN rear side
NOTICE
Electro-static discharge (ESD)
Before you touch the machine control panel, discharge yourself at the cabinet or at the
ground terminal.

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
