Siemens SINUMERIK 840D sl Operation/Programming

3
Machining the Workpiece 08/2005
3.11 Simulatin
g
machinin
g
3
♥ Siemens AG, 2005. All rights reserved
3-116 SINUMERIK 840D sl Operation/Programming ShopTurn (BAT) – 08/2005 Edition

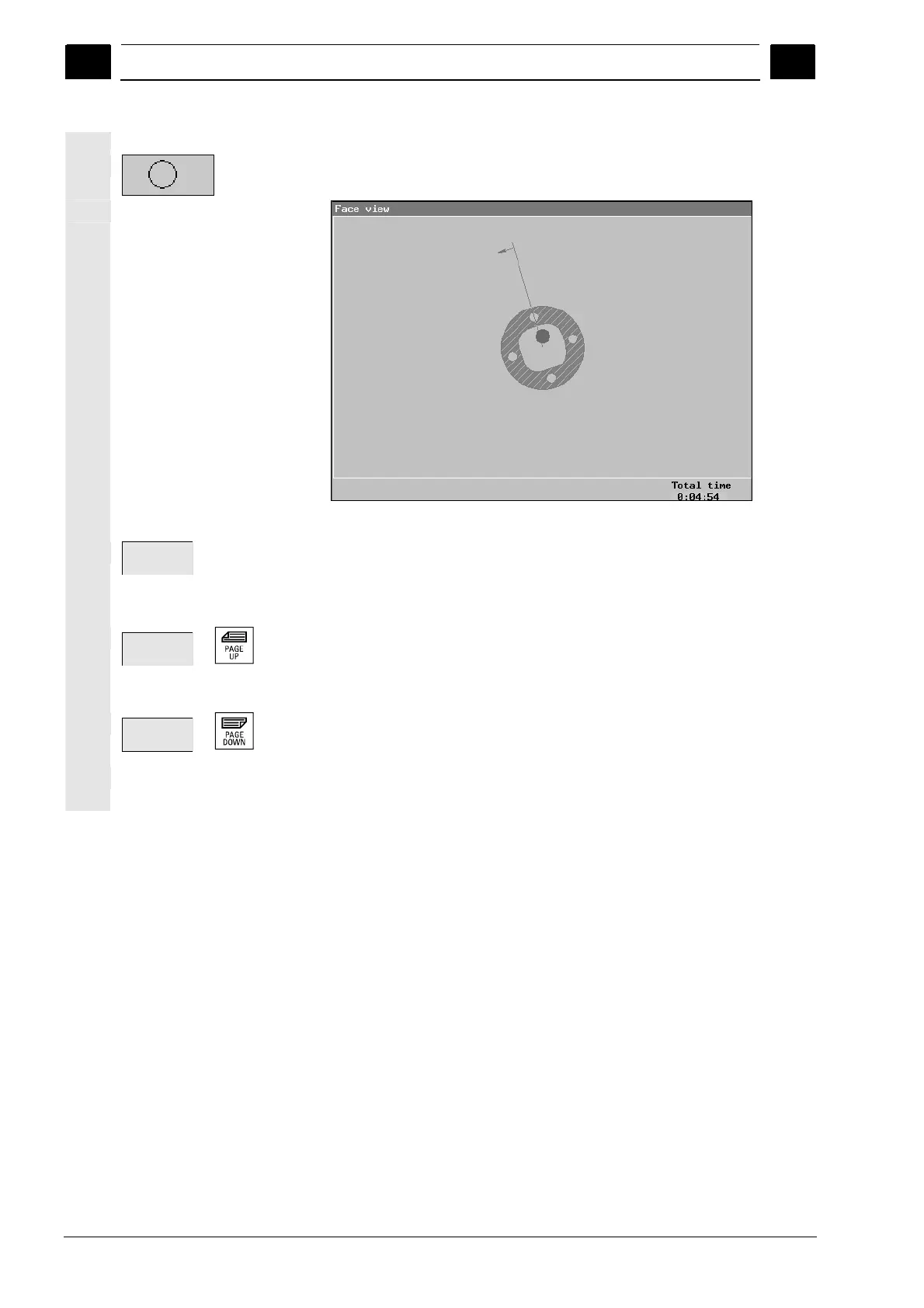

Front view
 Press the "Front view" softkey.
Front view
Details
>
 Press the "Details" softkey, if you want to pan the cross-section in
the Z direction.
-and-
Z Cut
+
or
 Press the "Z Cut +" or "Page Up" key in order to pan the cross-
section in a positive Z direction.
-or-
Z Cut
-
or
 Press the "Z Cut -" or "Page Down" key in order to pan the cross-
section in a negative Z direction.
You can find further information on changing the cut-away in Sec.
"Changing the cut-away".

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
