08/2005 ShopTurn Functions
5.2 Drillin
g
5
♥ Siemens AG, 2005. All rights reserved
SINUMERIK 840D sl Operation/Programming ShopTurn (BAT) – 08/2005 Edition 5-193
Including or skipping all
positions at once
Skip all
¾ Press the "Skip all" softkey to skip all positions.
Include all
¾ Press the "Include all" softkey to include all positions again.
5.2.15 Repeating positions
If you want to approach positions that you have already programmed
again, you can do this quickly with the function "Repeat position".
ShopTurn automatically allocates a number for each position pattern
and displays it next to the block number in the process plan.

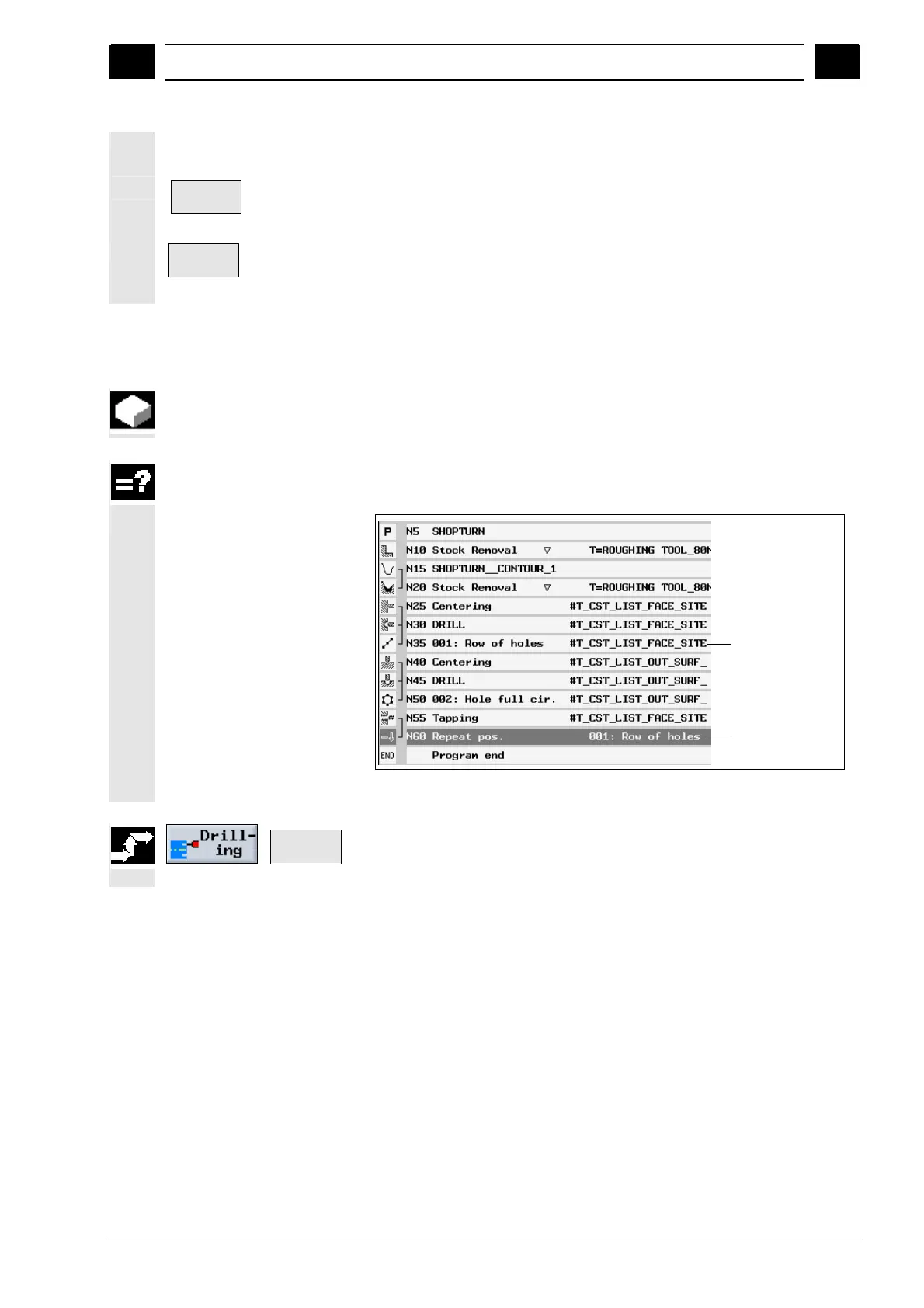

Position pattern 001
Repeat position
pattern 001
Repeat position pattern
Repeat
position >
¾ Press the "Drilling", and "Repeat position" soft keys.
¾ Enter the number of the position pattern that you want to repeat.
