1.2.2 Operator panels
You can use one of the following operator panels for the PCU:
OP 010
OP 010C
OP 010S
OP 012
OP 015

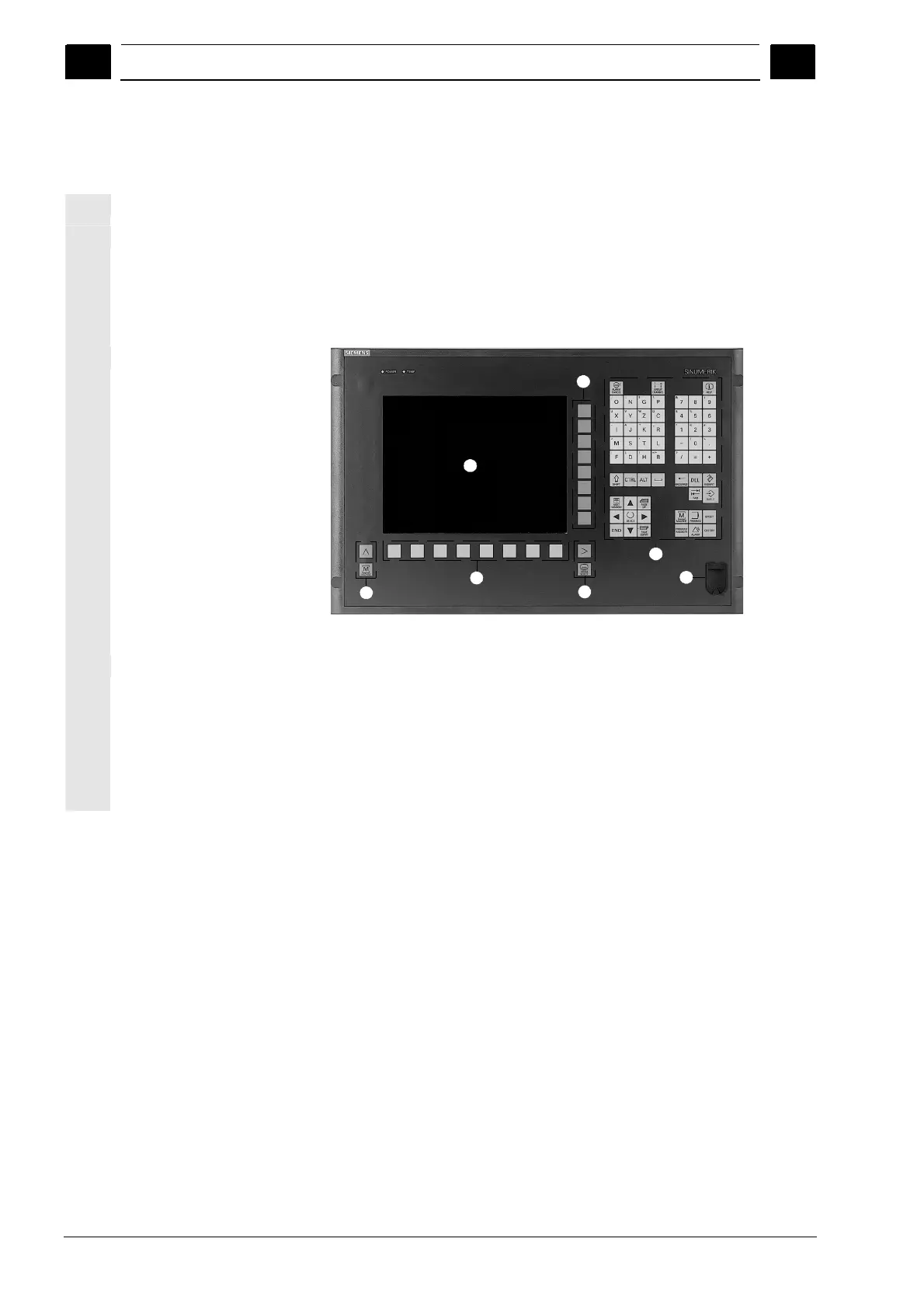

Operator panel OP 010
3
4
2
1
6
.
5
2
Operator panel OP 010
1 Screen
2 Screen keys
3 Horizontal softkey bar
4 Vertical softkey bar
5 Alphanumeric keypad
Correction/cursor pad with control keys and input key
6 USB interface

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
