Siemens SINUMERIK 840D sl Operation/Programming

2
Setting Up the Machine 08/2005
2.4 Settin
g
s for the machine
2
♥ Siemens AG, 2005. All rights reserved
2-52 SINUMERIK 840D sl Operation/Programming ShopTurn (BAT) – 08/2005 Edition
2.4.3 Spindles
In the "Spindles" screen form, you store the dimensions of the
spindles on your machine.
Measuring a manual tool
If you want to use the collet of the main or counter spindle as a
reference point during manual measuring, specify the collet
dimensions ZL0 or ZL1.
Counter-spindle
You can measure either the forward edge or stop edge of the counter-
spindle. The forward edge or stop edge automatically serves as the
valid reference point when traversing the counter-spindle. This is
especially important when gripping the workpiece with the counter-
spindle (see Sec. "Machining with the Counter-spindle").

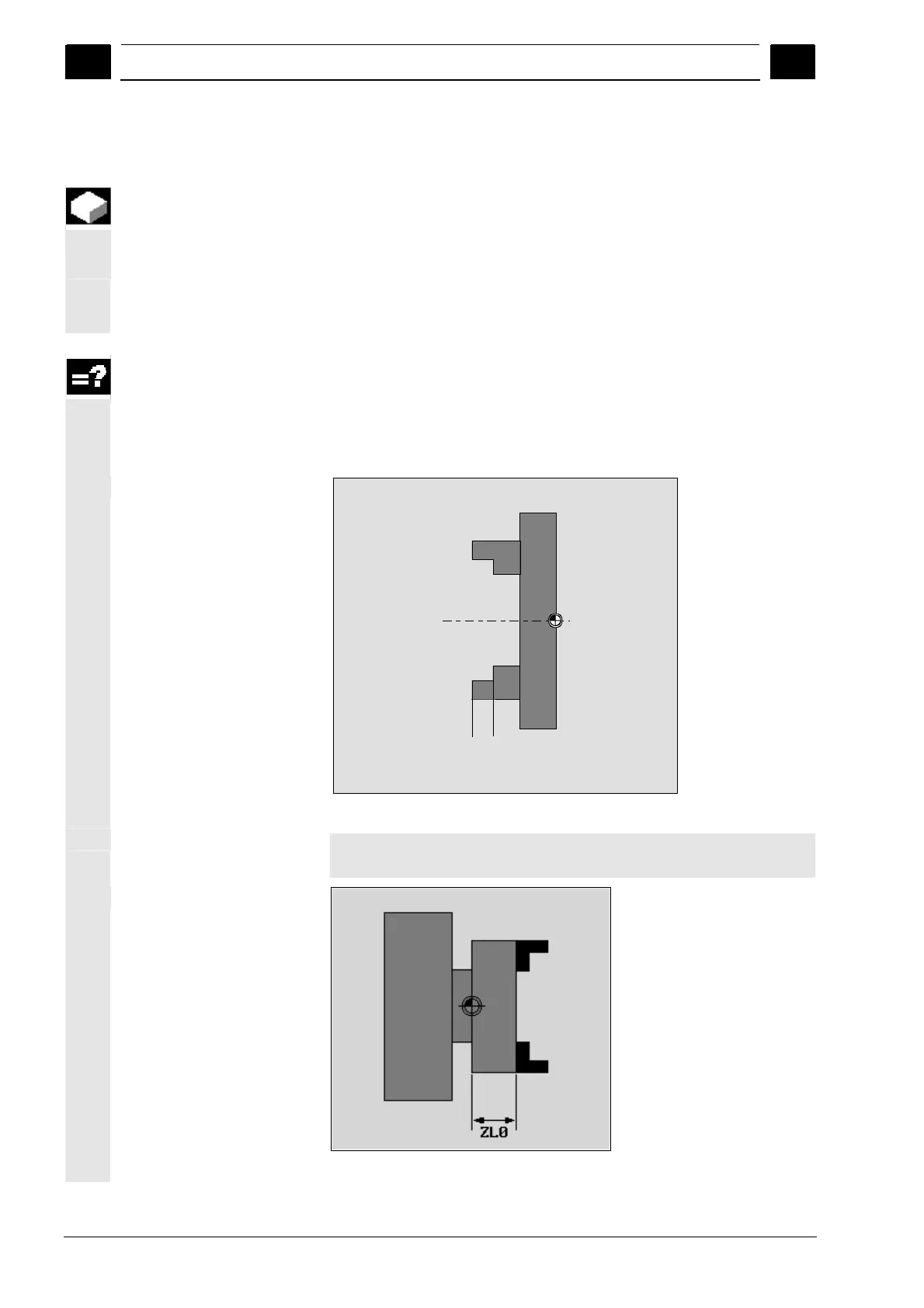

Front edge Stop edge
Dimensioning of the counter-spindle
Please observe the machine manufacturer’s specifications for the
parameter "Tensioning."
Main spindle
Dimensioning of the main spindle

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
