08/2005 Machining the Workpiece
3.1 Startin
g
/sto
pp
in
g
machinin
g
3
♥ Siemens AG, 2005. All rights reserved
SINUMERIK 840D sl Operation/Programming ShopTurn (BAT) – 08/2005 Edition 3-91

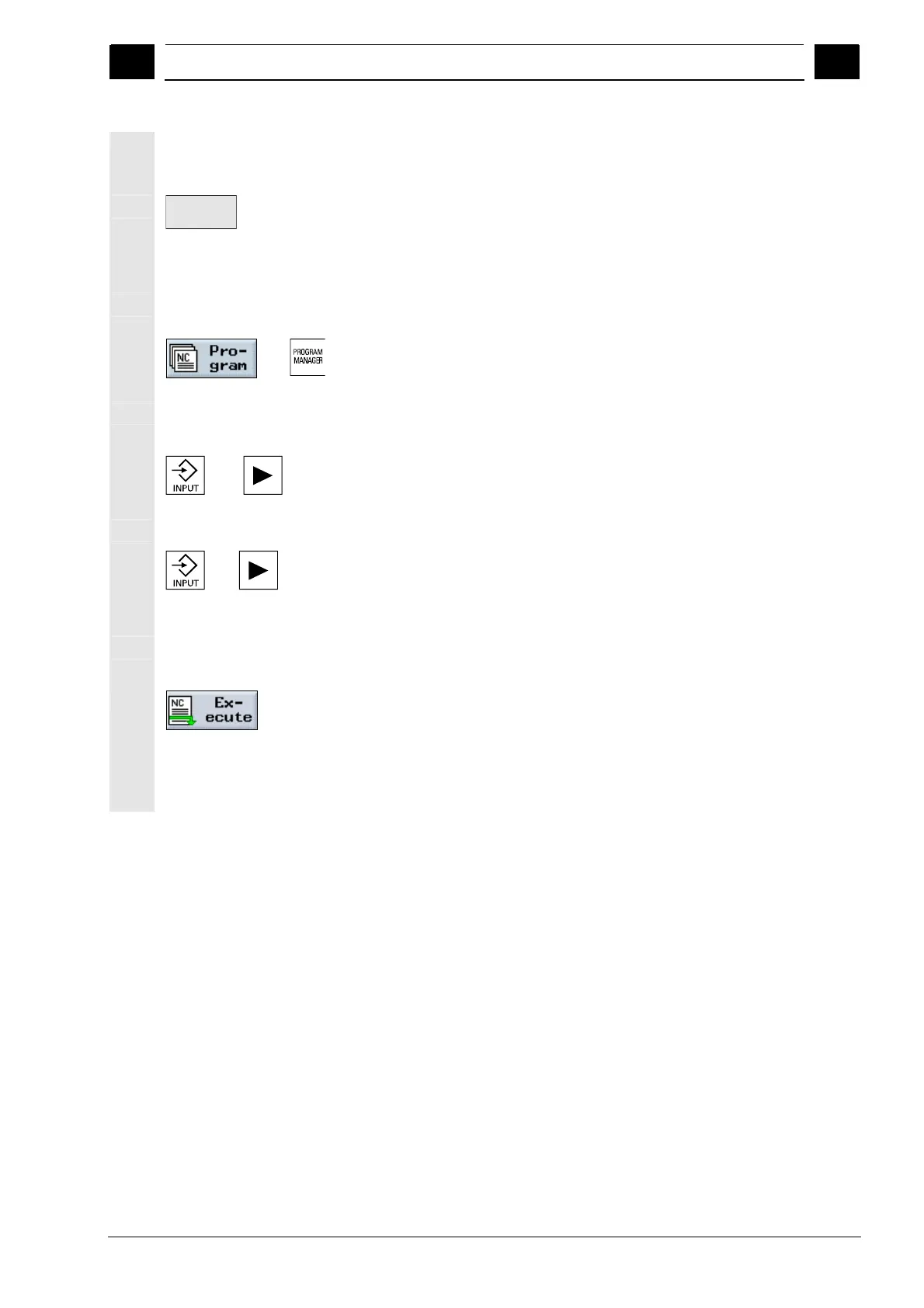

The program overview is displayed.
 Place the cursor on the required program.
Execute
 Press the "Execute" softkey.
ShopTurn automatically switches to "Machine Auto" mode and loads
the program.
Select program
(by program block)
-or-
 Press the softkey or the "Program" key.
The directory overview is displayed.
 Place the cursor on the directory containing the program that you
want to select.
-or-
 Press the "Input" or "Cursor right" key.
The program overview is displayed.
 Place the cursor on the required program.
-or-
 Press the "Input" or "Cursor right" key.
The selected program is opened in the "Program" operating area. The
machining plan of the program is displayed.
 Place the cursor on the program block at which the program run
must begin.
 Press the "Execute" softkey.
ShopTurn automatically switches to "Machine Auto" mode, loads the
program and carries out a block search to the highlighted program
block (see Section "Starting at a Specific Point in the Program").

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
