1.3.6 ShopTurn Open (PCU 50.3)
There is ShopTurn software for the PCU 50.3 in the ShopTurn Open
version.

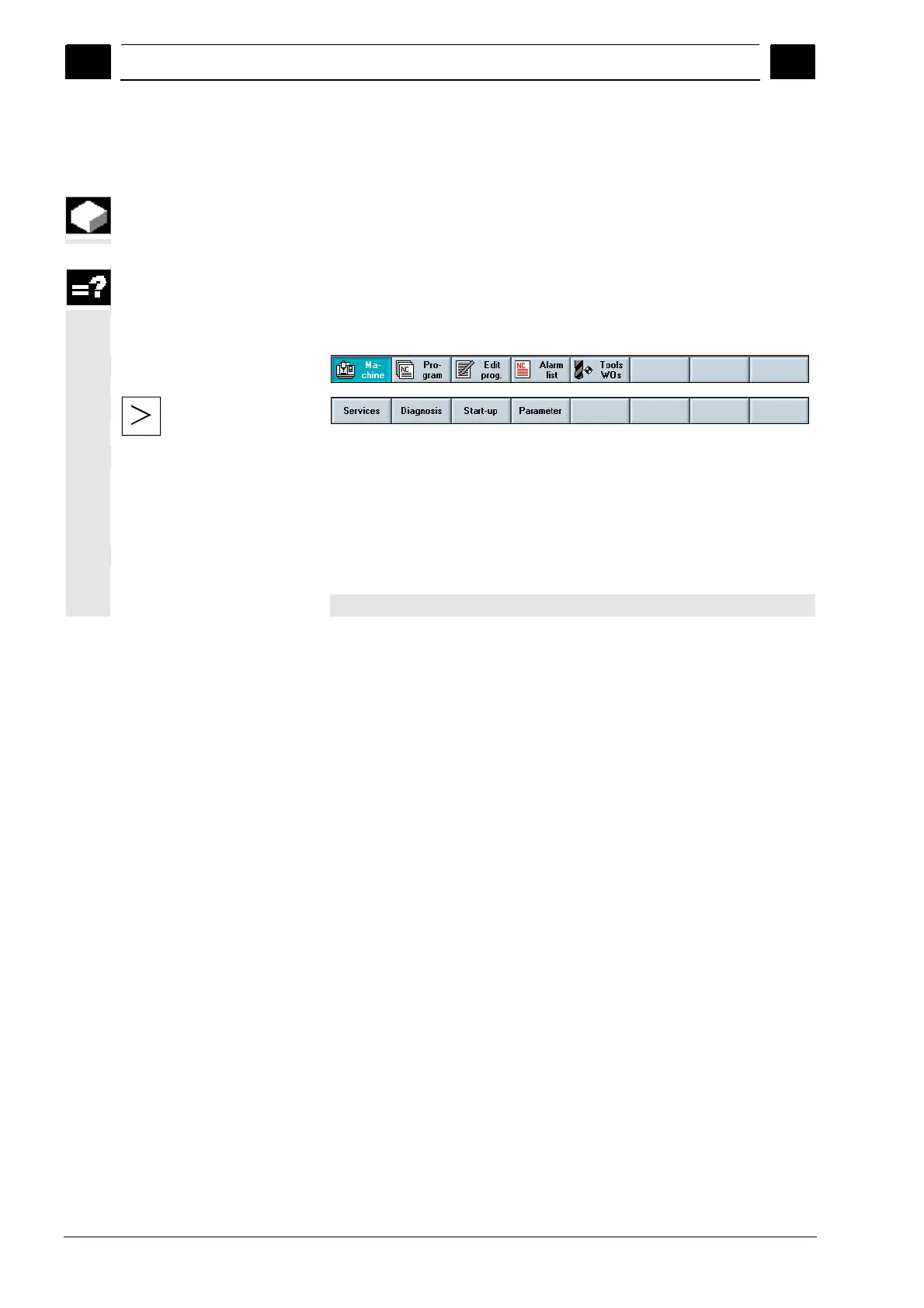

In ShopTurn Open, the HMI-Advanced operator sections "Services",
"Diagnosis", "Commissioning" and "Parameters" (without tool
management and zero-point offsets) are located directly on the
expanded horizontal softkey bar.
You can find a detailed description of the integrated HMI-Advanced
operator interface in:
References: /BAD/, Operator's Guide HMI Advanced
SINUMERIK 840D/840Di/810D/840D sl
Some of the softkeys in the basic menu or extended menu bars may
be assigned to other operating areas by the machine manufacturer.
Please also refer to the machine manufacturer's instructions.


Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
