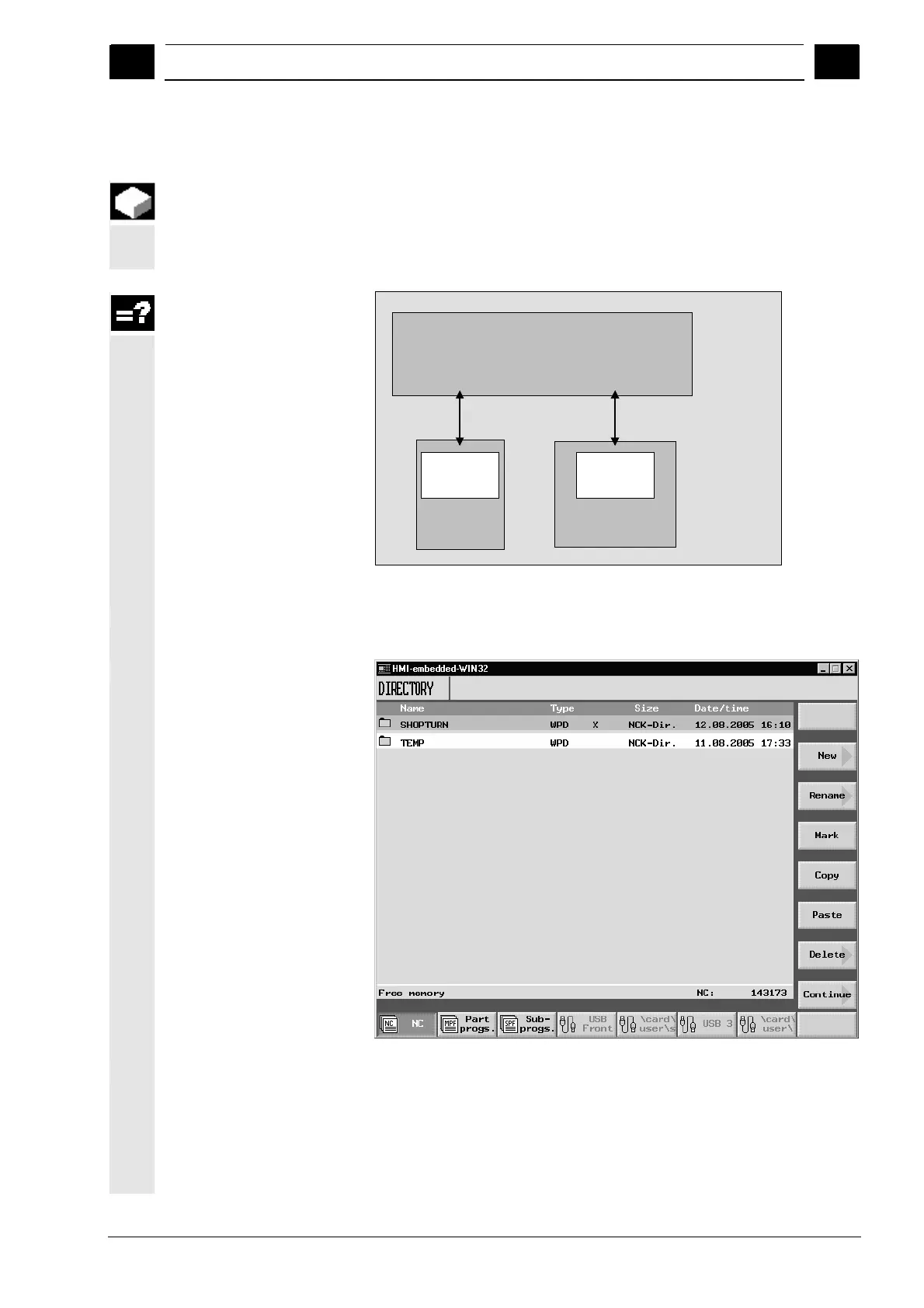

9.2 Managing programs with ShopTurn on NCU (HMI Embedded)
For the ShopTurn variant on the NCU (HMI Embedded), all the
programs and data are always kept in the NCK work memory.
In addition, the directory management of a USB/network-drive can be
displayed.
ShopTurn user interface on NCU
(HMI Embedded)
NC main memory
edit
edit
USB/
Network drive
ShopTurn programs
ShopTurn subroutines
G code programs
ShopTurn programs
ShopTurn subroutines
G code programs
Data storage with ShopTurn on NCU (HMI Embedded)
You will find an overview of all directories and programs in the
Program Manager.
Program manager for ShopTurn on NCU (HMI Embedded)
In the horizontal softkey bar, you can select the storage medium that
contains the directories and programs that you want to display. In
addition to the "NC" softkey, via which the data of the NCK-work
memory can be displayed, another 8 softkeys can allow you to display
the directories and programs of USB/network-drives and the CF-card-
drive.
