Siemens SINUMERIK 840D sl Operation/Programming

4
Creating a ShopTurn Program 08/2005
4.3 Se
q
uential control
p
ro
g
ram
4
♥ Siemens AG, 2005. All rights reserved
4-136 SINUMERIK 840D sl Operation/Programming ShopTurn (BAT) – 08/2005 Edition
4.3 Sequential control program
For sequential control programs that you create directly at the
machine, you require a software option.
4.3.1 Overview
When creating a sequential control program, always proceed
according to the following diagram:
 Create a new program
 Assign a program name
 Fill out the program head
 Program individual machining steps

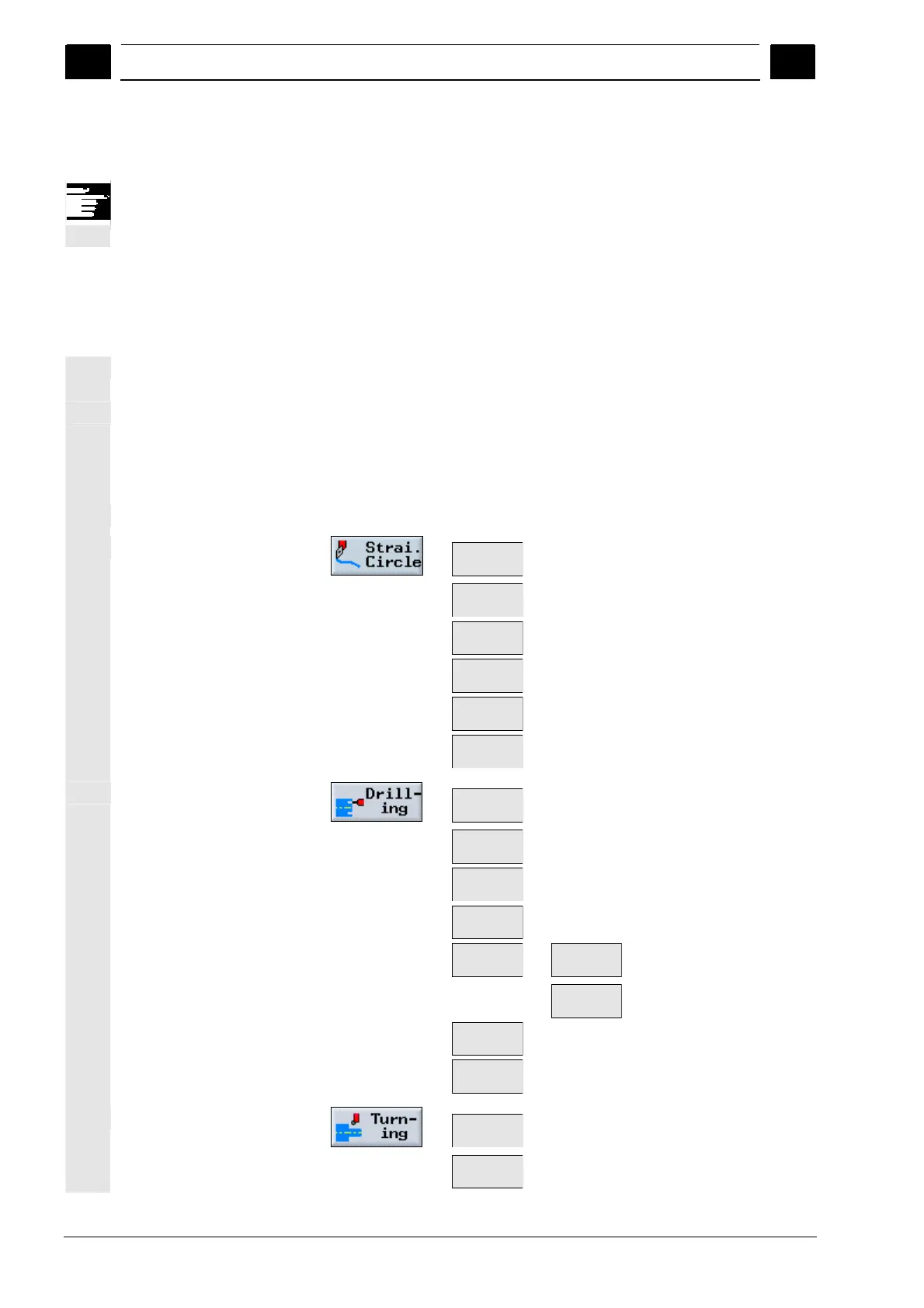

The following listed machining steps can be selected.

Tool
>
Straight
>
Circle
center >
Circle
radius >
Polar
>
Approach/
Retract >

Drilling
centric >
Thread
centric >
Drilling
Reaming >
Deep hole
drill >
Thread
>

Tapping
Thread
drilling
Positions
>
Repeat
Position >

Solid
machin. >
Recess
>

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
