Siemens SINUMERIK 840D sl Operation/Programming

5
08/2005 ShopTurn Functions
5.5 Millin
g
5
♥ Siemens AG, 2005. All rights reserved
SINUMERIK 840D sl Operation/Programming ShopTurn (BAT) – 08/2005 Edition 5-257
5.5.7 Positions

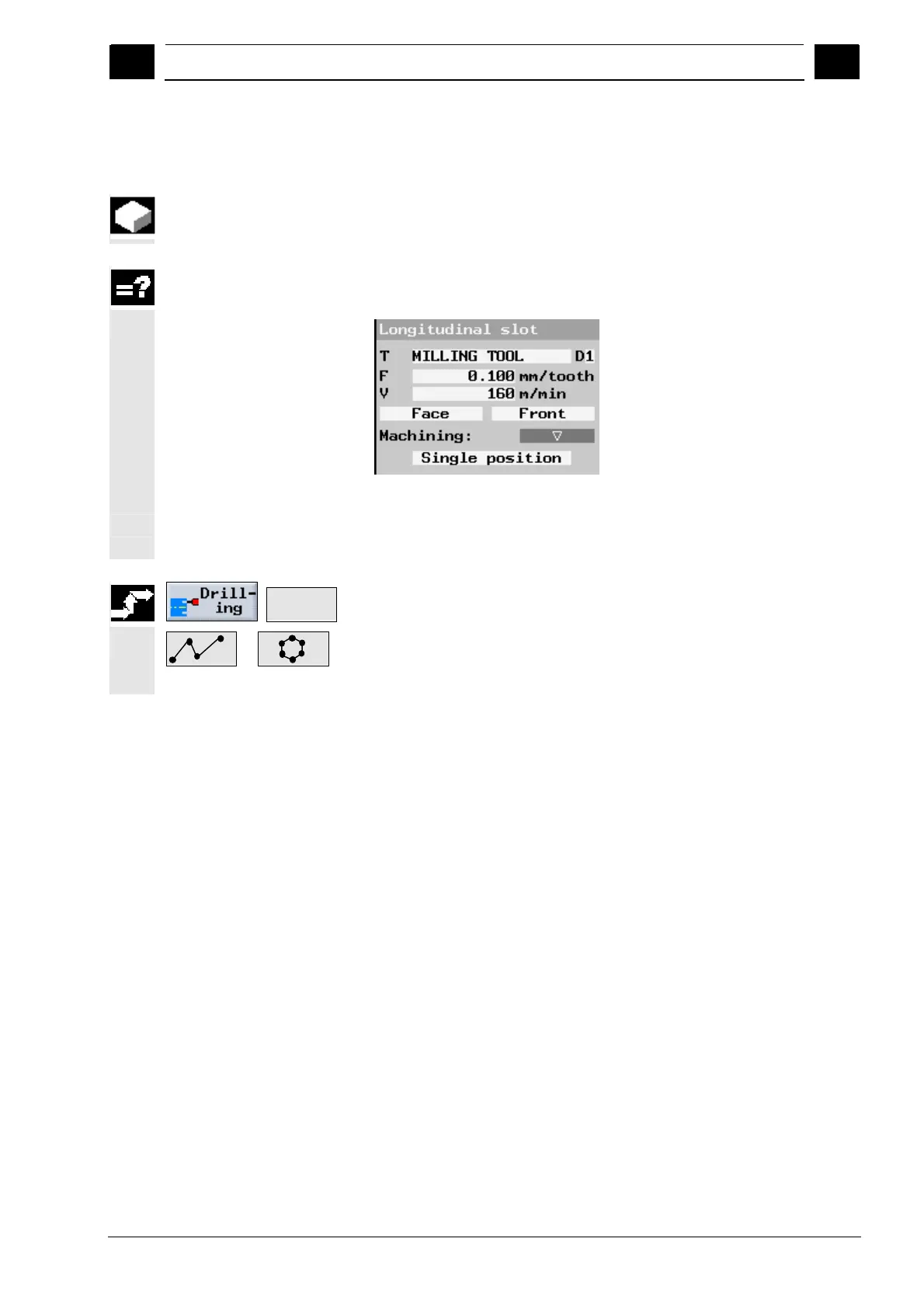

If you want to mill a pocket, spigot or longitudinal slot at more than one
position, you must program a separate positioning block.
You must set "Pos. Pattern" for the milling cycle if you want to mill at
more than one position.
Position pattern
You will find further information about freely definable positions or
position patterns in the Section "Drilling".
Positions >
¾ Press the "Drilling" and "Positions" soft keys.
...
¾ Select the required position pattern via soft key.
¾ Then proceed as described in the Section "Drilling".

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
