Siemens SINUMERIK 840D sl Operation/Programming

1
08/2005 Introduction
1.3 O
p
erator interface
1
♥ Siemens AG, 2005. All rights reserved
SINUMERIK 840D sl Operation/Programming ShopTurn (BAT) – 08/2005 Edition 1-29
1.3 Operator interface
1.3.1 Overview

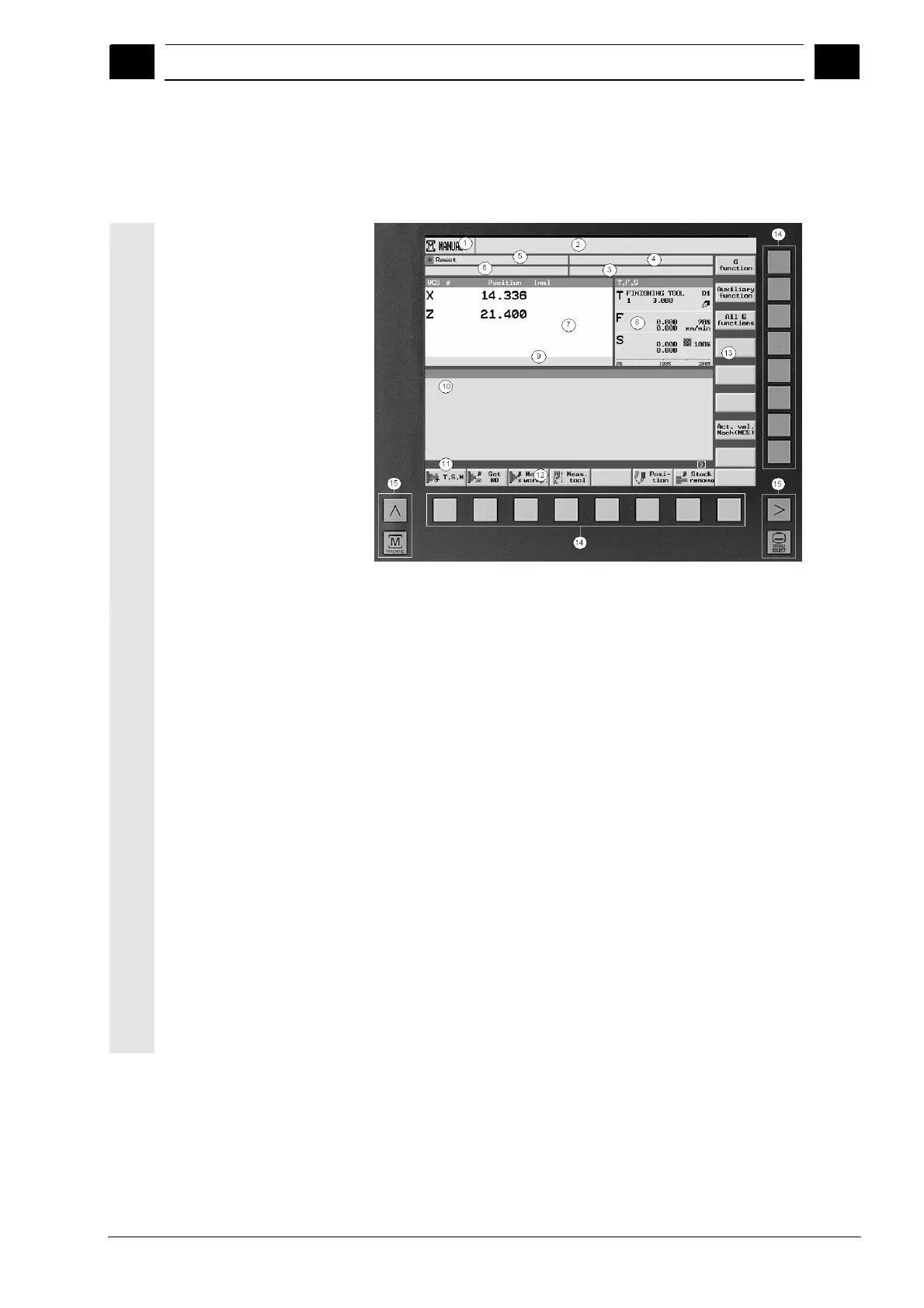

Screen layout
User interface
1 Active operating mode/operating area and secondary mode
2 Alarm and message line
3 Program name
4 Program path
5 Channel state and program control
6 Channel operational messages
7 Position display of the axes
8 Display for
 active tool T
 current feedrate F
 active spindle (S1 = main spindle, S2 = tool spindle,
S3 = counter spindle)
 spindle utilization in percent
9 Display of active work offsets and rotation
10 Working window
11 Dialog line for additional explanatory text
12 Horizontal softkey bar
13 Vertical softkey bar
14 Softkeys
15 Screen buttons

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
