Siemens SINUMERIK 840D sl Operation/Programming

2
Setting Up the Machine 08/2005
2.1 Switchin
g
on and of
f
2
♥ Siemens AG, 2005. All rights reserved
2-46 SINUMERIK 840D sl Operation/Programming ShopTurn (BAT) – 08/2005 Edition
2.1 Switching on and off
To switch the controller or machine on and off, please see the
machine manufacturer’s specifications.

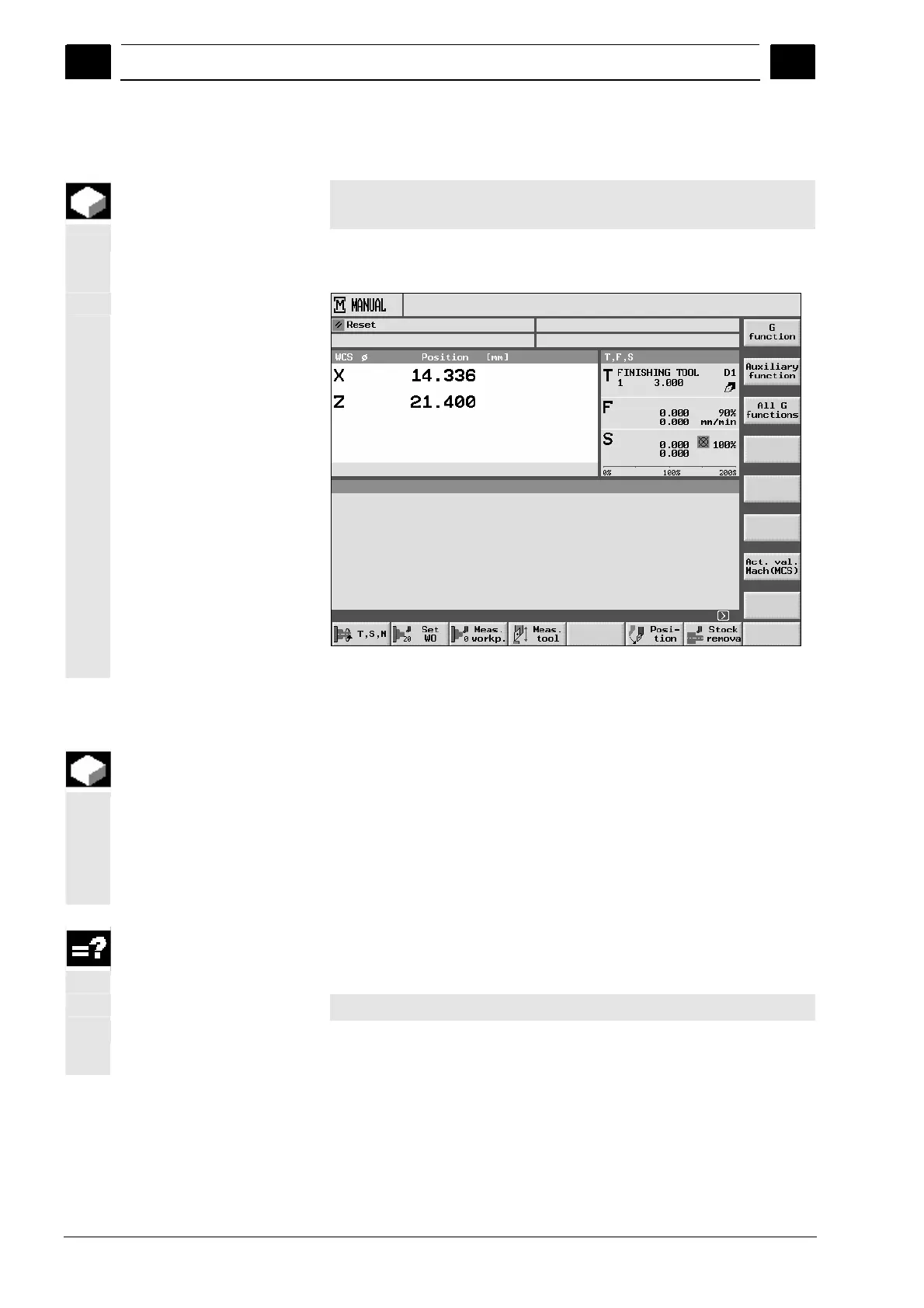

After running up the controller, the basic "Manual Machine" screen
appears.
Basic Manual machine screen
2.2 Approaching the reference point
You turning machine can be equipped with an absolute or incremental
path measuring system. An incremental path measuring system must
be calibrated after being switched on, but an absolute path measuring
system does not.
For the incremental path measuring system, all the machine axes
must therefore first approach a reference point, the coordinates of
which are known to be relative to the machine zero-point.
The sequence in which you must refer the axes is preset by the
machine manufacturer. The axes can also all approach the reference
point simultaneously, depending on the manufacturer’s settings.
Please also refer to the machine manufacturer's instructions.
During the reference point traversing, the feedrate override is in effect.

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
