1.3.2 Operating via softkeys and keys
The ShopTurn operator interface consists of various screen forms in
which there are eight horizontal and eight vertical softkeys
respectively. You operate the softkeys with the keys next to the
softkey bars.
Each softkey displays a new screen form.
ShopTurn has 3 modes (Manual Machine, MDA, and Machine Auto)
and 4 operating sections (Program Manager, Program Messages/
Alarms, and Tools/Zero-point offsets).
To switch from one operating mode/operating area to another, press
the "Menu Select" key. The main menu is displayed, in which you can
select the appropriate operating area via a softkey.

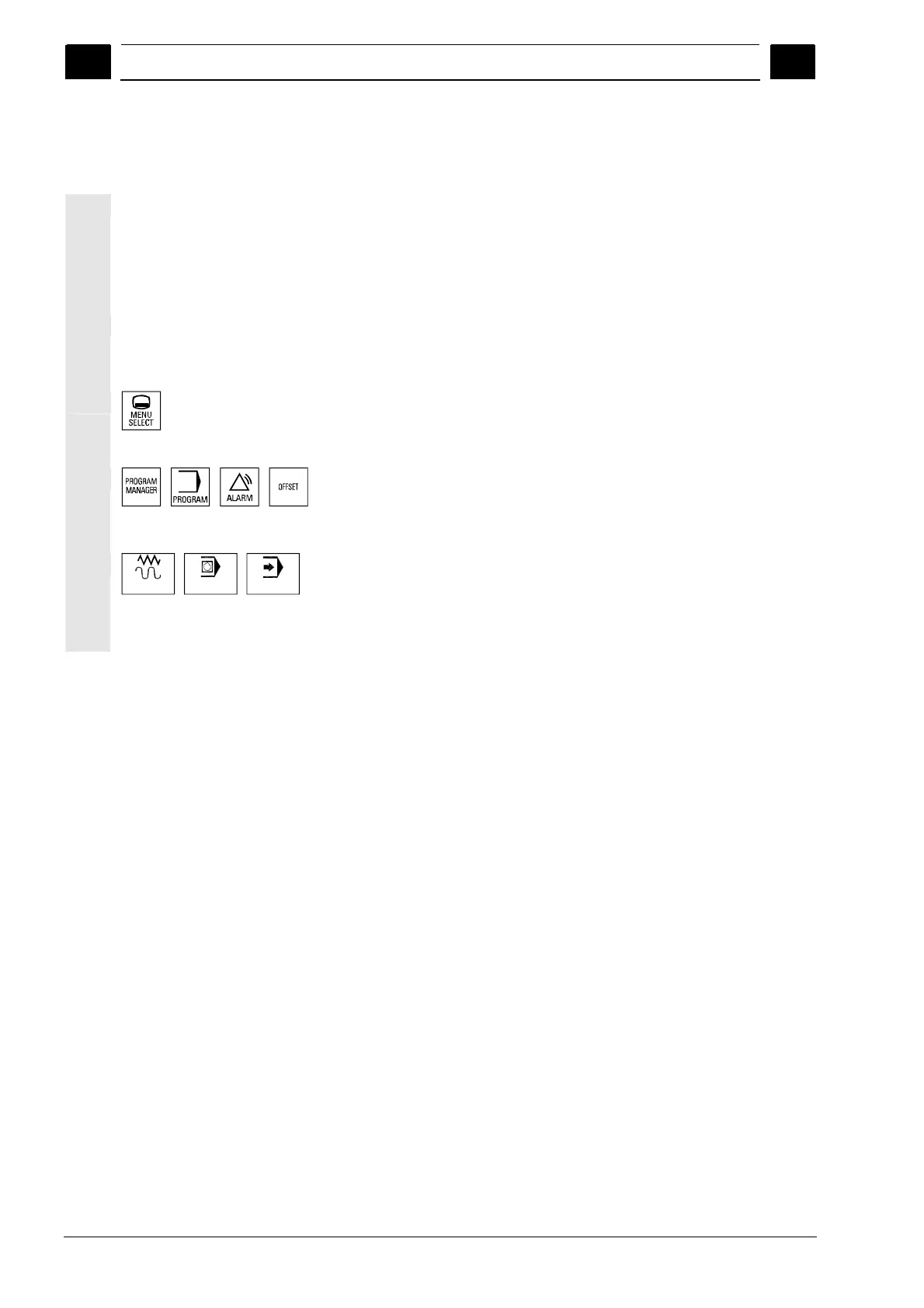

Alternatively, you can call the operating areas via the hardkeys on the
operator panel.
Jog
MDI
Auto
You can activate an operating mode directly at any time via the keys
on the machine control panel.
If you select the "Machine" softkey in the main menu, the screen form
for the currently active mode appears.

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
