Siemens SINUMERIK 840D sl Operation/Programming

1
08/2005 Introduction
1.3 O
p
erator interface
1
♥ Siemens AG, 2005. All rights reserved
SINUMERIK 840D sl Operation/Programming ShopTurn (BAT) – 08/2005 Edition 1-31
Key to the meaning of the symbol colors:
Red: Machine is stationary
Green: Machine is running
Yellow: Waiting for operator to take action
Gray: Miscellaneous

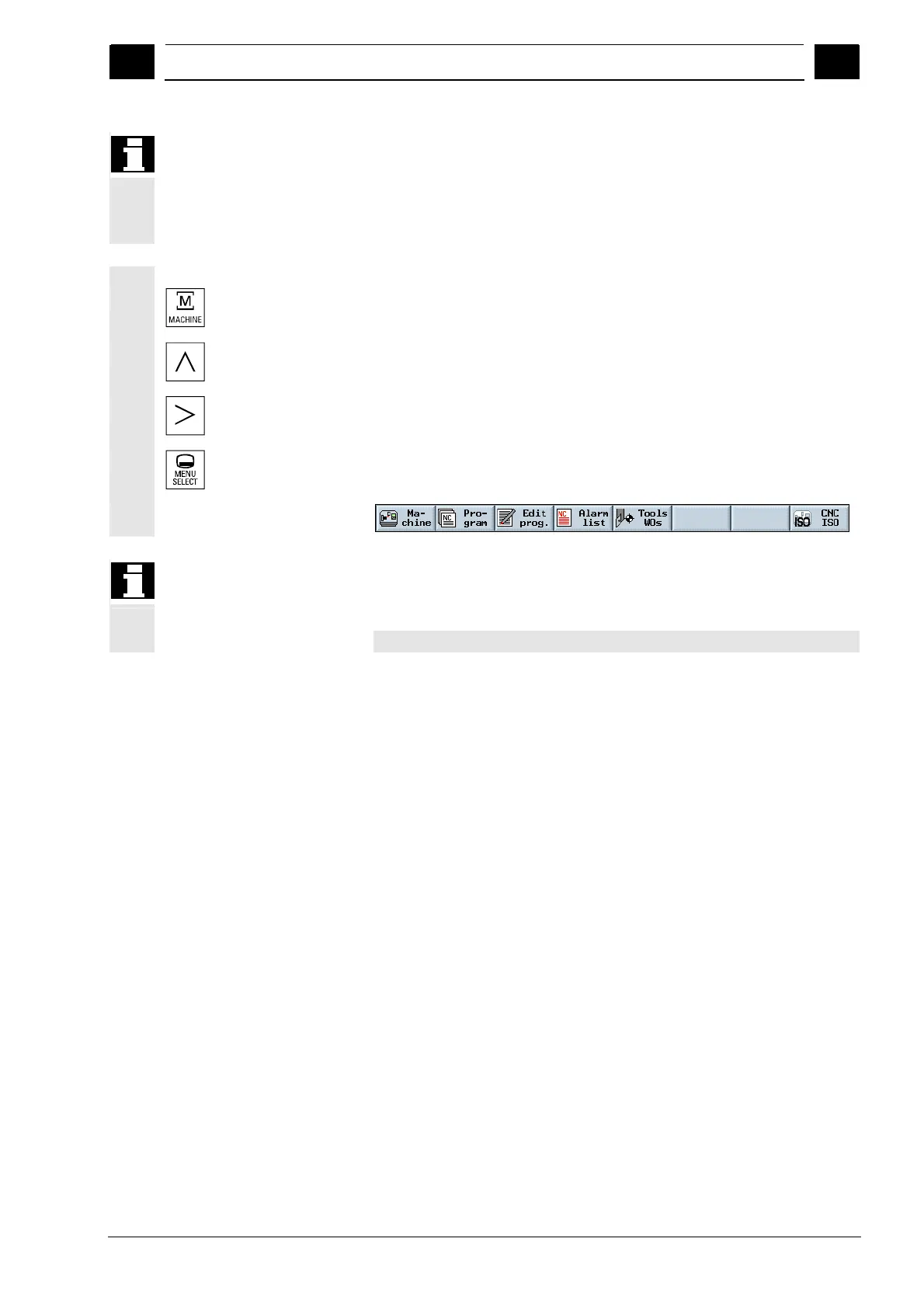

Screen buttons
Machine
Call active operating mode (Machine Manual, MDI, or Machine Auto).
Return
Has no meaning for ShopTurn.
Expansion
Changes the horizontal softkey bar.
Menu Select
Calls the main menu:
The machine manufacturer can display defined symbols instead of the
program path (4). The program path is then displayed together with
the program name (3).
Please also refer to the machine manufacturer's instructions.

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
