Siemens SINUMERIK 840D sl Operation/Programming

1
08/2005 Introduction
1.3 O
p
erator interface
1
♥ Siemens AG, 2005. All rights reserved
SINUMERIK 840D sl Operation/Programming ShopTurn (BAT) – 08/2005 Edition 1-43

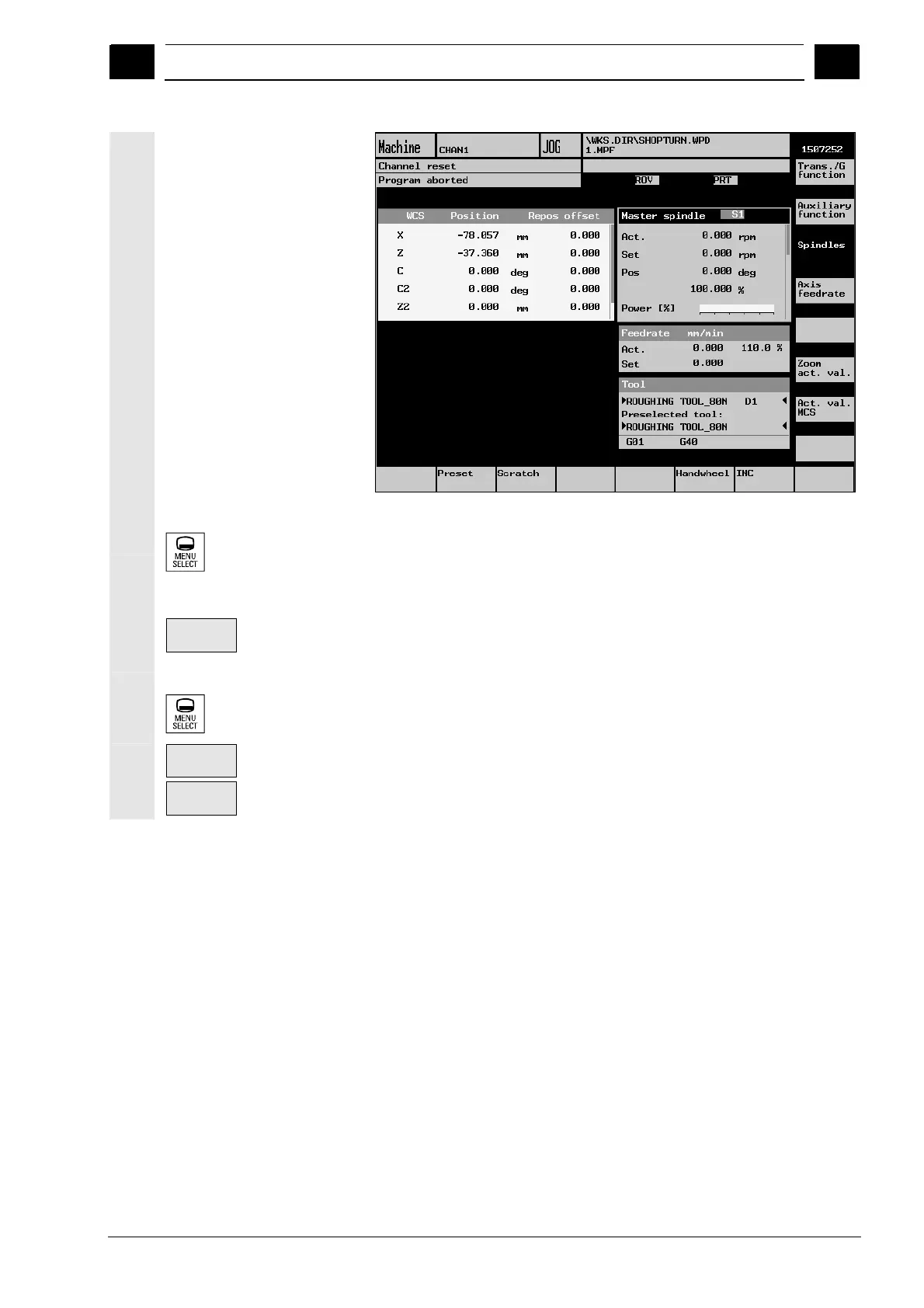

CNC-ISO operator interface
 Press the "Menu Select" key if you want to return to the ShopTurn
operator interface.
-and-
ShopTurn
 Press the "ShopTurn” softkey.
Remote diagnostics
 Press the "Menu Select" key in the CNC-ISO operator interface.
Diagnosis
 Press the "Diagnosis” softkey.
Remote
diagnosis
 Press the "Remote Diagnosis” softkey.

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
