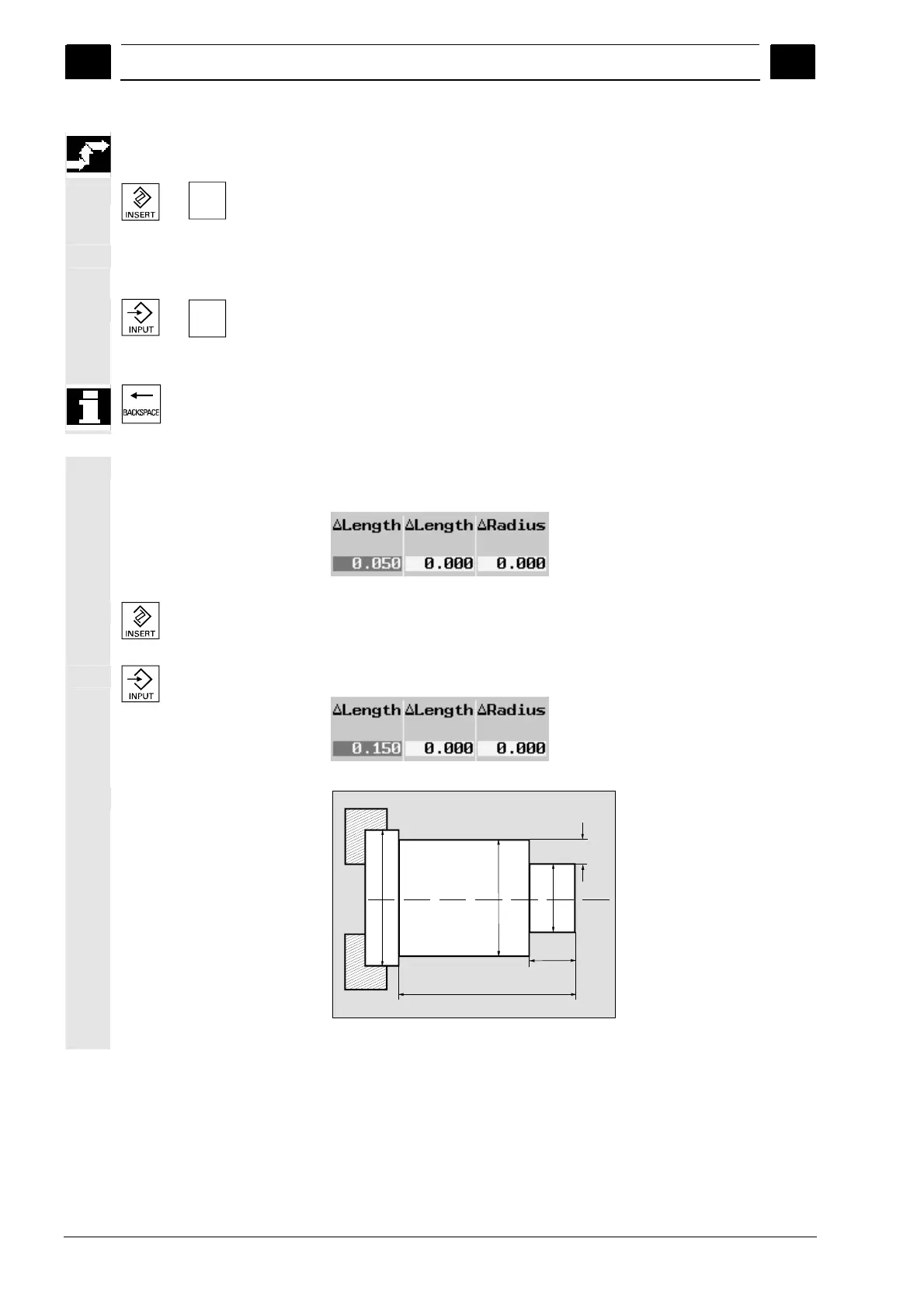

 Position the cursor on the input field of a parameter screen form.
or
=
 Press the "Insert" or "=" key.
The calculator is active.
 Input the calculating instructions.
You can use the calculation symbols, numbers, and commas.
or
=
 Press the "Input" or "=" key.
The new value is calculated and displayed in the input field. The
calculator is switched off.
If you would first like to delete an old value in an input field, press the
"Backspace" key.
Example: Tool wear +0.1
 Position the cursor on the input field ". LengthX" in the tool wear
list.
 Press the "Insert" key.
 Input the calculating instructions: + 0.1
 Press the "Input" key.
Example: Calculating the
diameter
40
160
30
Ø
50
ØA
Ø120
Workpiece drawing
