4-146 SINUMERIK 840D sl Operation/Programming ShopTurn (BAT) – 08/2005 Edition

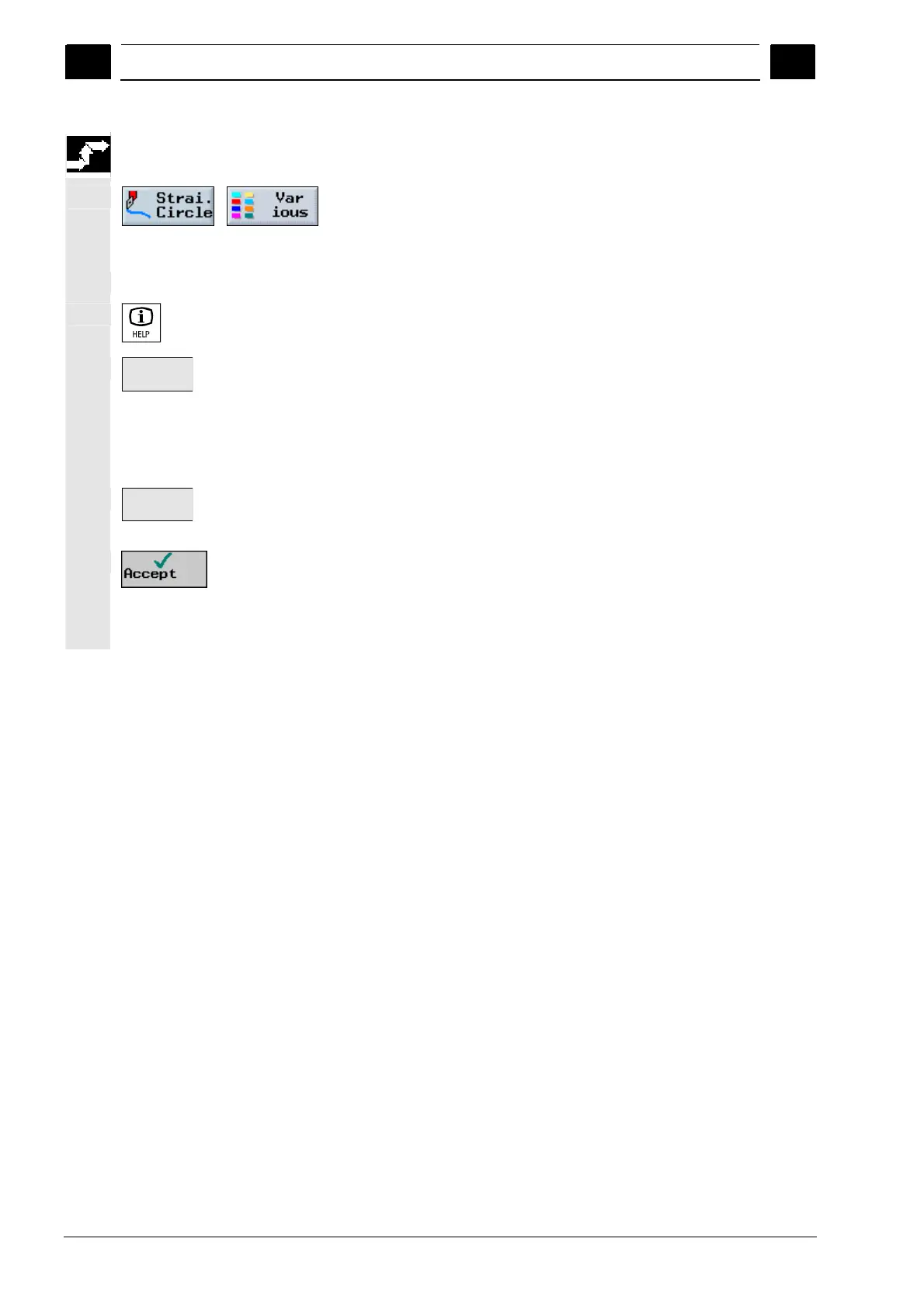

 Position the cursor in the work plan on the line behind which a
new program block is to be inserted.
...
 Using the softkeys, select the desired function (see following
section).
The corresponding parameter screen form is displayed.
 Enter the values for the individual parameters.
 Press the "Help" key if you want to see the help screen, which
explains the individual parameters.
Tools
 Press the "Tools" softkey if you want to select a tool from the tool
list for parameter "T".
-and-
 Place the cursor on the tool that you want to use for machining.
-and-
To
Program
 Press the "To Program" softkey.
The selected tool is accepted into the parameter screen form.
 Press the "Accept" softkey.
The values are stored and the parameter screen form closes. The
work plan is displayed and the newly created program block is
highlighted.

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
