Siemens SINUMERIK 840D sl Operation/Programming

1
Introduction 08/2005
1.2 Workstation
1
♥ Siemens AG, 2005. All rights reserved
1-22 SINUMERIK 840D sl Operation/Programming ShopTurn (BAT) – 08/2005 Edition

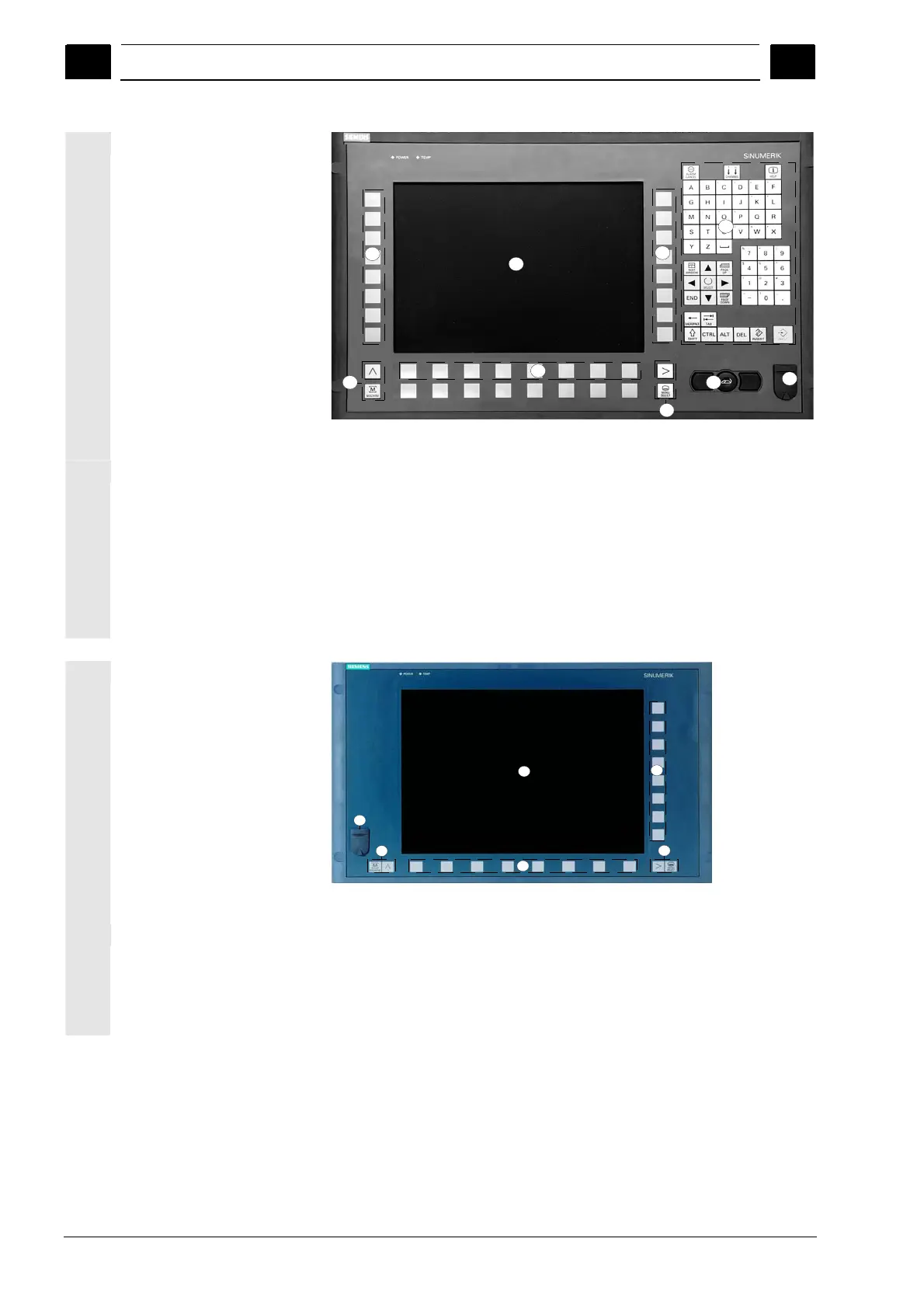

OP 012 operator panel
1
7A2
A3
A4
A2
A4
6
A5
OP 012 operator panel
1 12" screen
2 Screen keys
3 Horizontal softkey bar
4 Vertical softkey bar
5 Alphanumeric keypad
Correction/cursor pad with control keys and input key
6 USB interface
7 Mouse
Operator panel OP 015
1
5
A2
A3
A4
A2
Operator panel OP 015
1 15" screen
2 Screen keys
3 Horizontal softkey bar
4 Vertical softkey bar
5 USB interface

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
