Siemens SINUMERIK 840D sl Operation/Programming

1
Introduction 08/2005
1.2 Workstation
1
♥ Siemens AG, 2005. All rights reserved
1-24 SINUMERIK 840D sl Operation/Programming ShopTurn (BAT) – 08/2005 Edition

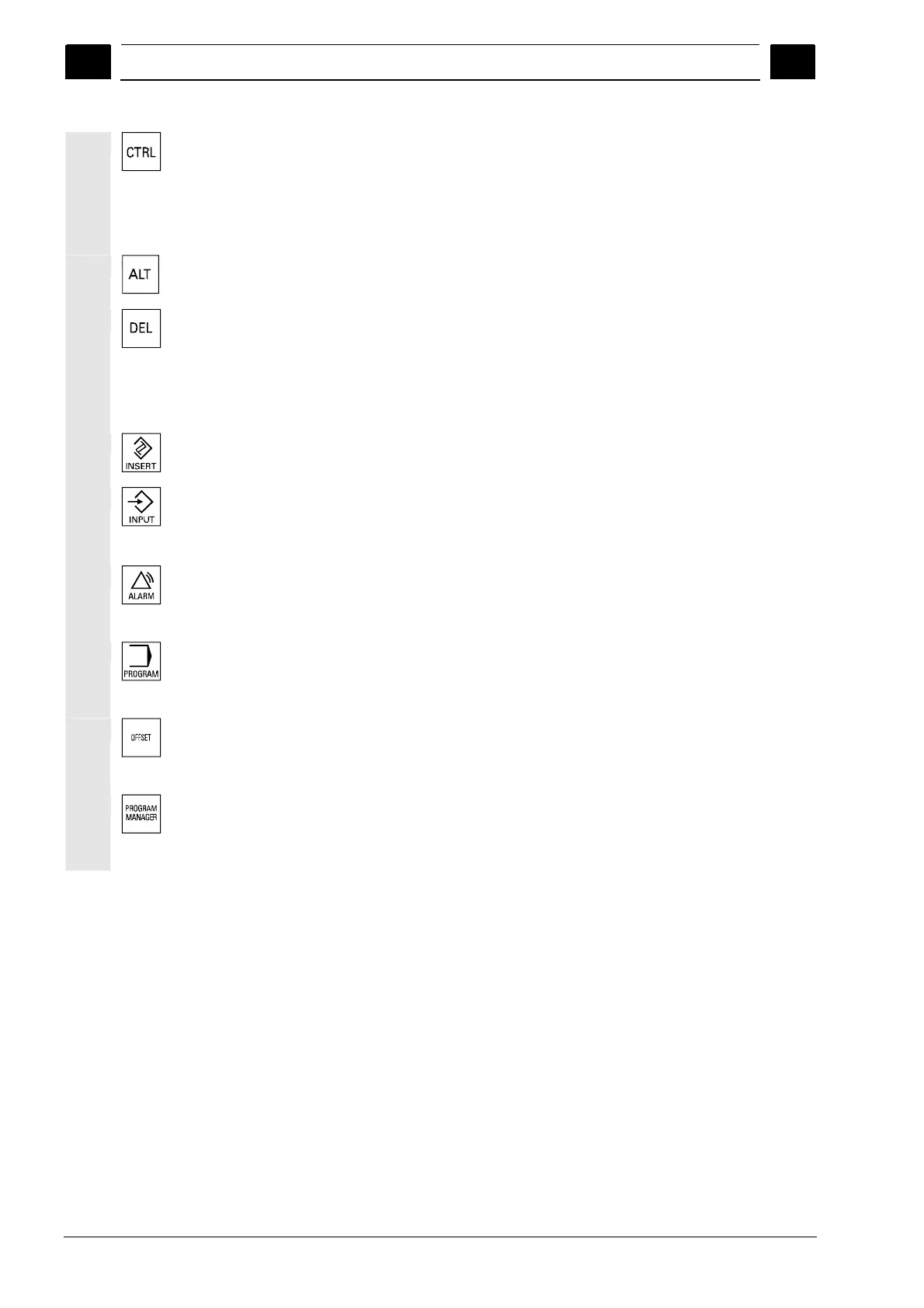

Ctrl
Use the following key combinations to navigate in the process plan
and in the G code editor:
 Ctrl + Home: Jump to the beginning.
 Ctrl + End: Jump to the end.
Alt
Has no meaning for ShopTurn.
Del
 Deletes the value in the parameter field.
 In insertion mode, it deletes the character marked by the cursor.
 Deletes the machining lines during parallel drawing and in the
simulation.
Insert
Activates insertion mode or the pocket calculator.
Input
 Terminates entry of a value in the input field.
 Opens a directory or program.
Alarm - only OP 010 and OP 010C
Opens the "Messages/Alarms" operating area.
This key has the same function as the "Alarm list" softkey.
Program - only OP 010 and OP 010C
Opens the "Program" operating area.
This key has the same function as the "Prog. edit" softkey.
Offset - only OP 010 and OP 010C
Opens the "Tools/Offsets" operating area.
This key has the same function as the "Tool zero point" softkey
Program Manager - only OP 010 and OP 010C
Opens the "Program Manager" operating area.
This key has the same function as the "Program" softkey.

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
