Siemens SINUMERIK 840D sl Operation/Programming

5
08/2005 ShopTurn Functions
5.12 Definin
g
coordinate trans
f
ormations
5
♥ Siemens AG, 2005. All rights reserved
SINUMERIK 840D sl Operation/Programming ShopTurn (BAT) – 08/2005 Edition 5-325

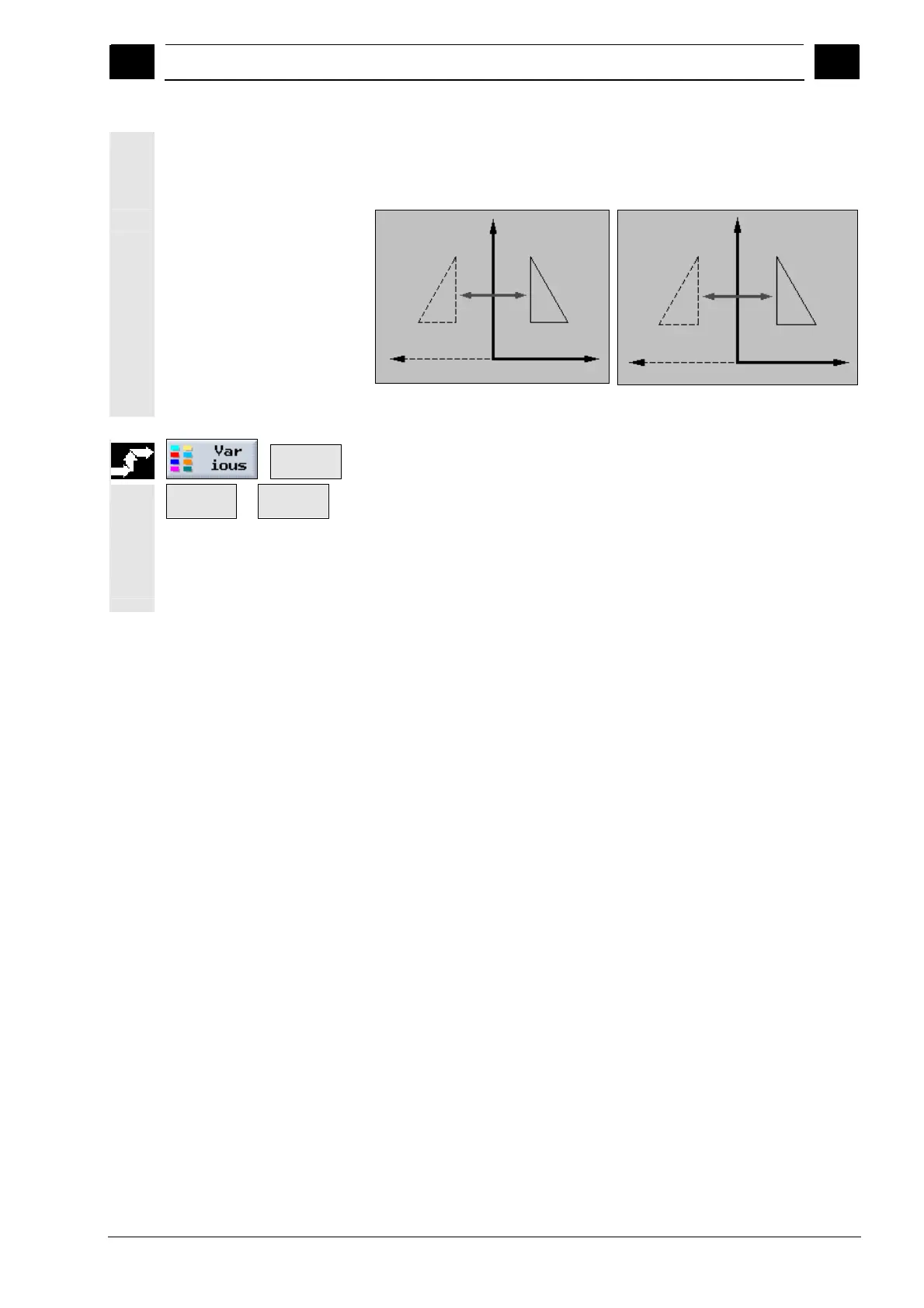

 Mirroring
Furthermore, you can mirror all axes.
Enter the axis to be mirrored in each case.
New mirroring
Additive mirroring
Transfor-
mation >
 Press the "Various" and "Transformation" softkeys.
Offset
>
...
Mirroring
>
 Select the coordinate transformation using the softkey.
 Select whether you want to program a new or an additive
coordinate transformation.
 Enter the desired coordinates.

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
