ShopTurn does not display user data of the AXIS and FRAME type.
To learn which variables ShopTurn displays, please see the machine
manufacturer’s specifications.

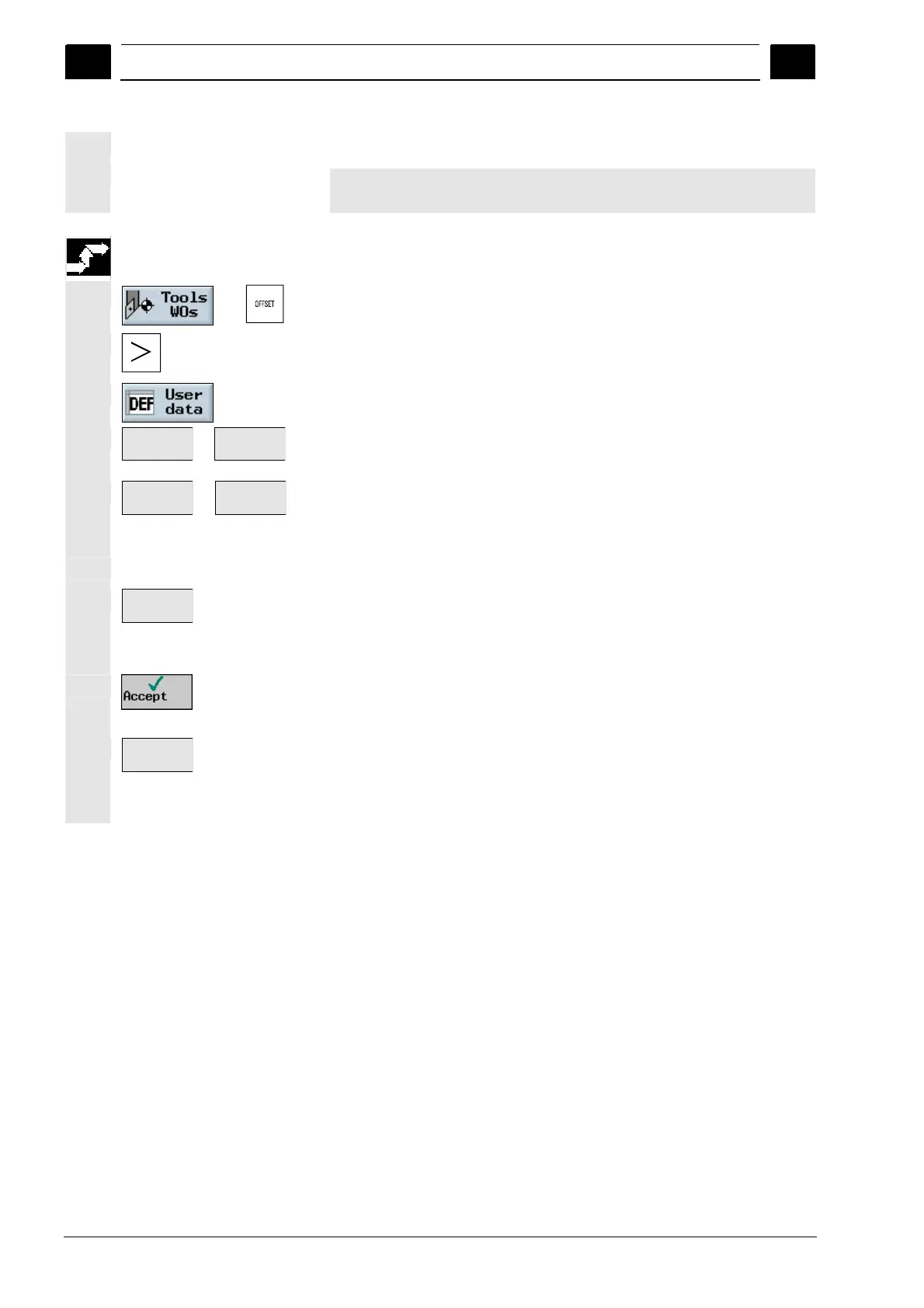

Displaying user data
-or-
 Press the "Tools WOs" softkey or the "Offset" key.
 Press the "Expansion" key.
 Press the "User data" softkey.
Global
user data
...
Program
user data

A
ctivate one of the softkeys to choose the user data that you want
to display.
GUD +
or
GUD –
 You can press the "GUD +" and "GUD -" softkeys to display the
global and channel-specific user data from GUD 1 to GUD 9.
Find user data
Search
 Press the "Search" softkey.
 Enter the text string that you want to locate.
You can search for any character string.
 Press the "Accept" softkey.
The user data is displayed.
Find next
 Press the "Find next" softkey to continue the search, as
necessary.
The next user data that contains the search string is displayed.

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
