Siemens SINUMERIK 840D sl Operation/Programming

2
Setting Up the Machine 08/2005
2.5 Tools
2
♥ Siemens AG, 2005. All rights reserved
2-60 SINUMERIK 840D sl Operation/Programming ShopTurn (BAT) – 08/2005 Edition

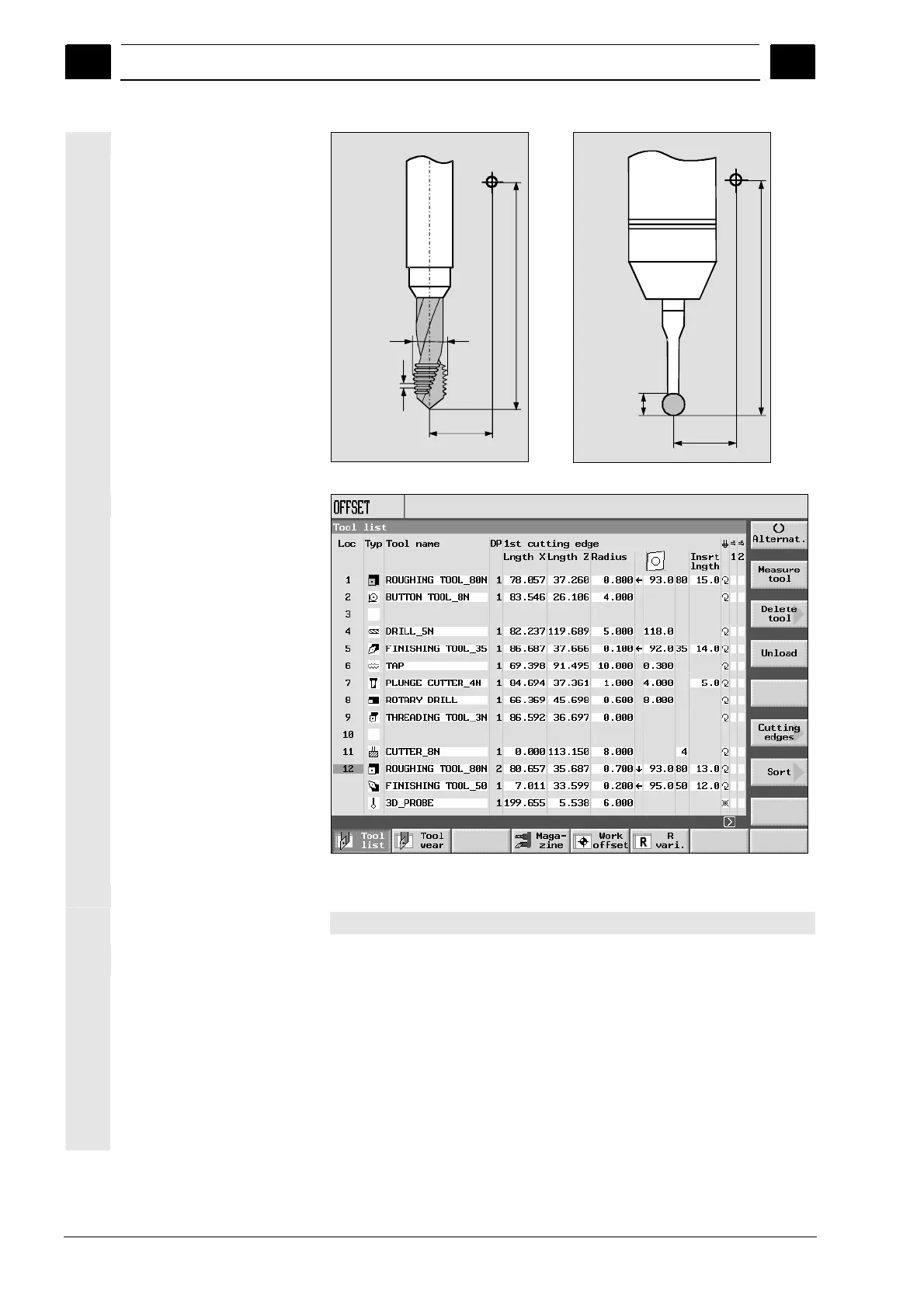

Length X
Length Z
Diameter
Pitch
Screw tap
Length Z
Length X
Diameter
3D probe
Tool list
The tool list is adapted by the machine manufacturer if necessary.
Please also refer to the machine manufacturer's instructions.
Loc. Location number in the magazine
The tool’s location number, which is located in the revolver in the
machining position, has a gray background.
If you are working with several magazines, then you will first see the
magazine number and then the location number inside the magazine
(e.g. 1/10). Tools that are not currently located in the magazine are
displayed without a location number. (You will find these tools when
sorting for a magazine location at the end of the tool list.)

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
