Siemens SINUMERIK 840D Operation/Programming

3
Programming with ShopMill 10.04
3.7 Drillin
g
3
 Siemens AG, 2004. All rights reserved
3-248 SINUMERIK 840D/840Di/810D Operation/Programming ShopMill (BAS) – 10.04 Edition
Select with softkey
Positions >
Call help display with
the
key

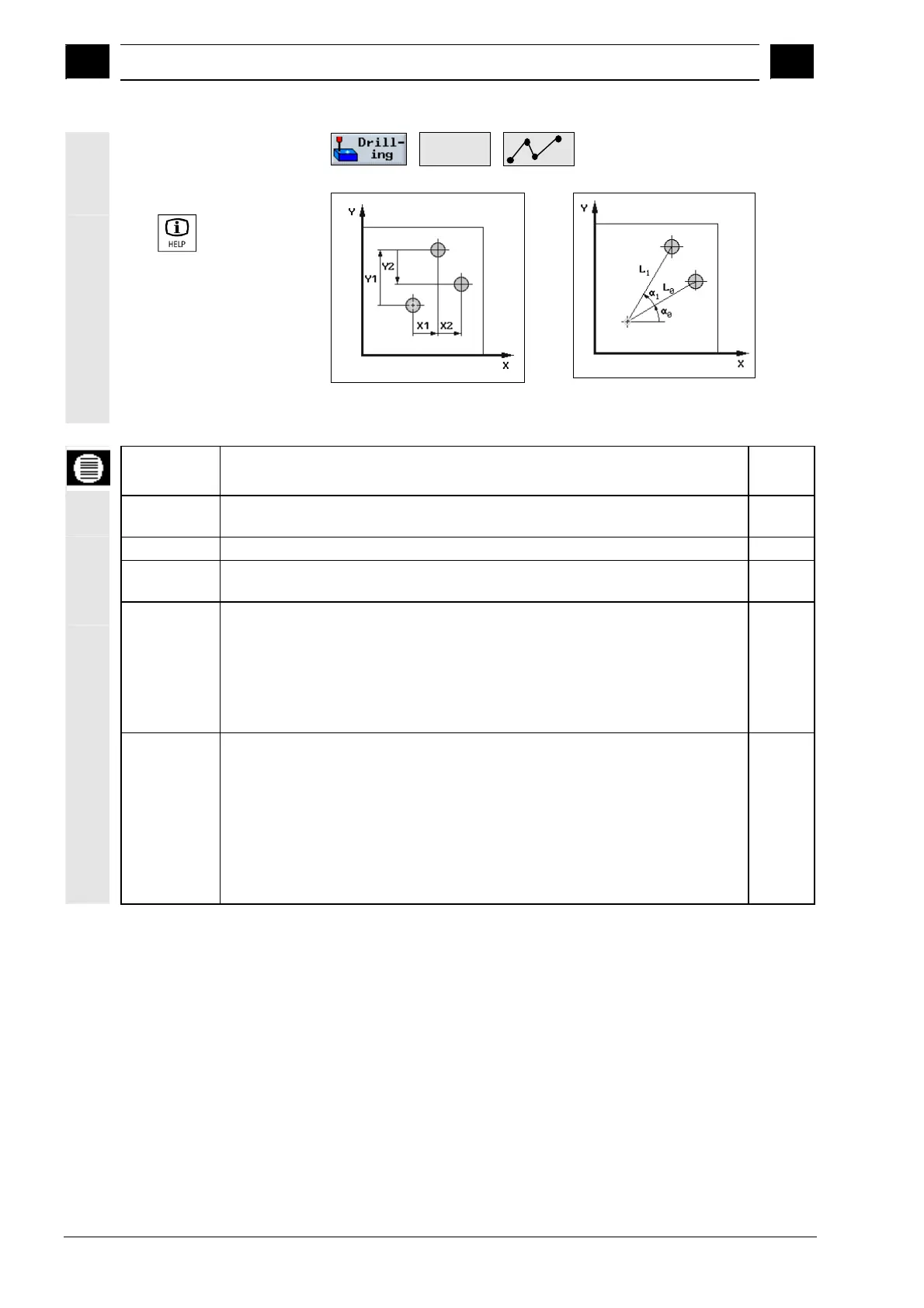

Help display for "Freely programmable
positions, rectangular"
Help display for "Freely programmable
positions, polar"
Parameters Description XY
(without A/ or B axis support)
Unit
Rectangular/
polar
Programming with rectangular or polar dimensions.
Z0 Height of workpiece (abs. or inc.) mm
X0
Y0
1. position of the hole in X (abs. or inc.)
1. position of the hole in Y (abs. or inc.)
mm
mm
Rectangular:
X1 ... X8
Y1 ... Y8
Other positions in the X axis (abs. or inc.)
Other positions in the Y axis (abs. or inc.)
If you want to program further positions, store the ones you have already
programmed and then open the parameter input form again by pressing softkey "Any
positions".
mm
mm
Polar:
L1... L7
α1 ... α7
Position distance (abs.)
A
ngle of rotation of line in relation to the X axis.
Positive angle: Line is rotated counterclockwise.
Negative angle: Line is rotated clockwise.
If you want to program further positions, store the ones you have already
programmed and then open the parameter input form again by pressing softkey "Any
positions".
mm
Degr.
