Examples 10.04
9.2 Exam
p
le 2: Translation and mirrorin
g
of a contour
9
 Siemens AG, 2004. All rights reserved
9-428 SINUMERIK 840D/840Di/810D Operation/Programming ShopMill (BAS) – 10.04 Edition
New/additive
Add
X
On
Y
On
Z
Off
•
8. Repetition of contour
• Select via the
Repetition
>
softkeys
• Set the following markers:
Start marker
Marker 1
End marker
Marker 2
Number of
repetitions
1
•
Result

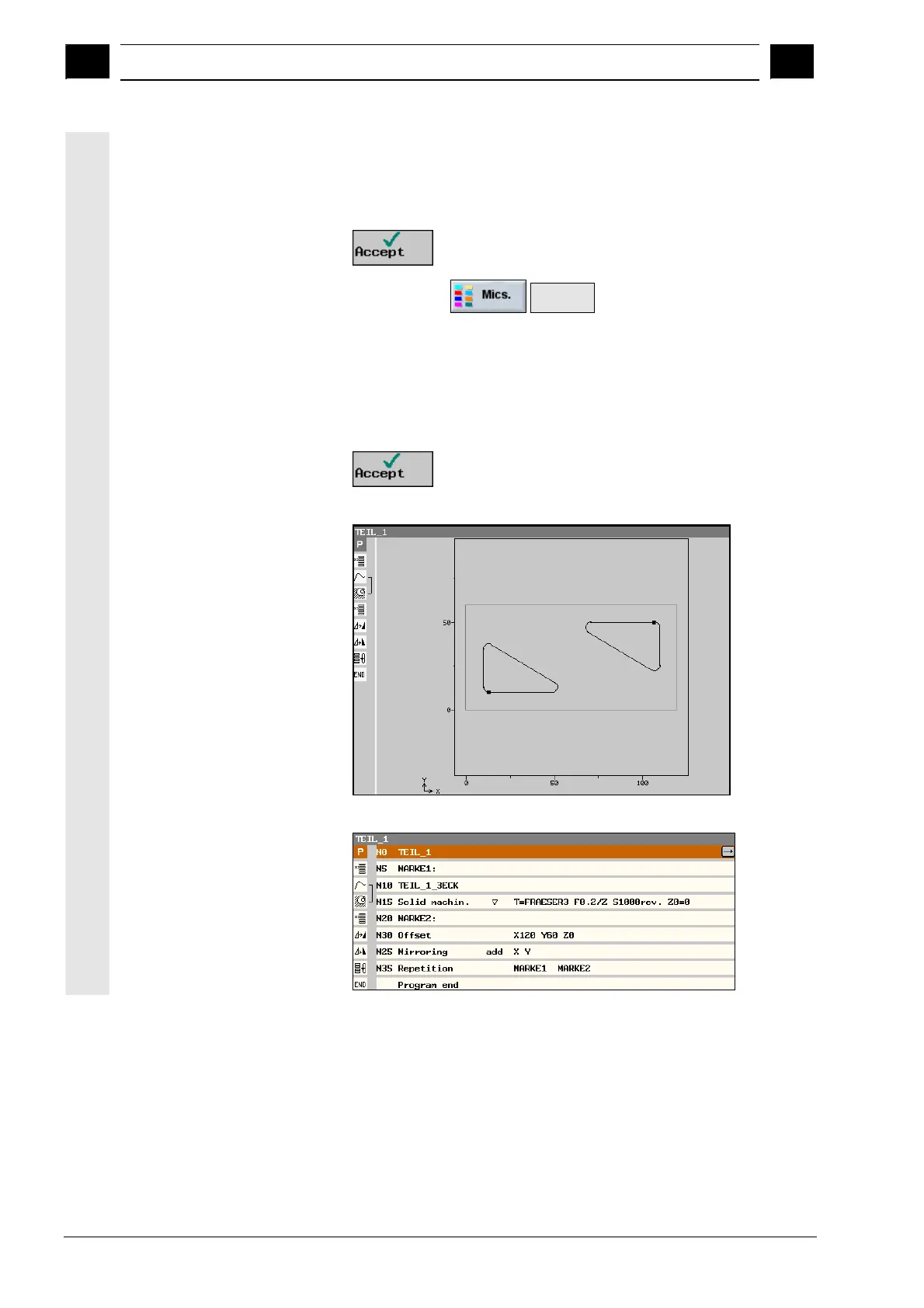

• Programming graphics
• ShopMill program representation
