Siemens SIPROTEC 5 V8.83

Terminal and Connection Diagram
For the binary inputs and outputs, the x corresponds to the slot in the 19-inch rack.
[cd_io216, 1, en_US]
Figure 3-58

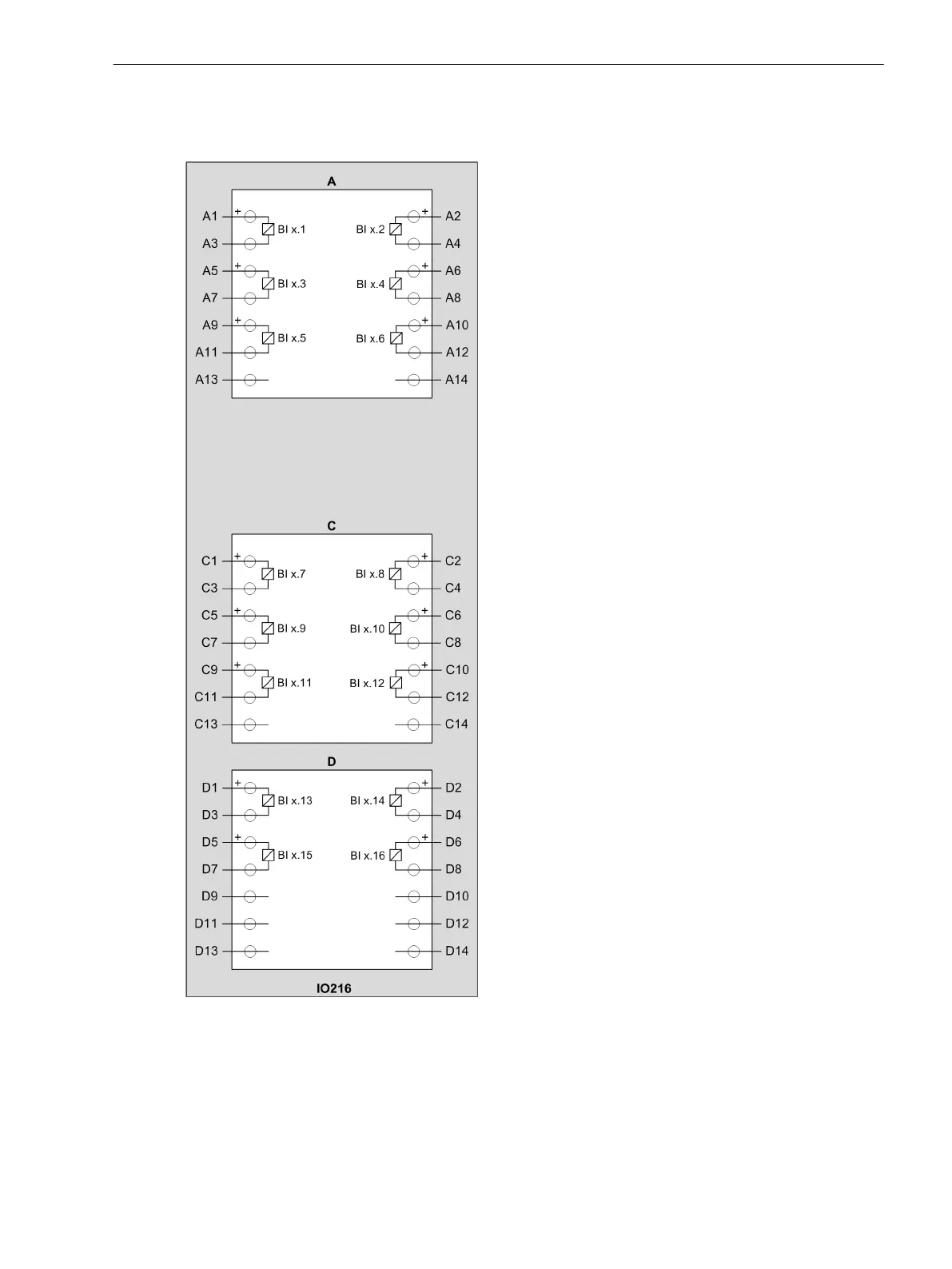

IO216 – Terminal Diagram
Electronic Modules
3.2 Input and Output Modules of the Modular Devices
SIPROTEC 5, Hardware Description, Manual 103
C53000-G5040-C002-M, Edition 12.2021
