Fastening Openings
[dwbaaube-040211-01.tif, 2, --_--]

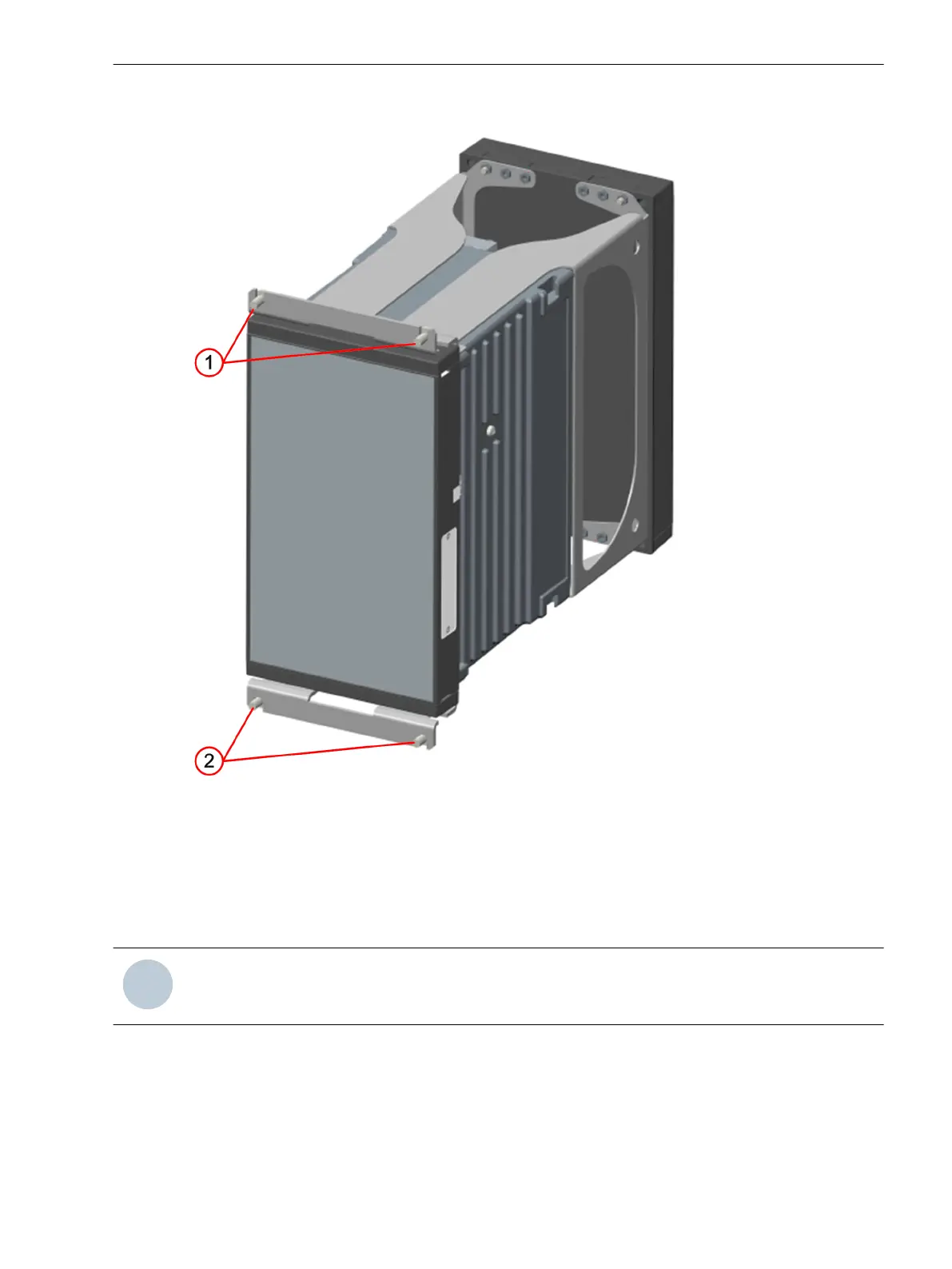

Figure 2-13
Fastening Openings of the Base Module
(1) Top fastening openings
(2) Bottom fastening openings
Description of the Non-Modular Surface-Mounted Device
i
i
NOTE
The basic device structure is described in chapter 2.1.1 Description .
The non-modular device variant is designed for mounting to a flat wall surface. This variant is created by flush-
mounting the non-modular device into the surface-mounting bracket. In this process, you may face the
opening as needed upward (cables coming from above) or downward (cables coming from below) as shown
in the following figure. You can order the surface-mounting bracket individually.
2.2.2
Forms of Devices and On-Site Operation Panels
2.2 Surface-Mounted Devices with Integrated On-Site Operation Panel
SIPROTEC 5, Hardware Description, Manual 31
C53000-G5040-C002-M, Edition 12.2021
