Terminals
Overview of Terminals
[le_ps201, 3, --_--]

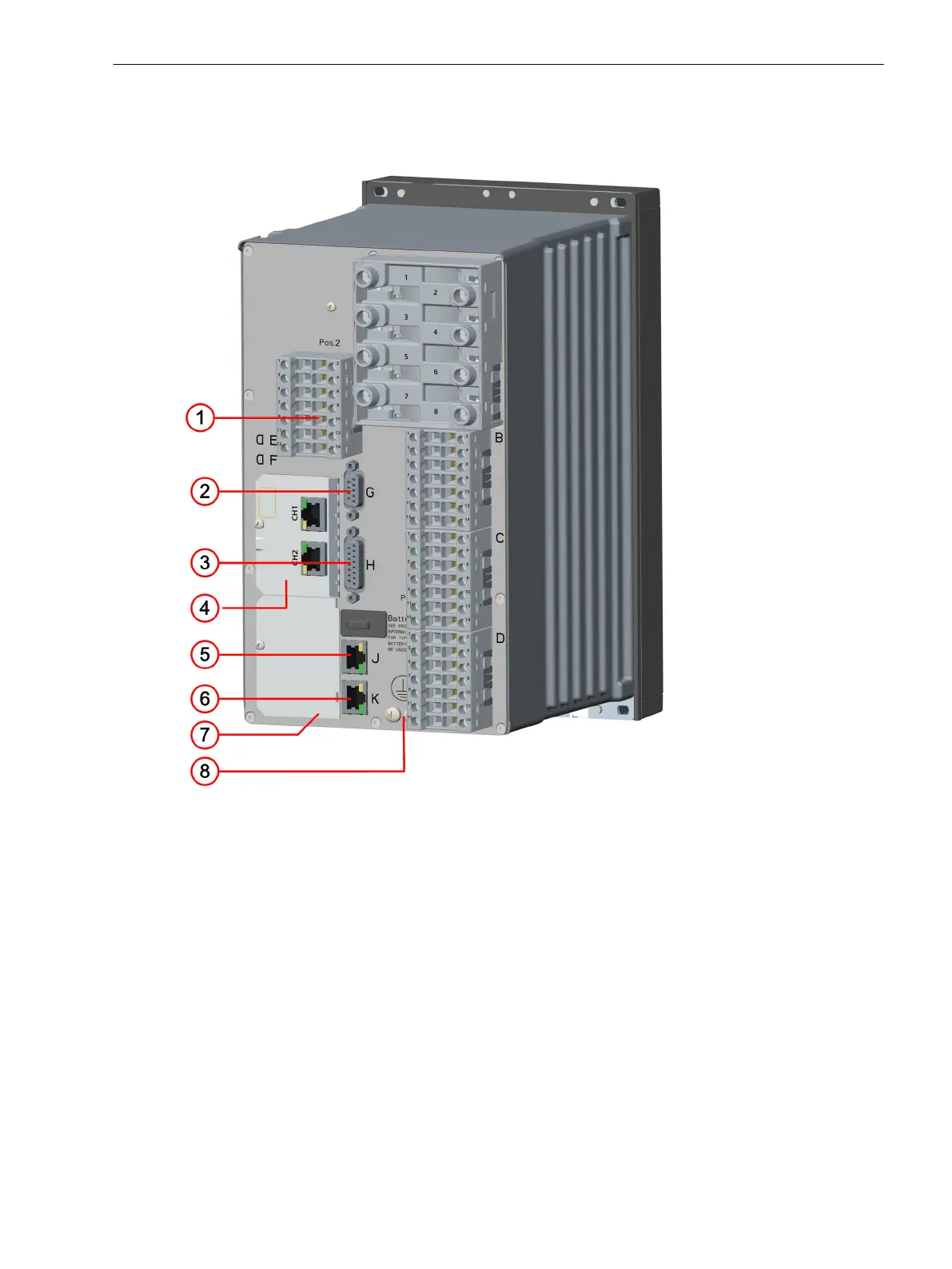

Figure 3-1
PS201 – Terminals
(1) Voltage terminal 2B
(2) Time synchronization G
(3) Terminal for detached on-site operation panel H
(4) Plug-in module position E
(5) Integrated Ethernet interface J
(6) COM link K, connection to the CB202 plug-in module assembly, position K
(7) Plug-in module position F
(8) Protective grounding terminals
3.1.2.2
Electronic Modules
3.1 Power-Supply Modules of the Modular Devices
SIPROTEC 5, Hardware Description, Manual 49
C53000-G5040-C002-M, Edition 12.2021
