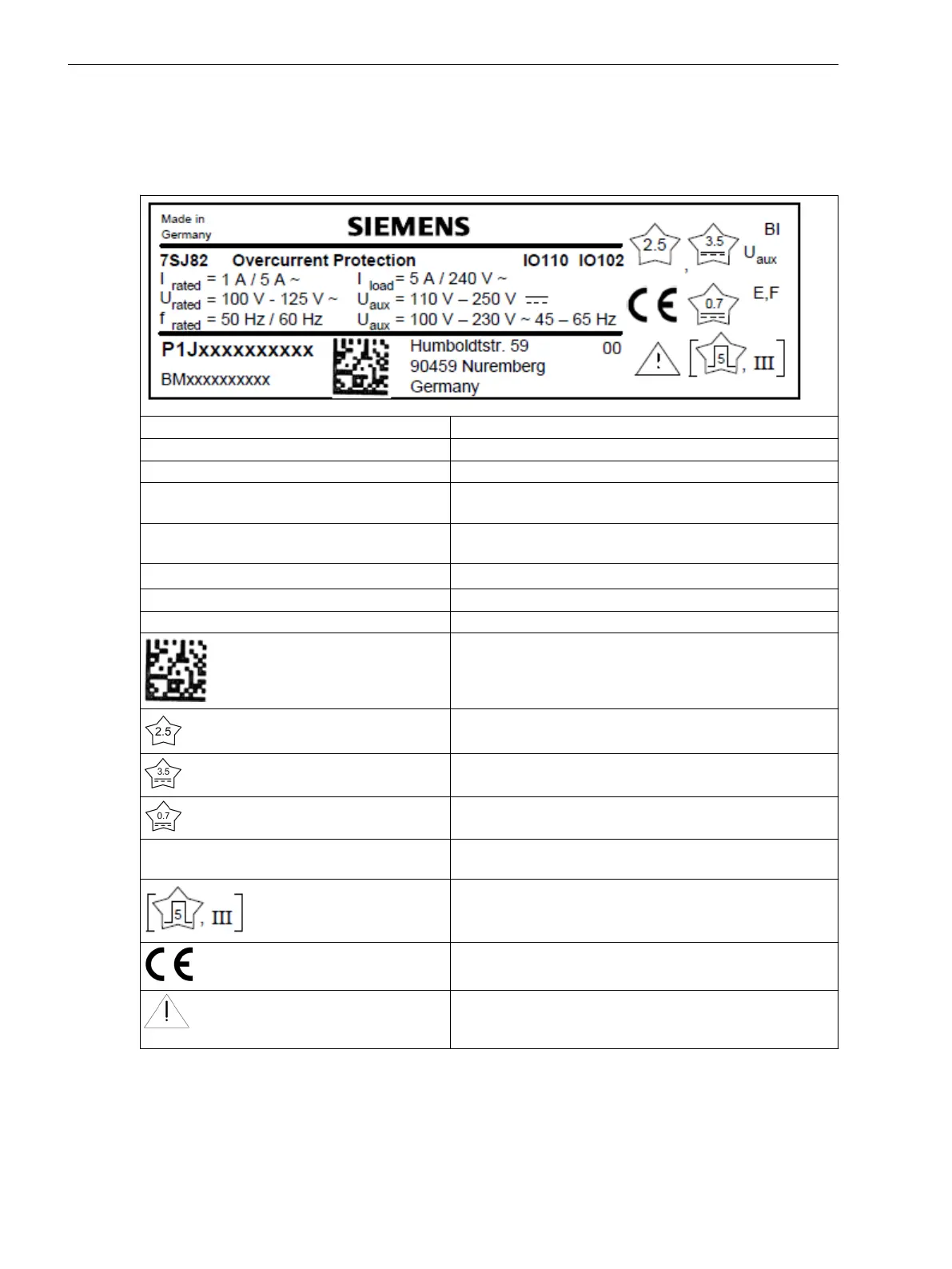

Name Plate of Non-Modular Devices (7xx81, 7xx82)
In the following table, the name plate of a non-modular device is explained as an example. The name plate is
located on the device.
7SJ82 Device type
Overcurrent Protection Product group
IO110 IO102 Designation of the I/O modules
I
rated
, V
rated
, f
rated
Rated values (which are specified when current and/or
voltage transformers are placed on the module.)
I
load
This value is specified when relays are placed on the
module.
V
aux
Values for the power supply
P1JXXXXXXXXXX Technical Numbering System (TNS), maximum 18 digits
BMXXXXXXXXXX Serial number
QR code
Insulation test of the voltage inputs, current inputs, and
binary outputs with AC 2.5 kV
Insulation test of the power supply (V
aux
) and binary inputs
(BI) with DC 3.5 kV
Insulation testing of all sealed-off interfaces with DC 700 V
E, F Designation of the ports into which the plug-in modules are
plugged.
5 kV impulse voltage test [type test] in compliance with
Class III
European CE marking
Pay attention to the overall documentation for the device
(Product information, Device manual, Hardware manual,
Operating manual, and Communication protocol manuals)
6.16
Technical Data
6.16 Name Plate of Non-Modular Devices (7xx81, 7xx82)
272 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-M, Edition 12.2021
