[dweinzei-030211-01.tif, 2, --_--]

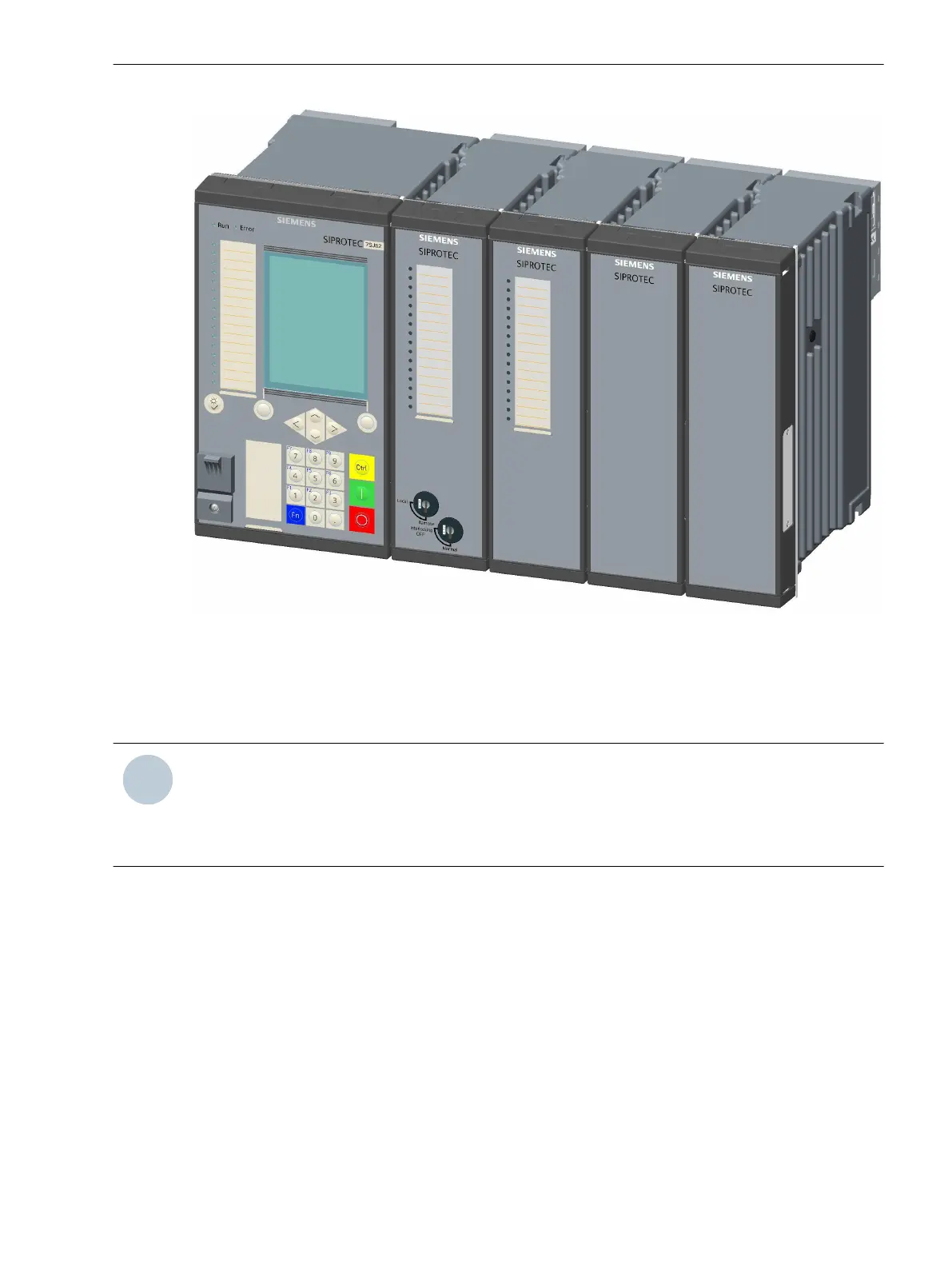

Figure 5-1
Device Row of a Flush-Mounting Device
Expanding 1st Device Row
Preparation
NOTE
Reordered modules are not contained in the original device configuration. Use DIGSI to perform the corre-
sponding extension in the Hardware and Protocols Editor.
Carry out the steps described in this chapter if you wish to expand an installed device later on with expan-
sion modules.
²
Shut down the device.
²
Use the screwdriver to carefully bend the left and right spring clips on the rear plate terminals outwards.
²
Completely detach the wired current and voltage terminal blocks from the device.
²
Remove all communication lines.
²
Remove the plastic screw covers.
²
Remove the device.
²
Expand the cut-out in the control cabinet.
²
Then continue with assembly.
Assembling the Devices
²
Remove the bus cover from the extreme right-hand module of the device to be expanded.
5.2.1.2
Working on the Device
5.2 Expanding Modular Devices
SIPROTEC 5, Hardware Description, Manual 185
C53000-G5040-C002-M, Edition 12.2021
