[tdio101x-220513-01.tif, 1, en_US]

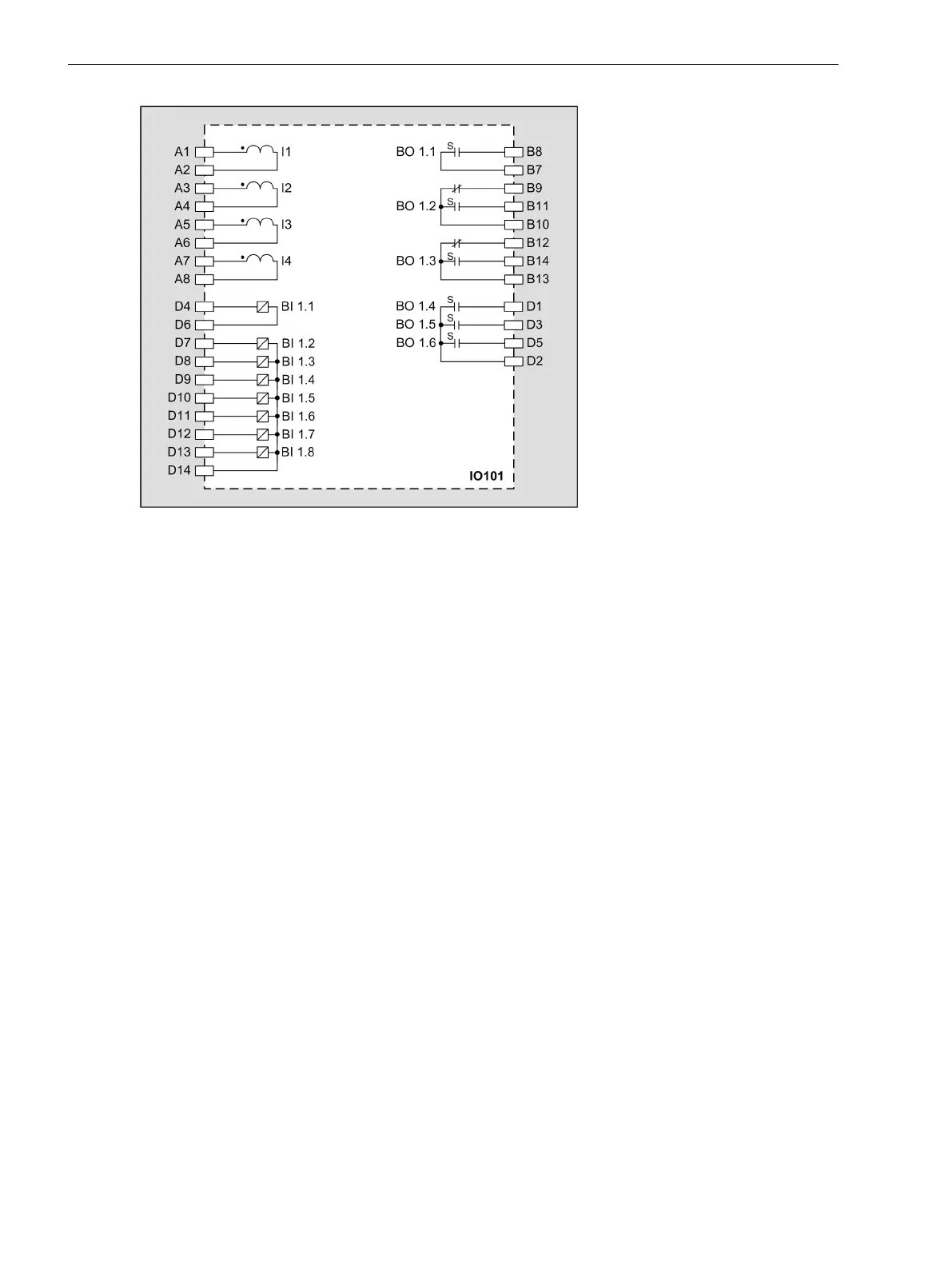

Figure 3-82 IO101 – Connection Diagram
Input and Output Module IO102
Description
The terminals for the following are located on the input and output module IO102:
4 current transformers (3 transformers always as protection-class current transformers, the 4th optionally
as protection-class or instrument transformer)
4 voltage transformers
8 binary inputs
6 binary outputs, of which:
4 standard make contacts (type S)
2 standard change-over contacts (type S)
The connections are distributed over:
1 x 8-pole current terminal
2 x 14-pole voltage terminal
3.4.3
3.4.3.1
Electronic Modules
3.4 Input and Output Modules of Non-Modular Devices (7xx81, 7xx82)
132 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-M, Edition 12.2021
