USART-AW-2LDFO
Description Protection-interface module for synchronous operation with 2 optical
interfaces
Product code P1Z772

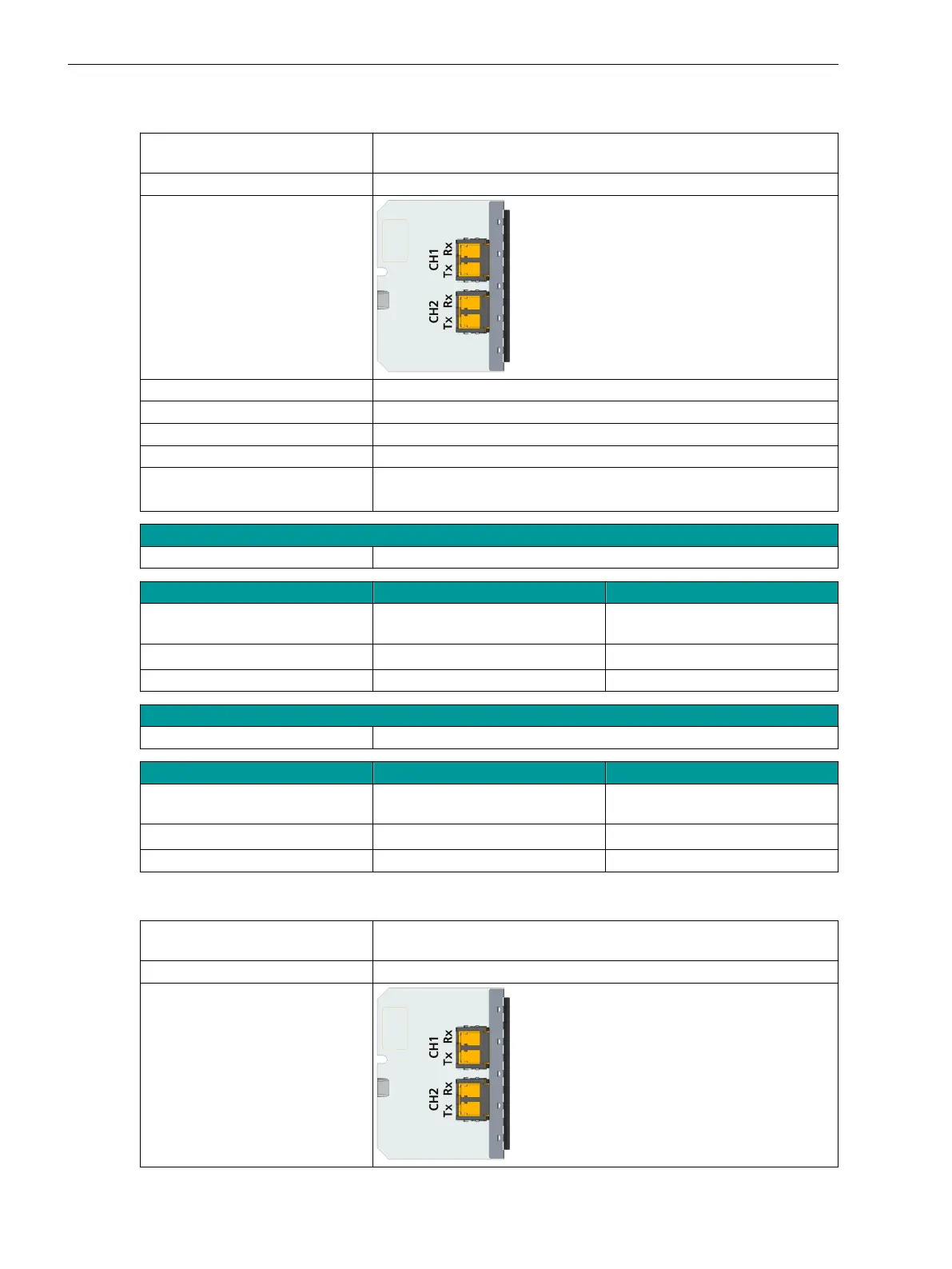

Figure
Connector type 2 x duplex LC
Wavelength λ = 1300 nm
Baud rate 2 Mbit/s for the protection-interface communication
Protocol Protection-interface communication
Max. line length 24 km for singlemode optical fibers or
4 km with multimode optical fiber
Distance 4 km
Laser class 1 as per EN 60825-1/-2 With the use of 62.5 μm/125 μm and 50 μm/125 μm optical fibers
Minimum Maximum
Transmitter power coupled in
multimode optical fiber
-15.0 dBm
avg
-8.0 dBm
avg
Receiver sensitivity -8.0 dBm
avg
-31.0 dBm
avg
Optical budget 16.0 dB –
Distance 24 km
Laser class 1 as per EN 60825-1/-2 With the use of 9 μm/125 μm optical fibers
Minimum Maximum
Transmitter power coupled in the
singlemode optical fiber
-15.0 dBm
avg
-8.0 dBm
avg
Receiver sensitivity -8.0 dBm
avg
-31.0 dBm
avg
Optical budget 16.0 dB –
USART-AU-2LDFO
Description
Protection-interface module for synchronous or asynchronous operation
with 2 optical interfaces
Product code P1Z239
Figure
4.2.4.7
4.2.4.8
Plug-In Modules
4.2 Communication Modules
170 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-M, Edition 12.2021
