[dw_point_sensor_dimensions, 1, en_US]

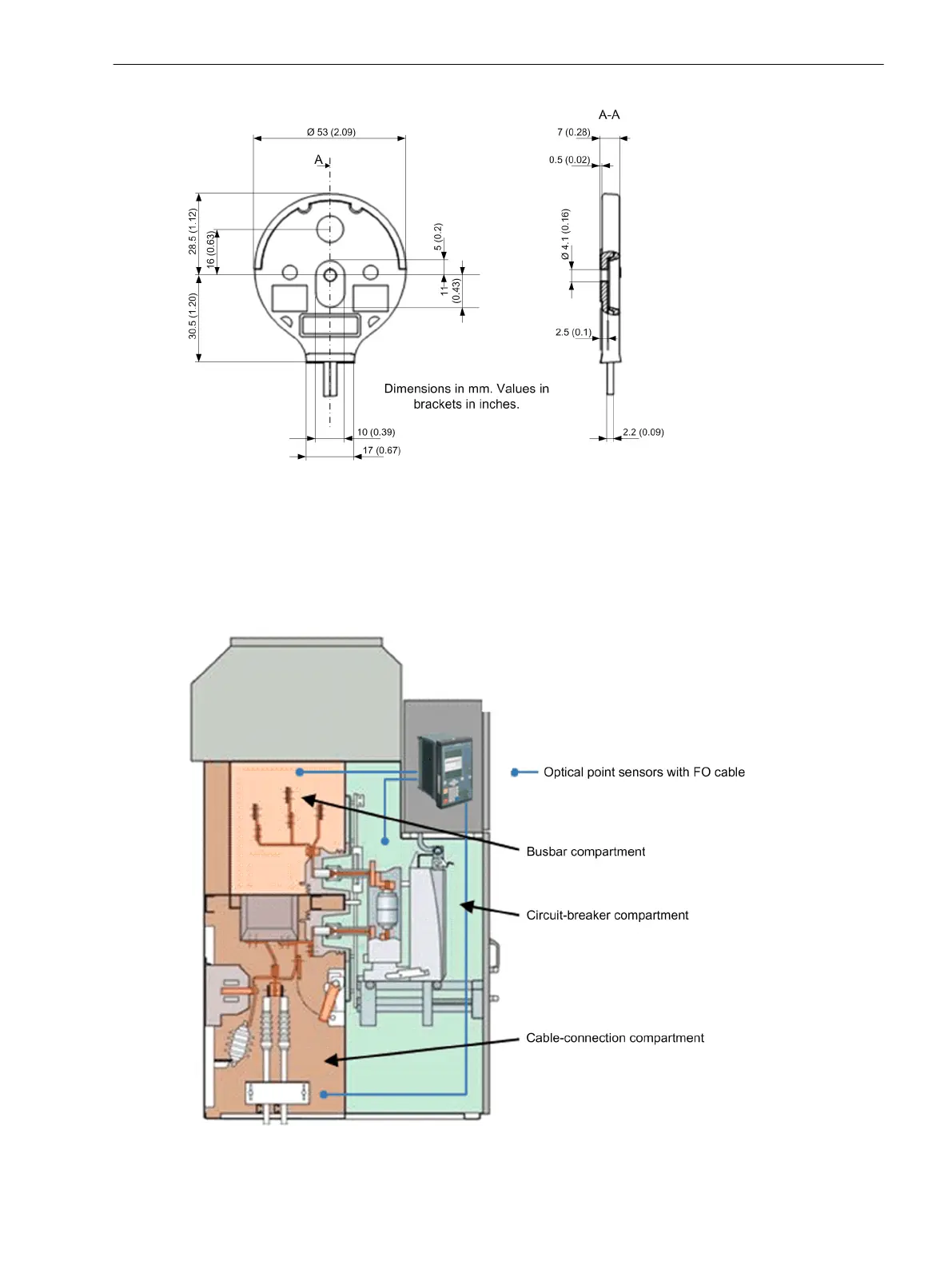

Figure 5-13 Dimensional Drawing of the Point Sensor
The sensitivity of the point sensors with line lengths up to 4 m typically begins at 10 kLux.
Installation
The point sensors are mounted in the different compartments of a control cabinet, see the following figure.
The point sensor detects light in an angle of ± 60°.
[dw_position_sensor, 2, en_US]
Figure 5-14
Mounting Position of the Optical Arc Sensors in the Control Cabinet
5.4.1.2
Working on the Device
5.4 Arc Sensors for Module: ARC-CD-3FO
SIPROTEC 5, Hardware Description, Manual 203
C53000-G5040-C002-M, Edition 12.2021
