Communication Modules
Overview
SIPROTEC devices can be ordered with factory-installed communication modules. The communication modules
can also be installed and replaced in the SIPROTEC devices afterwards. You do not have to open the device for
this.
NOTE
The communication modules available for reordering are not preconfigured. Use DIGSI 5 to carry out the
functional adjustment to the required protocol application.
The communication modules can be installed in the base module or the 1/3 module and in the expansion
module with the plug-in module assembly CB202. A maximum of 2 communication modules each can be
installed. You can use only one CB202 in the device.
The plug-in module assembly CB202 is a printed circuit board assembly with an integrated power supply.
The plug-in module assembly CB202 communicates with the base module via a special connecting cable. This
connecting cable (CAT 5 FTP patch cable) is always included in the scope of delivery of the plug-in module
assembly CB202 or the devices containing the plug-in module assembly CB202 and needs not be ordered
separately.
Ensure that you route the communication lines separately from network circuits.

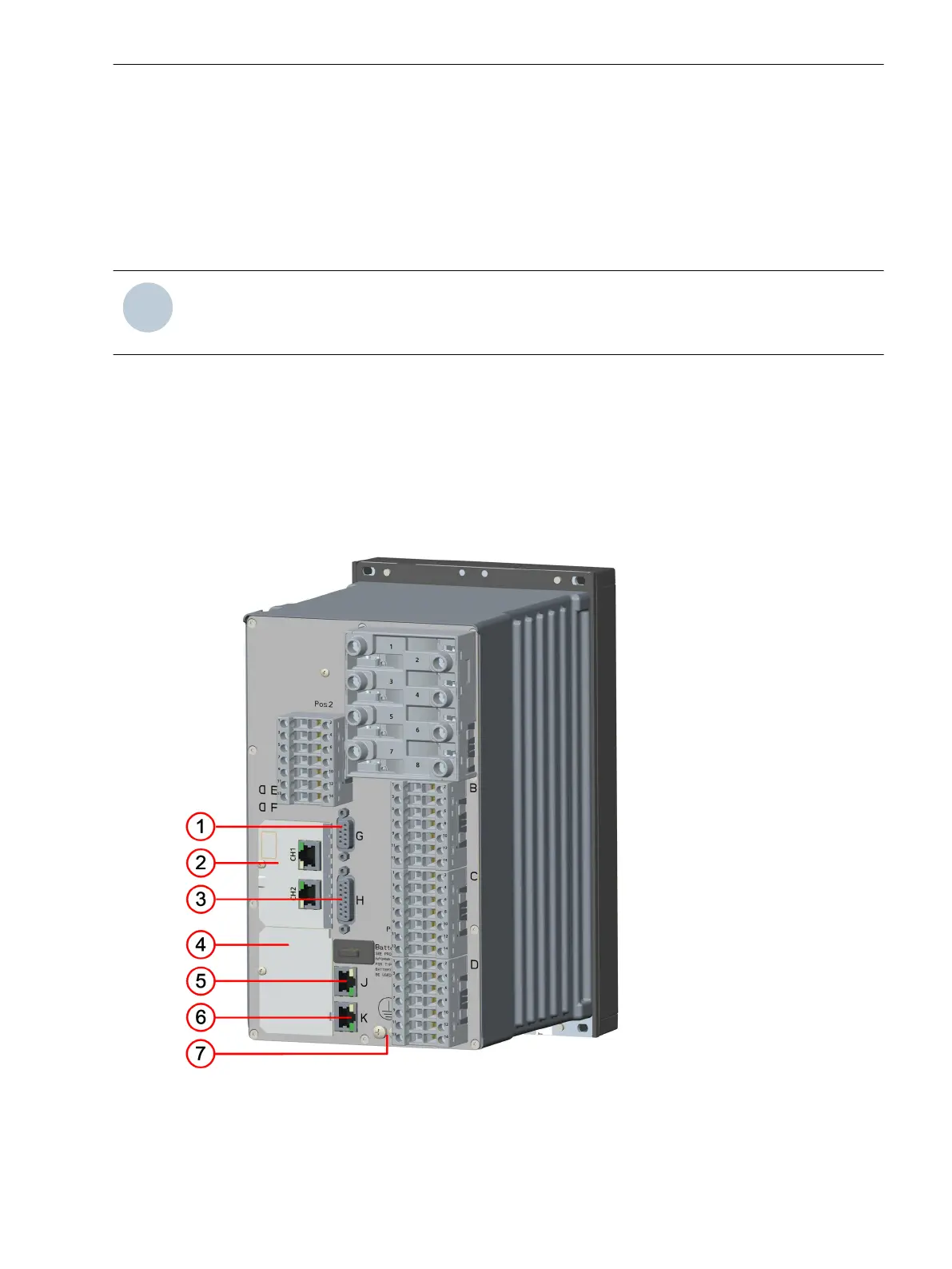

[le_cm201p, 1, --_--]
Figure 4-1
Plug-In Module Positions and Communication Terminals in the Base Module, with Modular
Devices
4.2
4.2.1
Plug-In Modules
4.2 Communication Modules
SIPROTEC 5, Hardware Description, Manual 155
C53000-G5040-C002-M, Edition 12.2021
To Next Page
