[tdio207x-300812-01.tif, 1, en_US]

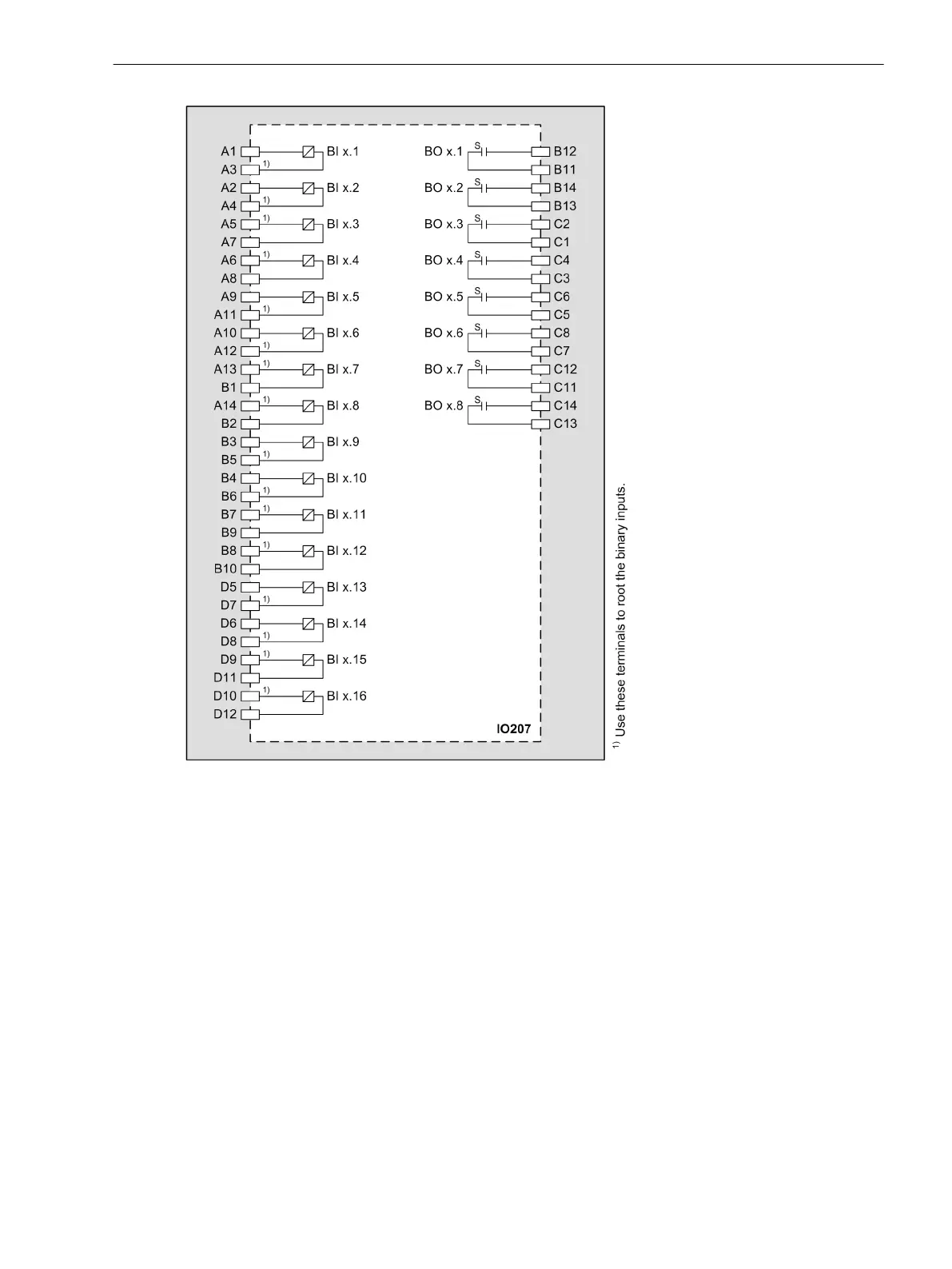

Figure 3-38
IO207 – Connection Diagram
Input and Output Module IO208
Description
The terminals for the following are located on the input and output module IO208:
•
4 current transformers (optionally protection-class current transformers or instrument transformers)
•
4 voltage transformers
•
4 binary inputs
•
11 binary outputs with 3 standard make contacts (type S), 6 high-speed make contacts (type F), and 2
high-speed change-over contacts (type F)
The connections are distributed over:
•
1 x 8-pole current terminal block
•
3 x 14-pole voltage terminal blocks
3.2.9
3.2.9.1
Electronic Modules
3.2 Input and Output Modules of the Modular Devices
SIPROTEC 5, Hardware Description, Manual 83
C53000-G5040-C002-M, Edition 12.2021
