Flush-Mounting Devices
Description
The flush-mounting devices were conceived for installation in 19-inch racks or special openings in control
desks and cabinets. The on-site operation panel is linked permanently to the device.
Base Module
[le_surface_mounting_front, 3, --_--]

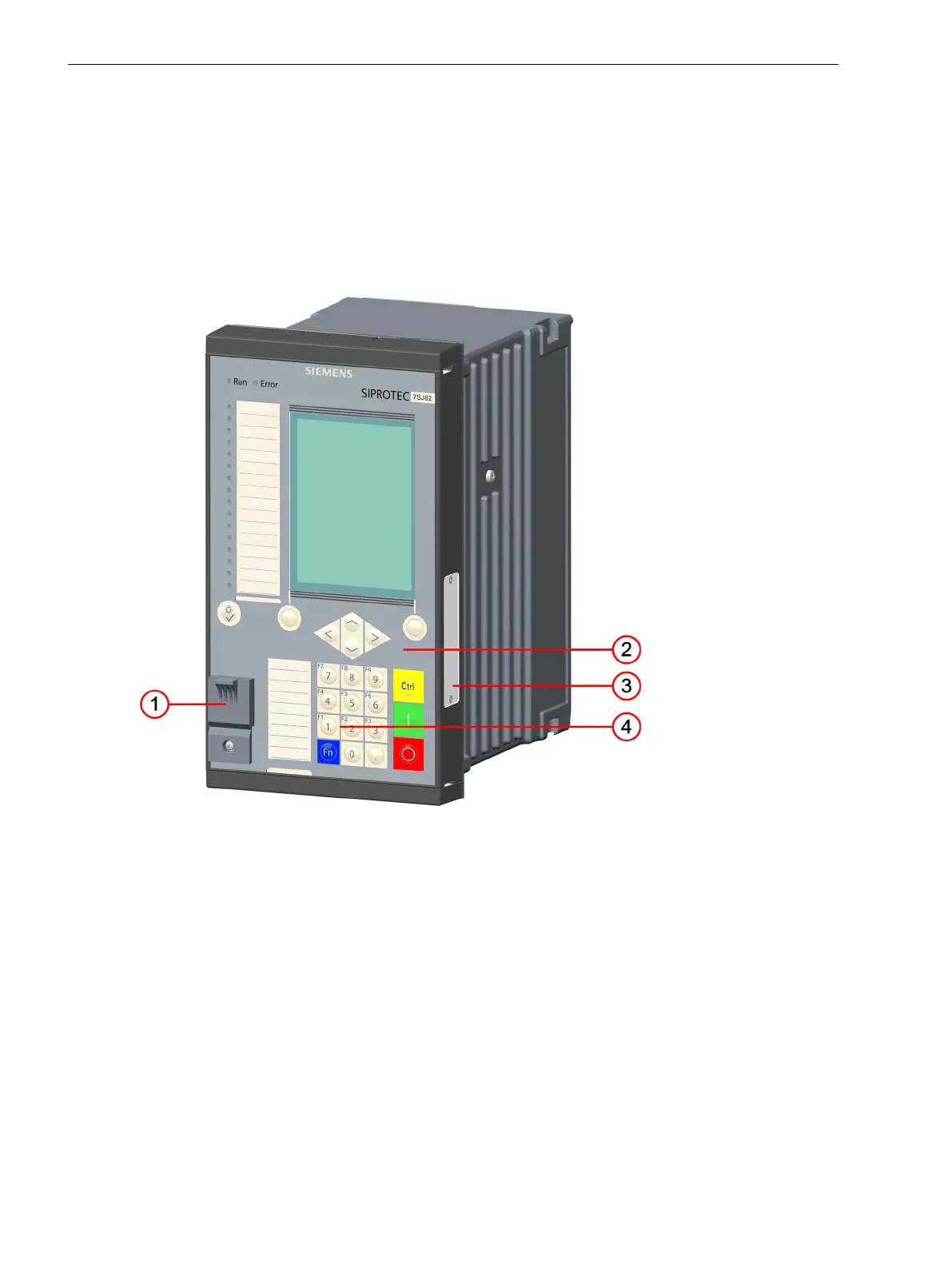

Figure 2-1
Front View – Standard
(1) USB connection, type B
(2) On-site operation panel
(3) Bus terminal for expansion module, only possible for modular devices
(4) Keypad with function keys
2.1
2.1.1
Forms of Devices and On-Site Operation Panels
2.1 Flush-Mounting Devices
20 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-M, Edition 12.2021
