Battery
Description
The battery lies in an externally accessible battery compartment. The battery compartment is located on the
rear of the base module. You need not open the device when replacing the battery.
If the auxiliary voltage fails, the battery ensures continued operation of the internal clock and storage of
certain data (statistical values, values of thermal models) for at least 6 months. Parameterization, logs, and
fault records are always stored in a fail-safe way in a non-volatile memory.
The device cyclically checks the charge of the battery. The Battery fault indication is issued if the actual
voltage falls below the minimum.
[dwbatpos-040211-01.tif, 2, --_--]

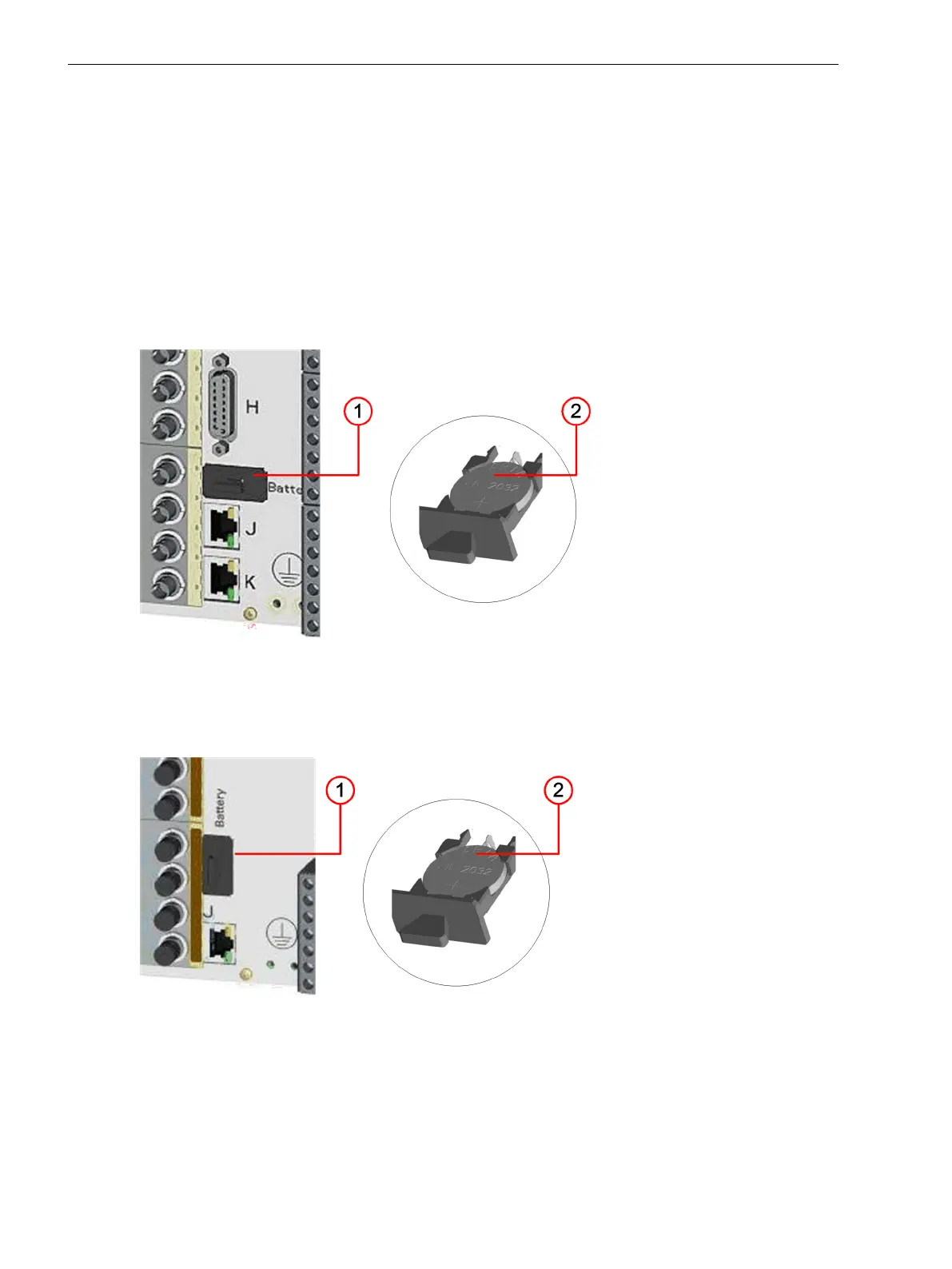

Figure 5-17 Position of the Battery Compartment in the Modular Device
(1) Battery compartment
(2) Battery
[dwbatpo1-240613-01.tif, 2, --_--]
Figure 5-18 Position of the Battery Compartment in the Non-Modular Device (7xx81, 7xx82)
(1) Battery compartment
(2) Battery
5.5
5.5.1
Working on the Device
5.5 Battery
208 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-M, Edition 12.2021
