[sc_IO240 connection seal cage, 2, en_US]

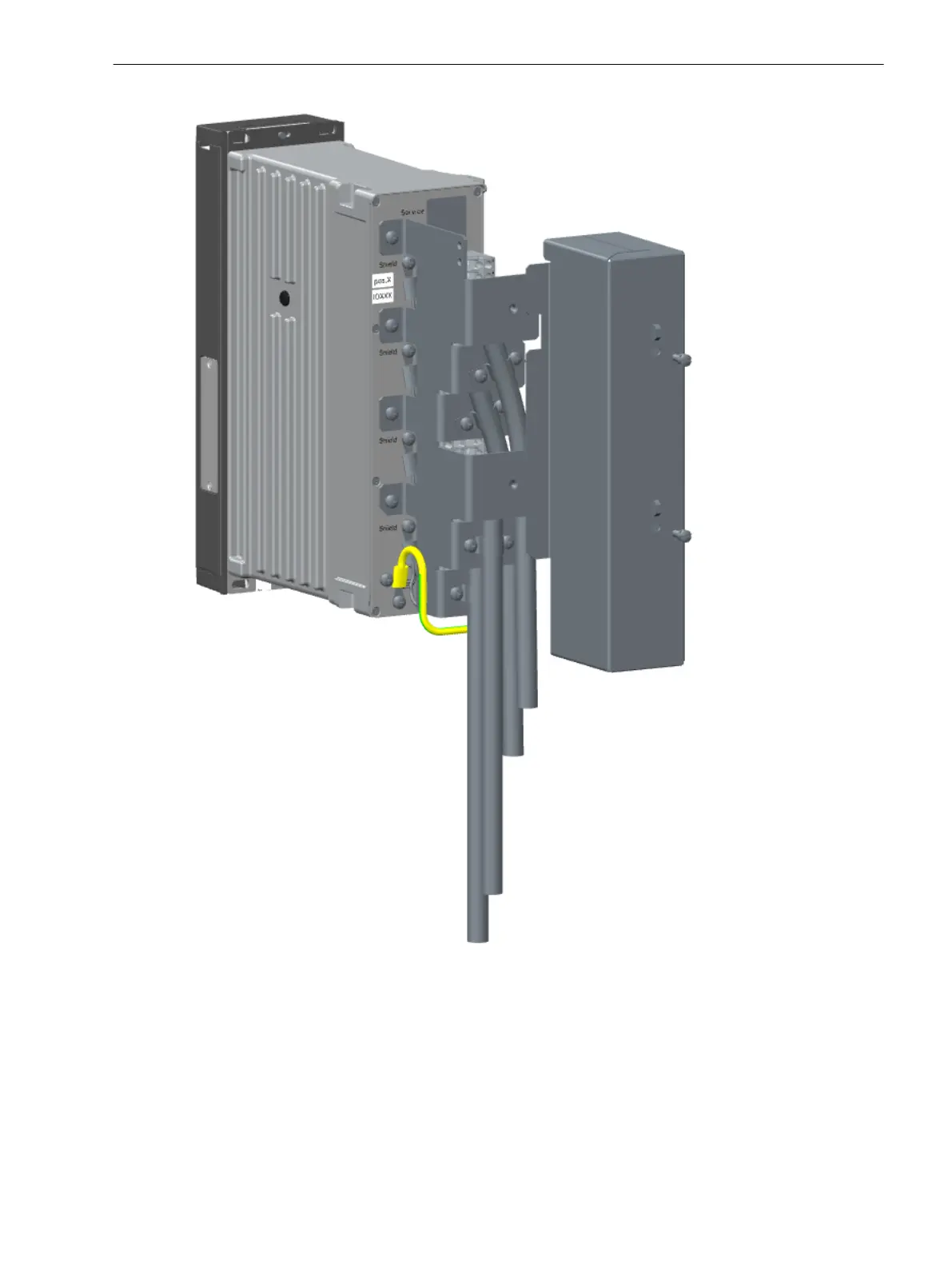

Figure 3-75
Mounting the Shield Cover
Installation of a Microswitch to the Strain-Relief Plate of the IO240 Module
To install a microswitch to the strain-relief plate of the IO240 module, proceed as follows:
²
Assemble the microswitch to the strain-relief plate with the supplied screws and locking nuts (Detail A).
Use a Pozidriv PZ1 screwdriver and a 4-mm wrench with a torque of 0.3 Nm.
²
Connect the cables to the terminals D9 and D10; any polarity can be applied (Detail B).
Use a Pozidriv PZ1 screwdriver with a maximum torque of 1.0 Nm.
3.2.20.4
Electronic Modules
3.2 Input and Output Modules of the Modular Devices
SIPROTEC 5, Hardware Description, Manual 123
C53000-G5040-C002-M, Edition 12.2021
