²
Connect the LPIT module with the module or base unit on the right side of the LPIT module, using the
provided PE cable. If there are additional IO modules, connect them using their PE cables to the upper PE
screw of the LPIT module (torque = 1.6 Nm).

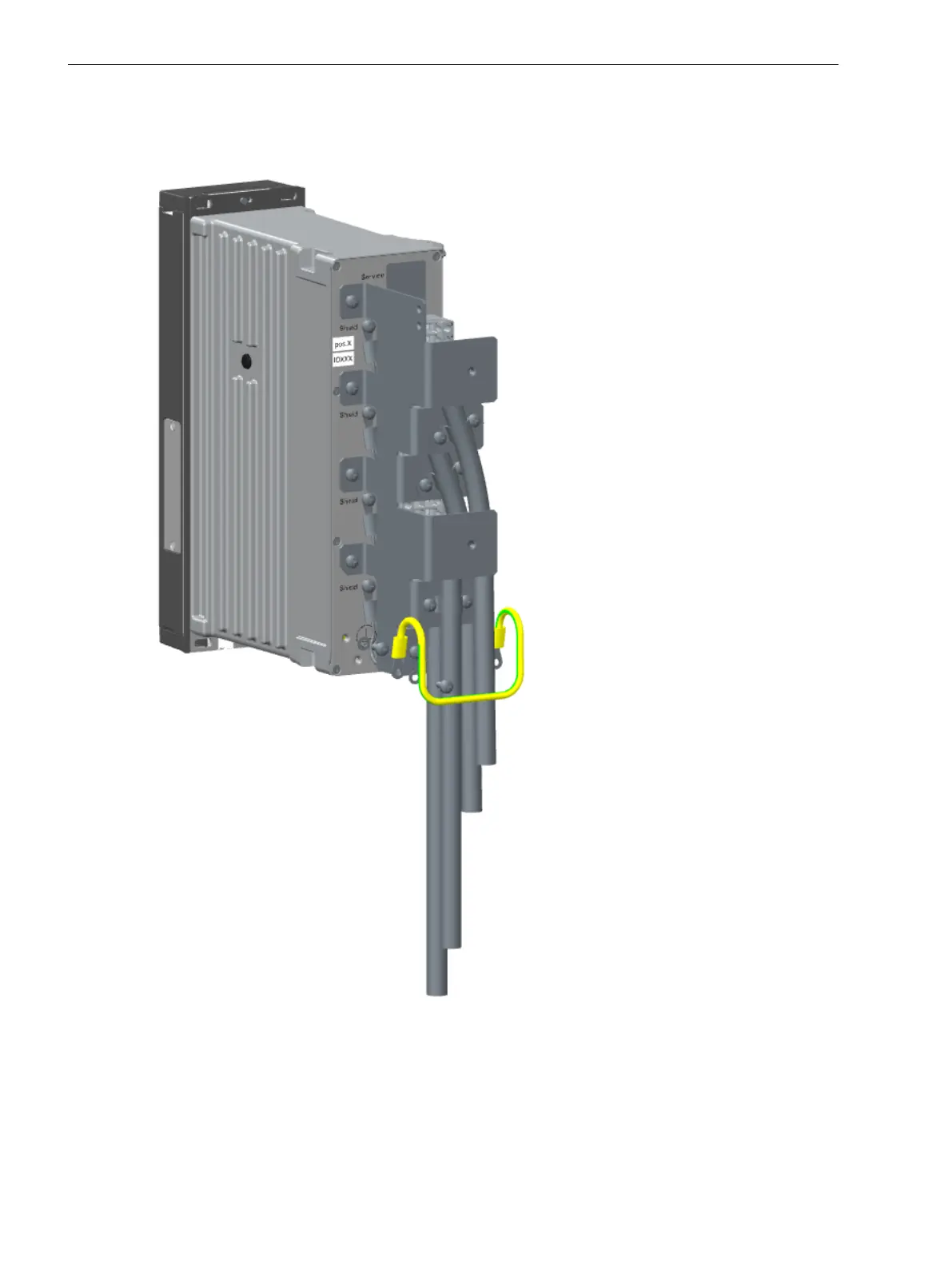

[sc_IO240 connection PE connection, 2, en_US]
Figure 3-74
Connection of PE
²
Mount the shield cover with the supplied slotted capstan screws (torque = 1.2 Nm). To avoid unauthor-
ized access to the terminal connections, the screw provides a hole and the cover provides a lug for
applying a seal.
Electronic Modules
3.2 Input and Output Modules of the Modular Devices
122 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-M, Edition 12.2021
